ISO Bus Air Spring Suspension 1 141 525 / 0392022 CONTITECH 887 M K6 / 887MK6 / 887M K6
ISO Bus Air Spring Suspension 1 141 525 / 0392022 CONTITECH 887 M K6 / 887MK6 / 887M K6
Specifications
Brand Name :
GUOMAT
Model Number :
1 141 525 / 0392022
Certification :
ISO/TS16949
Place of Origin :
Guangdong , China
MOQ :
1pc
Price :
$59-159/pc
Payment Terms :
T/T, Western Union,paypal or others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customer's need
Material :
Rubber Bellows ,Steel Piston
CONTITECH :
887 M K6 / 887MK6 / 887M K6
Other Name :
DAF Suspension Parts Air Spring
FIRESTONE Bellows NO. :
1T15LNR-3
FIRESTONE 2 Number :
W01-M58-8683 / W01 M58 8683 / W01M588683
GOODYEAR :
1R14-702
DAF :
0392022
Description

DAF Suspension Air Spring 1 141 525 / 0392022 CONTITECH 887 M K6 / 887MK6 / 887M K6

OEM Cross Number:

GUOAMT NO.:1T887MK6

CONTITECH 887 M K6 / 887MK6 / 887M K6
FIRESTONE 1T15LNR-3
FIRESTONE W01-M58-8683 / W01 M58 8683 / W01M588683

OEM Suspension Supplier Number:

DAF 1 141 525
VDL / DAF 1 141 525
DAF 0392022

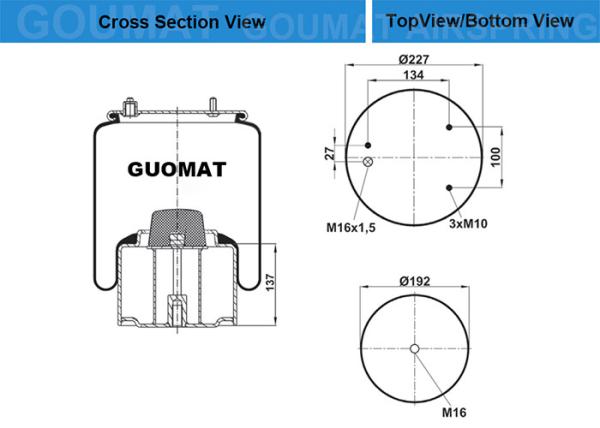

The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT

❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.

❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

❻ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.

❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
