VOL-VO 3130488 Industrial Air Spring ContiTech FD33022313 Cross 2B12-316
VOL-VO 3130488 Industrial Air Spring ContiTech FD33022313 Cross 2B12-316
VOL-VO 3130488 Industrial Air Spring ContiTech FD33022313 Cross 2B12-316
VOL-VO 3130488 Industrial Air Spring ContiTech FD33022313 Cross 2B12-316
VOL-VO 3130488 Industrial Air Spring ContiTech FD33022313 Cross 2B12-316
VOL-VO 3130488 Industrial Air Spring ContiTech FD33022313 Cross 2B12-316
VOL-VO 3130488 Industrial Air Spring ContiTech FD33022313 Cross 2B12-316
VOL-VO 3130488 Industrial Air Spring ContiTech FD33022313 Cross 2B12-316
Specifications
Brand Name :
GUOMAT
Model Number :
FD33022313
Certification :
ISO/TS16949:2009
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Steel cover plate , rubber bellows
Firestone :
W01-358-7400
Goodyear :
2B12-316 / 2B12 316 / 2B12316
Brake & Wheel :
Number: M3506
Assembly Weight: :
14.1 lbs
Operating Temperature :
57Cº to -54Cº
Top Cover Plate Diameter (Width) :
231 mm / 9.00 inches
Rubber Bellows MAX Diameter :
325 mm / 12.9 inches
Description

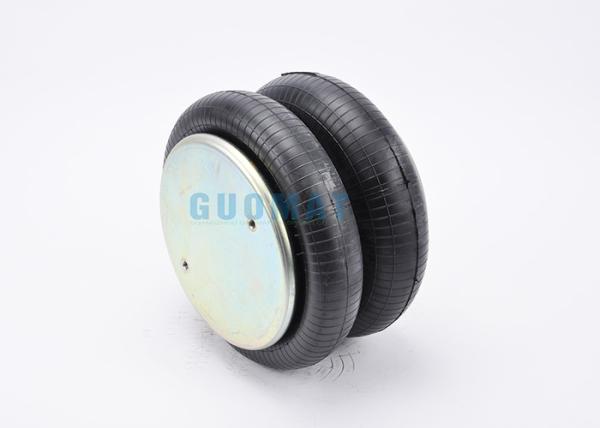

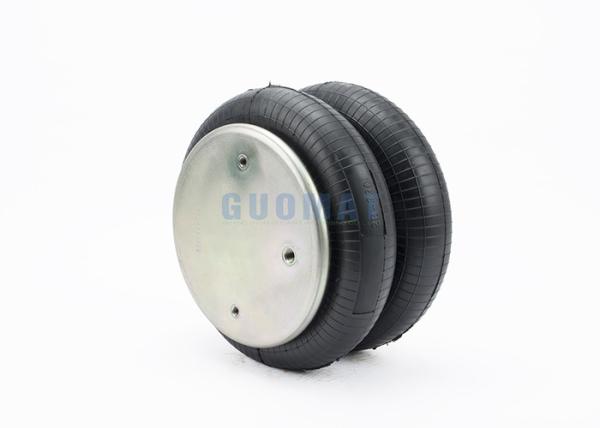

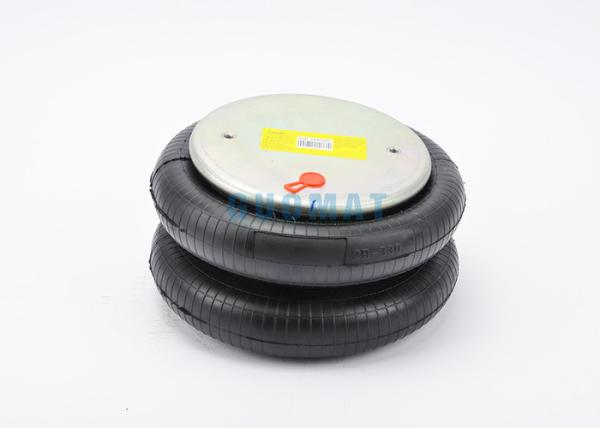

Industrial Air Spring ContiTech FD33022313 Cross 2B12-316 Fits for VOL-VO 3130488

Assembly Weight: 14.1 lbs

Loading Capacity at 20 psig: 1,220 lbsf

Loading Capacity at 60 psig: 3,660 lbsf

Loading Capacity at 90 psig: 5,490 lbsf

Operating Temperature: 57Cº to -54Cº

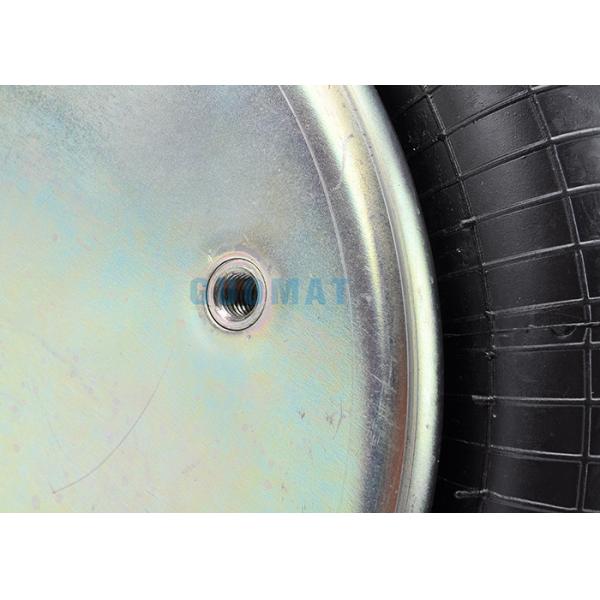

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 157 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPTF

Center Distance Between air inlet and Nut : 73mm

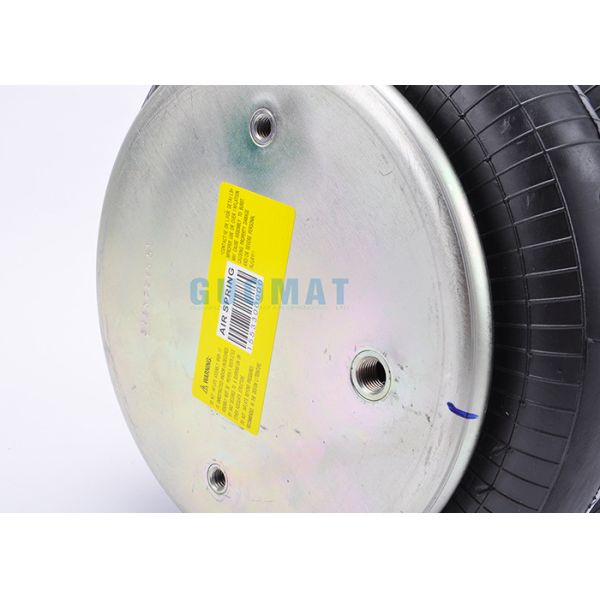

❸ Cover Plate

Top Cover Plate Diameter (Width): 231 mm / 9.00 inches

Bottom Cover Plate Diameter (Width): 231 mm / 9.00 inches

Top Cover Plate Number: 3215

Bottom Cover Plate Number: 3183

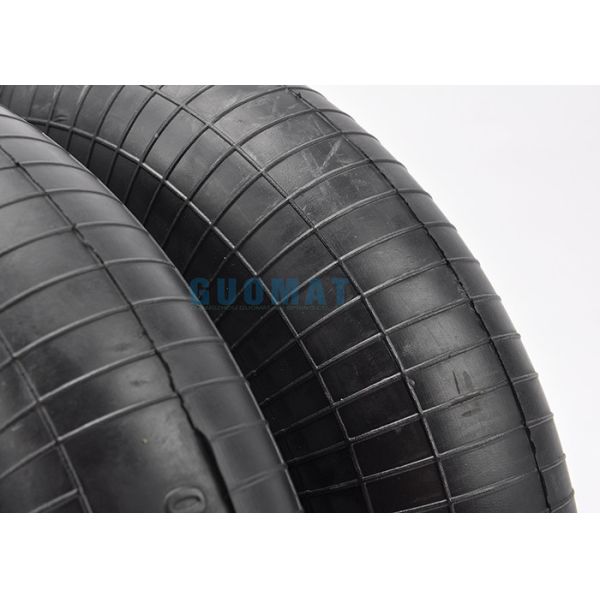

❹Rubber Bellows

Rubber Bellows MAX Diameter : 325 mm / 12.9 inches

Compressed Height: 104 mm / 4.12 inches

Minimum Jounce Height: 104 mm / 4.12 inches

Design Height: 203 mm-241mm / 8-9.5 inches

Maximum Height: 305 mm / 12 inches

Bellows # NO.: 22

Working Stroke : 201 mm / 7.9 inches

❺ Bumper block / Buffer block

With Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Air spring: ContiTech FD33022313 / FD330-22313 FSIP OEM: W014557400
Air spring: Goodyear 578-92-3-309/578923309 / 578 92 3 309 Suspension Supplier: Hendrickson Trailer Number: S1013
Goodyear 2B12-309 / 2B12 309 / 2B12309 Air spring: Vibracoustic Number: VSP2B22R7400
Air spring: Goodyear 2B12-316 / 2B12 316 / 2B12316 Suspension Supplier: Leland Number: SC2020
Air spring: Triangle Reference: 6316 /Number: 4313 Suspension Supplier: Navistar Number: 554788C1
Suspension Supplier: MASA Number: 227002002 Suspension Supplier: Modern Flow Equipment 　
Firestone W01-358-7400 Suspension Supplier: SAF Holland Suspension Number: TC1444 / Number: 90557016
Suspension Supplier: Brake & Wheel Number: M3506 Suspension Supplier: Ridewell Number: 1003587400C
Air spring: Dayton Parts Number: 3547400 Suspension Supplier: SAF Holland Number: 90557018
Suspension Supplier: Fab Tek Number: 40080 Suspension Supplier: SAF Holland Number: TC1444
Suspension Supplier: Fargo Trailer 　 Suspension Supplier: SAF Holland FSIP OEM: W016757403
Suspension Supplier: Freightliner Number: 1610769000 Suspension Supplier: R & S Truck & Body Number: 1027519
Suspension Supplier: Freightliner Number: 1610796000 Holland (Neway) Number:905-57-016
FSIP OEM: W013777400 Suspension Supplier: Scania Number: 670199
Suspension Supplier: GMC Number: 693230 Hendrickson Trailer Number: S-1013
Suspension Supplier: VOL-VO Number: 3130488 Suspension Supplier: Talbert 　
Firestone Bellows Number:22 Suspension Supplier: Tuthill Technology Number: 2726
Suspension Supplier: Watson & Chalin Number: AS0003 /AS-0003 Firestone Trimmed: w013587400

Pictures show the information includes:

Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values

VOL-VO 3130488 Industrial Air Spring ContiTech FD33022313 Cross 2B12-316VOL-VO 3130488 Industrial Air Spring ContiTech FD33022313 Cross 2B12-316VOL-VO 3130488 Industrial Air Spring ContiTech FD33022313 Cross 2B12-316
