Firestone W01-358-9541​​ Truck Air Spring Bag For Kenworth C81-1005 - Airglide 690

Product Information

GUOMAT NO. : 1T9541

VEHICLE TYPE: Truck

POSITION: The Floating Bridge

OEM REFERENCES

FIRESTONE 1T15LA-0 / 1T15LA 0 / 1T15LA0
W01 358 9541 / W01-358-9541 / W013589541
FIRESTONE 1T15KW-0 / 1T15KW 0 / 1T15KW0
W01 358 9541 / W01-358-9541 / W013589541
Top Plate Number:3174
Piston Number:9569
CONTITECH 9 9-10 P 861 / 99-10P861 / 99-10P 861
Contitech 66111
Airtech 137422 / 39541 CPP
Automann AB1DK20H-9541

VEHICLE OEM REFERENCES

KENWORTH C81-1005
Kenworth Number:C81-1005
Kenworth C811005
Airglide 200 05/05/03 or later
Airglide 460
Airglide 690

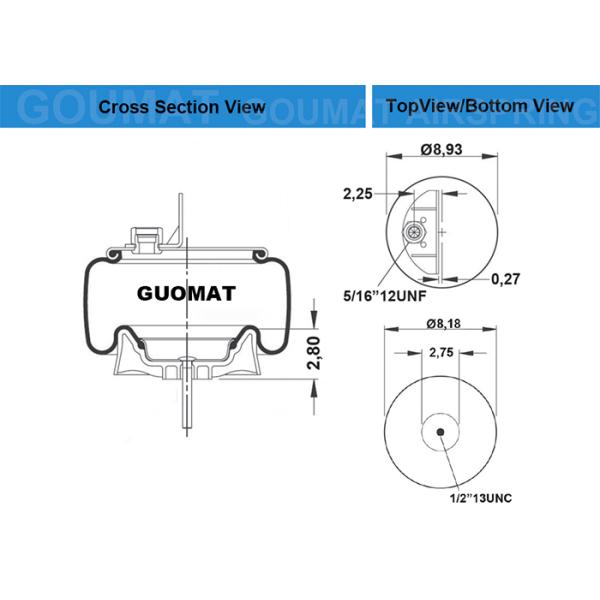

Technical Parameters

Extended Height:11.80
Compressed Height: 6.25
Top Plate Width:9.00
Piston Width:8.18
Assembly Weight: 11.5 lbs
Design Height: 6-7 inches
Minimum Jounce Height: 3.75 inches
Maximum Rebound Height: 11.5 inches
Loading Capacity at 20 psig: 1,320 lbsf
Loading Capacity at 60 psig: 3,960 lbsf
Loading Capacity at 90 psig: 5,940 lbsf
Natural Frequency: Hz
Maximum Diameter: 11.7 inches
Material Type: N/A
Operating Temperature: 57Co to -54Co

ABOUT US...

Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT. Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering quality goods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!

The warranty period of Air Spring

GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.

Our air spring provides high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.

Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
