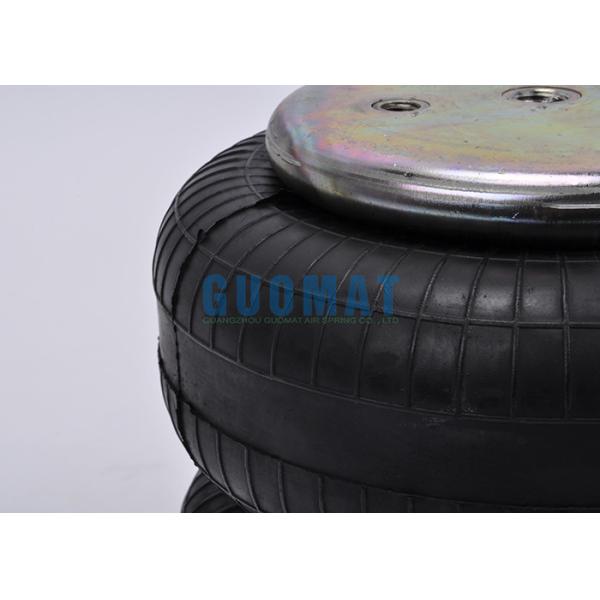

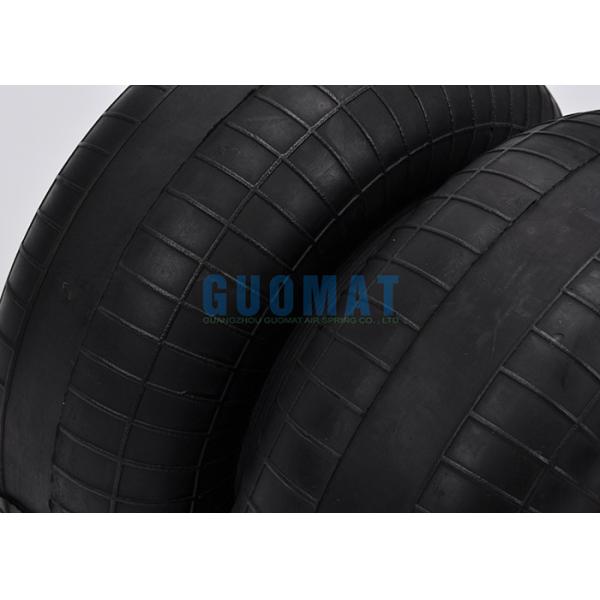

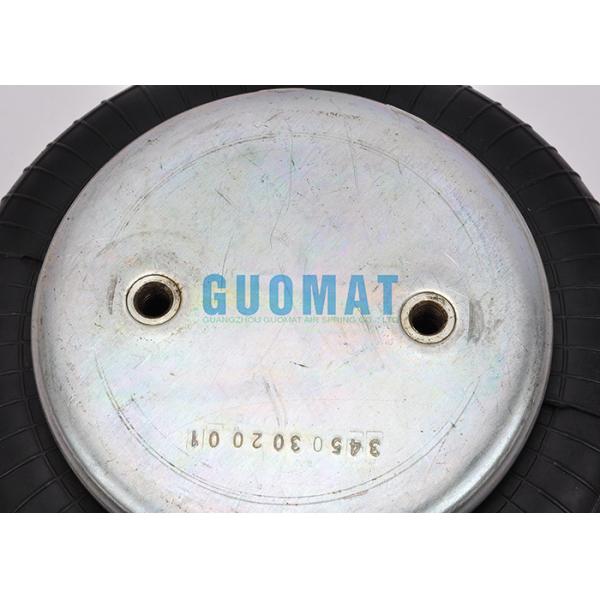

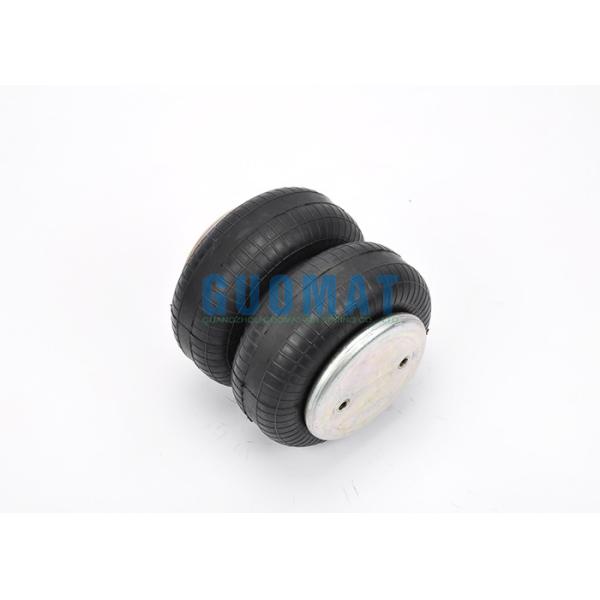

FD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck / Car Suspension Springs
FD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck / Car Suspension Springs
FD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck / Car Suspension Springs
FD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck / Car Suspension Springs
FD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck / Car Suspension Springs
FD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck / Car Suspension Springs
FD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck / Car Suspension Springs
FD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck / Car Suspension Springs
Specifications
Brand Name :
GUOMAT
Model Number :
2B12020
Certification :
ISO/TS16949:2009
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Steel And Rubber
CONTITECH :
FD 120-20
Warranty :
12 Months
Weight :
2.3 kg
Other Name :
Air Springs For Industry
Pressure Ability :
0.2-0.8 M Pa
Air inlet :
1/4 NPT
Order No. :
62448
Description

FD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck Suspension Spring​

OEM Original Equipment Manufacturer:

BELLOW NO. COMPLETE NO. COMPLETE NO.
AIRKRAFT 114050 AIRKRAFT 113067 AIRKRAFT 113068
CONTITECH 603 N CONTITECH FD 120-20 509 FIRESTONE W01-358-7327
FIRESTONE FLEX 26 FIRESTONE W01-358-7325 GOODYEAR 2B8-552
FIRESTONE W01 358 0142 GOODYEAR 2B8-550 　
PIRELLI 26 　 　

Blind nuts, 1/4 NPT WO1-358-7325
Blind nuts, 3/4 NPT WO1-358-7327

bolts, nuts, washers
WO1-358-7333
Rubber bellows only WO1-358-0142

AMERICAN CARRIER 8003006
Mac-k truck TRUCK 227QS32
Mac-k truck TRUCK 57QK1113
AUTOMANN ABSP2B08RA-7325
TRIANGLE 4509
CONTI
CONTI 64601
CONTI FD 120-20 509
FIRESTONE 7325
FIRESTONE W013587325
TRP AS73250
WATSON & CHALIN AS-0030

Type

Order No.

Rubber bellows only

68628

with crimped plates, G1/4 air inlet

A = 0 mm excentrical

62448

with crimped plates, G3/4 air inlet

A = 0 mm excentrical

62055

with stainless steel crimped plates,
G3/4 air inlet

A = 0 mm excentrical

67814

Used in many applications, including:

Lifting equipment,
Airbag press equipment,
Vibrating conveyor air spring,
Vibrating screen equipment air spring,
air hammer
Air spring vibration testing machine
Foundry machinery,
4 d cinema seat air spring,
Air spring press equipment,
Air spring vibration isolation equipment detection platform,
Isolator air spring,
Bus station air spring,
Marble rocking air spring,
Laundry dryer air spring equipment,
Play equipment, air springs,
Carousel air spring,

Vibration isolation – dynamic characteristic values

Design height H: recommended 205mm, minimum 190mm
Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Force (Load) [kN] 4.6 6.2 7.8 9.4 11.1 12.7
Spring rate [N/mm] 65 84 103 120 139 154.1 4.1
Natural frequency [Hz] 1.9 1.8 1.8 1.8 1.8 1.7

Pneumatic application – static characteristic

Force F [kN]
Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Height H [mm] 200 4.65 6.21 7.85 9.57 11.2 12.8 4
160 5.84 7.75 9.75 11.9 13.9 15.8 3.4
120 6.84 9.04 11.3 13.7 16 18 2.5
80 7.34 9.67 12.1 14.7 17.1 19.5 1.7

FD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck / Car Suspension SpringsFD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck / Car Suspension SpringsFD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck / Car Suspension SpringsFD 120-20 CI Double Convolution Air Actuator For Mac-k truck 227QS32 Truck / Car Suspension Springs
