W01-358-7182 Double Convolution Air Actuator Firestone Air Bellow 22 For Industrial Equipment
W01-358-7182 Double Convolution Air Actuator Firestone Air Bellow 22 For Industrial Equipment
W01-358-7182 Double Convolution Air Actuator Firestone Air Bellow 22 For Industrial Equipment
W01-358-7182 Double Convolution Air Actuator Firestone Air Bellow 22 For Industrial Equipment
Specifications
Brand Name :
GUOMAT
Model Number :
2B6330
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$59.9-69.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Warranty :
12 Months
Material :
Rubber + Steel
Spring Type :
Double Convoluted Type Air Spring
Other Name :
Rubber Air Actuator
Firestone Style :
22
Max.OD :
325mm
Air Hole :
1/4NPTF
Package :
Standard Packing or Customized
Description

Factory Price Double Convolution Air Actuator W01-358-7182 Firestone Air Bellow 22 For Industrial Equipment

Product Description

Brand: GUOMAT

Model Number: 2B6330

Loading Range: 50-4000KG

Material: Rubber+Aluminum Alloy/Steel

Warranty: 12 Months

Application: Vibrating Screen,Packing Machine

Original Equipment Manufacturer Number

Firestone Bellow Number 22

Firestone OEM Number W01-358-7180,WO1-358-7180

Firestone OEM Number W01 358 7180,WO1 358 7180

Firestone OEM Number W013587180,WO13587180

Goodyear Bellow Number 578923309,578 92 3 309,578-92-3-309

Goodyear OEM Number 2B12-425,2B 12-425

Goodyear OEM Number 2B12-311,2B 12-311

Contitech OEM Number FD330-22 363,FD 330-22 363

Triangle OEM Number 6316

Triangle OEM Number 4363

Airkraft OEM Number 115061

Airkraft OEM Number 3B-356,3B 356

Vibracoustic VSP2B22R7180,EI Ride 8030190,Kwiklok/Todco(Jifflox)

Leland Sc2075,Navistar 1685179C1,Hendrickson 1VA1816,Talbert

Ridewell 1003587180C,SAF Holland 57007180,Watson&Chalinl AS01541G

Watson&Chalinl 01881F,Peerless 055000001,Peerless 0550-00001

GUOMAT 2B6330 Double Convoluted Industrial Air Spring Technical Data

Top Bead Plate Diameter: Ø231mm

Bottom Bead Plate Diameter: Ø231mm

Air Fitting Hole: 1/4NPTF

Blind Nut on Top Bead Plate: 2X3/8-16UNC

Center Distance Between Blind Nuts: 157mm

Distance Between Blind Nuts and Air Fitting Hole: 73mm

Blind Nut on Bottom Bead Plate: 2X3/8-16UNC

Rubber Bellows Max.Outer Diameter: Ø325mm

Maximum Extended Height: 305mm
Minimum Compression Height: 81mm

The Stroke: 81mm-305mm

Girdle Hoop: Without

22 Style Firestone Bellow Air Spring

Bellow NO.

Firestone NO.

22

W01-358-7180/WO1-358-7180

22

W01-358-7181/WO1-358-7181

22

W01-358-7183/WO1-358-7183

22

W01-358-7185/WO1-358-7185

22

W01-358-7344/WO1-358-7344

22

W01-358-7400/WO1-358-7400

22

W01-358-7401/WO1-358-7401

22

W01-358-7403/WO1-358-7403

22

W01-358-7404/WO1-358-7404

22

W01-358-7405/WO1-358-7405

22

W01-358-7406/WO1-358-7406

22

W01-358-7409/WO1-358-7409

22

W01-358-7410/WO1-358-7410

22

W01-358-7423/WO1-358-7423

22

W01-358-7424/WO1-358-7424

22

W01-358-7429/WO1-358-7429

22

W01-358-7437/WO1-358-7437

Why Choose GUOMAT Air Spring
1. Excellent shock absorption ability
2. Effectively reduce noise
3. Precise height control
4. Wide range of sizes
5. The installation height is compact
6. Extend equipment life
7. Stable shock absorption effect
8. Wide range of uses (machinery equipment, vehicle suspension, lifting)

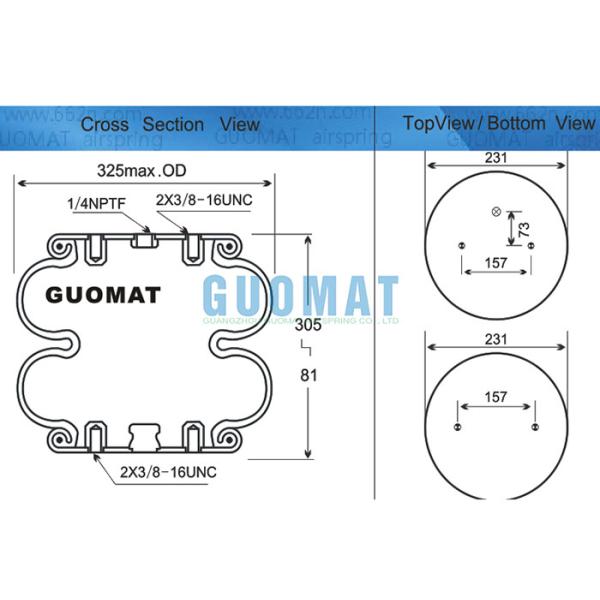

The Drawing of GUOMAT 2B6330 Industrial Air Spring Bag
