Contitech Double Convoluted Air Spring FD 120-17 CI G3/4 2B-181 Air Bag For Industrial Equipment
Contitech Double Convoluted Air Spring FD 120-17 CI G3/4 2B-181 Air Bag For Industrial Equipment
Contitech Double Convoluted Air Spring FD 120-17 CI G3/4 2B-181 Air Bag For Industrial Equipment
Contitech Double Convoluted Air Spring FD 120-17 CI G3/4 2B-181 Air Bag For Industrial Equipment
Contitech Double Convoluted Air Spring FD 120-17 CI G3/4 2B-181 Air Bag For Industrial Equipment
Contitech Double Convoluted Air Spring FD 120-17 CI G3/4 2B-181 Air Bag For Industrial Equipment
Contitech Double Convoluted Air Spring FD 120-17 CI G3/4 2B-181 Air Bag For Industrial Equipment
Contitech Double Convoluted Air Spring FD 120-17 CI G3/4 2B-181 Air Bag For Industrial Equipment
Specifications
Brand Name :
GUOMAT
Model Number :
2B12017-G3/4
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$59.9-69.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Material :
Rubber Bellow and Aluminum Cover
Warranty :
1 Year Warranty
Function :
Reduce Shock
Quality :
100 % Tested
Cross Number :
113053
Net Weight :
2.5KG
Packing Size :
24*24*24(cm)
Natural Height :
167mm
Description

Contitech Double Convoluted Air Spring FD 120-17 CI G3/4 2B-181 Air Bag For Industrial Equipment

Product Description

Manufacturer

GUOMAT

Model Number

2B12017-G3/4

OEM Number

Contitech Part Number: FD120-17

Contitech Part Number: FD 120-17

Contitech Part Number: FD120-17 CI

Contitech Part Number: FD 120-17 CI

Contitech Part Number: FD120-17 CI G3/4

Contitech Part Number: FD 120-17 CI G3/4

Airkraft Part Number: 113053
Airkraft Part Number: 2B-181
Airkraft Part Number: 2B 181

Model Number

2B12017-G1/4

OEM Number

Firestone Number: W01-M58-6353

Firestone Number: W01 M58 6353

Firestone Number: W01M586353

Firestone Number: WO1-M58-6353

Firestone Number: WO1 M58 6353

Firestone Number: WO1M586353

Contitech Number: FD120-17

Contitech Number: FD120-17 CI

Contitech Number: FD120-17 CI G1/4

Contitech Number: FD120-17 CI G1/4 M8
Airkraft Number: 113054
Airkraft Number: 2B181
Airkraft Number: 2B 181

Model Number

2B12017-G3/8

OEM Number

Continental Contitech Air Bellows: FD120-17 CI G3/8 M8

Continental Contitech Air Bellows: FD 120-17 CI G3/8 M8

Model Number

2B12017-RC3/8

OEM Number

Continental Contitech Air Bellows: FD120-17 CI RC3/8 M8

Continental Contitech Air Bellows: FD 120-17 CI RC3/8 M8

GUOMAT 2B12017 Rubber Air Spring Technical Data

Nut/Blind Nut

Top Cover Plate Screw (Nut) Tooth

2 pices M8X1.25

Screw and Air Inlet Distance of Top Cover Plate

70mm/27.6in

Bottom Cover Plate Screw (Nut) Tooth

2 pices M8X1.25

Screw Center Distance of Bottom Cover Plate

70mm/27.6in

Gas Hole / Air inlet / Air Fitting

①Gas Hole / Air Inlet

G3/4

②Gas Hole / Air Inlet

G1/4

③Gas Hole / Air Inlet

G3/8

④Gas Hole / Air Inlet

RC3/8

Cover Plate

Top Cover Plate Diameter

Ø135mm/53.1in

Bottom Cover Plate Diameter

Ø135mm//53.1in

Rubber Bellow

Rubber Bellows MAX Diameter

Ø215mm/84.6in

Natural Height

167mm/65.7in

The Working Stroke

MAX 230mm to MIN 75 mm

Maximum Height

230mm

Minimum Height

75mm

Compression Height

155mm

5 Reasons to Choose GUOMAT

1, Complete product specifications
We have produced more than 500 product models and specifications, which can be customized for production, a large number of spot stocks, and short delivery time

2 ,Has strong production strength
It has 20,000 square meters of production and office space, with an annual output of 300,000 air springs and more than 50,000 air compressors. Product production standard workshop, formal testing equipment and scientific and effective quality testing process

3, The product quality is good
Crafted from high-quality materials

4, Marketing and sales support
Manufacturer professional sales team

5, Product Service
1 year warranty
If you have any questions after receiving the goods, please contact us in time

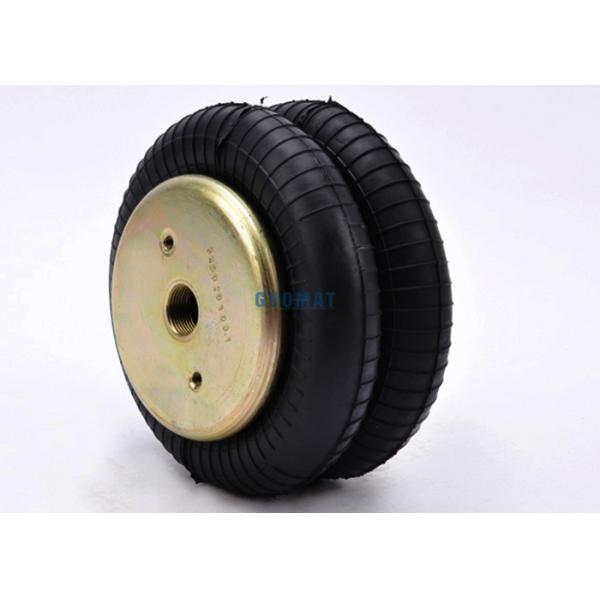

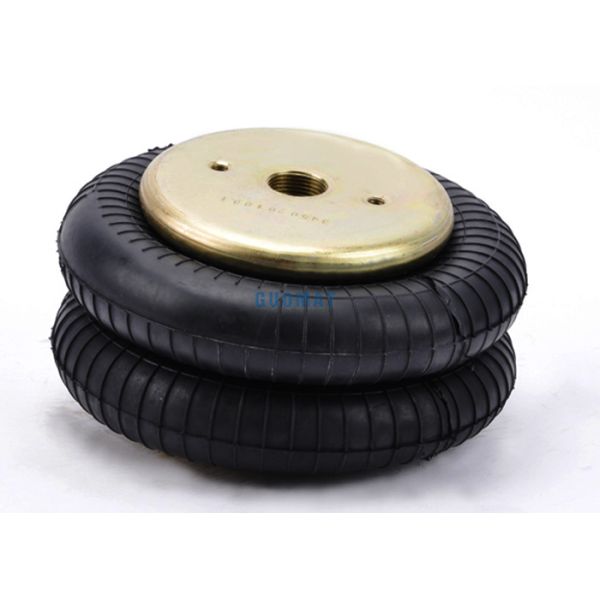

The Real Pictures

Contitech Double Convoluted Air Spring FD 120-17 CI G3/4 2B-181 Air Bag For Industrial EquipmentContitech Double Convoluted Air Spring FD 120-17 CI G3/4 2B-181 Air Bag For Industrial Equipment
