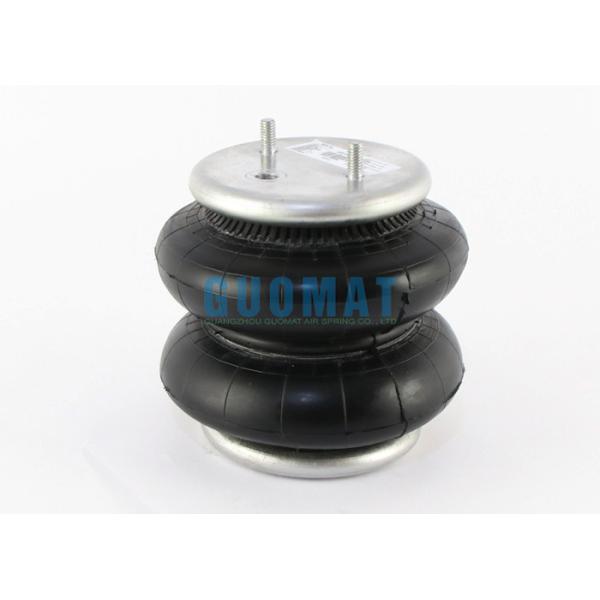

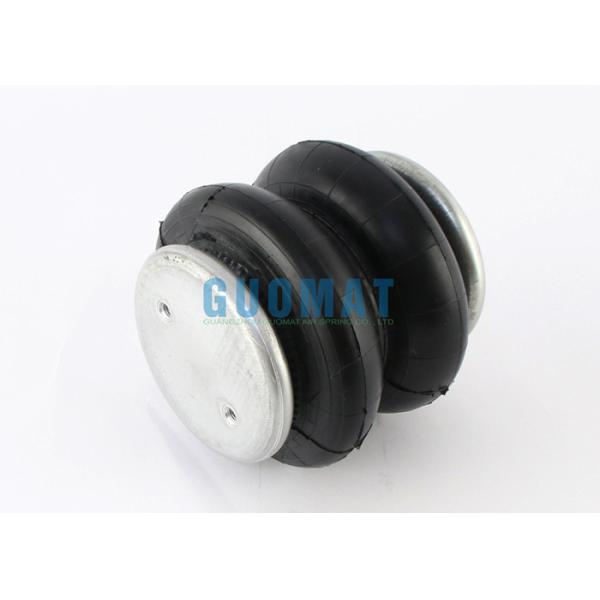

Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits
Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits
Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits
Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits
Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits
Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits
Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits
Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits
Specifications
Brand Name :
GUOMAT
Model Number :
2B0335
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$59.9-69.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Product Type :
Truck Suspension Spring
Material :
Rubber Bellow and Aluminum Cover
Warranty :
1 Year Warranty
Function :
Reduce Shock
Quality :
100 % Tested
MOQ :
10 Pcs
Sample :
Accept
Price Term :
FOB,EXW,CNF,CIF
Description

Double Convoluted Truck Air Spring A01-760-0335 Firestone Air Ride Rubber Air Bag Kits

Product Description

Product Type: Air Spring,Air Bag

Truck Model: Heavy Duty Truck

Material: Steel + Rubber

Warranty: 12 Months

Color: Black
Place of Origin: Guangzhou,China
Certification: ISO/TS16949:2009
Packing: Neutral Packing
Quality: High-Quality
Position: Auto/Truck parts
Application: Truck Suspension Systems

OEM Reference Number

GUOMAT

2B0335

Firestone

A01-760-0335

Firestone

A01 760 0335

Firestone

A017600335
WATSON & CHALIN AS-0092
Contitech FD200-19 510
Contitech FD 200-19 510

GUOMAT 2B0335 Air Spring Technical Data

Working temperature

-40°C bis +70°C

Failure testing

≥3 millions

Top Cover Plate Diameter

Ø132mm

Bottom Cover Plate Diameter

Ø132mm

Gas Hole / Air inlet

3/8NPT

Rubber Bellows MAX Diameter

Ø203mm

The Working Stroke

MAX 1230 mm to MIN 75 mm

Top Cover Plate Screw (Nut) Tooth

2X3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth

2X3/8-16UNC

Screw Center Distance of Top Cover Plate

Ø70mm

Distance Between Screw and Air Hole

Ø33mm

Screw Center Distance of Bottom Cover Plate

Ø70mm

Our Advantage
1. Wide product range (truck, bus, truck seat, industrial equipment and car suspension)
2. Accept sample order, we can also make air spring according to drawing
3. Affordable, safe and efficient logistics services
4. Flexible payment methods
5. One year guaranteed warranty

GUOMAT Double Convoluted Rubber Air Spring

GUOMAT No Outer Diameter (mm) Max.Height (mm) Min.Height (mm) Firestone No.
2B6926 Max.251 260 75 W01-358-6926
2B6884 Max.251 274 81 W01-358-6884
2B6890 Max.251 274 81 W01358-6890
2B5243 Max.251 274 95 W01-358-6897
2B6900 Max.251 260 75 W01-358-6900
2B6902 Max.251 274 95 W01-358-6902
2B6905 Max.251.5 274 95 W01-358-6905
2B6908 Max.251 274 81 W01-358-6908
2B6910 Max.251 260 75 W01-358-6910
2B6926 Max.251 274 95 W01-358-6926
2B6932 Max.251 274 95 W01-358-6932
2B6935 Max.251 274 95 W01-358-6935
2B6940 Max.251 274 81 W01-358-6940
2B6941 Max.251 274 81 W01-358-6941
2B6949 Max.251 274 95 W01-358-6949
2B7788 Max.251.5 274 95 W01-358-7788
2B7795 Max.251 274 81 W01-358-7795
2B7892 Max.251 274 81 W01-358-7892
