2B9-250 Goodyear Flexmember 578-92-3-206 Double Convoluted Air Bags Rubber
2B9-250 Goodyear Flexmember 578-92-3-206 Double Convoluted Air Bags Rubber
2B9-250 Goodyear Flexmember 578-92-3-206 Double Convoluted Air Bags Rubber
2B9-250 Goodyear Flexmember 578-92-3-206 Double Convoluted Air Bags Rubber
2B9-250 Goodyear Flexmember 578-92-3-206 Double Convoluted Air Bags Rubber
2B9-250 Goodyear Flexmember 578-92-3-206 Double Convoluted Air Bags Rubber
2B9-250 Goodyear Flexmember 578-92-3-206 Double Convoluted Air Bags Rubber
2B9-250 Goodyear Flexmember 578-92-3-206 Double Convoluted Air Bags Rubber
Specifications
Brand Name :
GUOMAT
Model Number :
2B9-250
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$99.9-159.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Product Name :
Goodyear Bellows Air Spring
Warranty :
12 Months
Material :
Rubber + Iron
Origin :
Mexico
Brand :
GOODYEAR
P/N :
2B9-250
MOQ :
10 Pieces
Flexmember :
578-92-3-206
Description

2B9-250 Goodyear Bellows Air Spring Flexmember 578-92-3-206 Rubber Double Convoluted Air Bags

Product Description

Model Number: 2B9-250
Manufacturer: By GOODYEAR

Goodyear Spare Part Number 2B9250
Goodyear Spare Part Number 2B9-250
Goodyear Spare Part Number 2B 9-250
Goodyear Spare Part Number 2B9 250
Goodyear Spare Part Number 2B 9 250
Goodyear Flexmenber Number 578923206
Goodyear Flexmenber Number 578 92 3 206
Goodyear Flexmenber Number 578-92-3-206

Manufacturer Number/Cross References
CONTI/Contitech Number 64549
CONTI/Contitech Number FD200-25
CONTI/Contitech Number FD 200-25
CONTI/Contitech Number FD200-25 426
CONTI/Contitech Number FD 200-25 426
CONTI/Contitech Number FD200-25426
CONTI/Contitech Number FD 200-25426
FIRESTONE/Firestone Number 6943
FIRESTONE/Firestone Number W013586943
FIRESTONE/Firestone Number W01 358 6943
FIRESTONE/Firestone Number W01-358-6943
FIRESTONE/Firestone Number WO13586943
FIRESTONE/Firestone Number WO1 358 6943
FIRESTONE/Firestone Number WO1-358-6943
AUTOMANN/Automann Number ABSP2B12RA-6943
LOAD GUARD/Load Guard Number SC2122
SUSPENSIONS INC./Suspension Inc. Number 200835
TRIANGLE/Triangle Number 4426
TRP/Trp Number AS69430
WATSON&CHALIN/Watson&Chalin Number AS-0041
NEWAY/Neway Number 905-57-237
BATCO/Batco Number 10-96943

2B9-250 Goodyear Air Spring Technical Data
Top Plate Diameter: 6.40 in
Top Plate Hole/Stud: 3
Air Fitting: 1/4 NPTF
Bolt/Stud: 1/2-13 or 1/2-20
Center distance Between Bolt/Stud and Air Hole: 1.75 in
The Distance Between the Bolts/Studs: 3.50 in
Bottom Plate Diameter: 6.40 in
Bottom Plate Hole/Stud: 2
Max.Height: 12.2 in
Min.Height: 3.5 in
Piston: —
Piston Type: —

How to Maintain Goodyear Air Springs
To maintain Goodyear Air Springs, regular inspections and maintenance should be performed. Here are some general maintenance tips for air springs:

1 Inspect the air spring and mounting hardware for damage or wear regularly. Replace any damaged parts as needed.
2 Check the air pressure, and adjust it as needed to maintain the correct ride height and load-carrying capacity.
3 Lubricate the air spring bellows, piston, and mounting plates as specified in the manufacturer's instructions.
4 Check the airline and fittings for leaks, and repair or replace as needed.
5 Inspect the shock absorbers and replace as necessary.


Our Package & Shipping Terms
Package: Carton/According to customer requirement
Shipping: Huangpu Port, Qingdao Port, Shenzhen Port, Shanghai Port
Payment Term: L/C, T/T, Western Union, PayPal
Delivery Time: About 3-10 working days after receive your payment
Transportation Method: By Air,By Rail Transport,By Sea,By Express(FedEx,DHL,UPS,EMS,TNT)

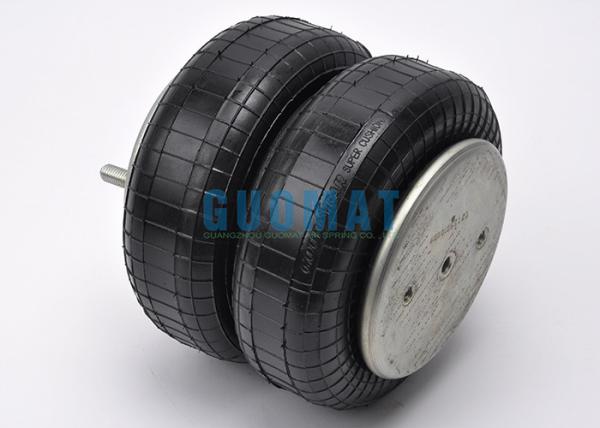

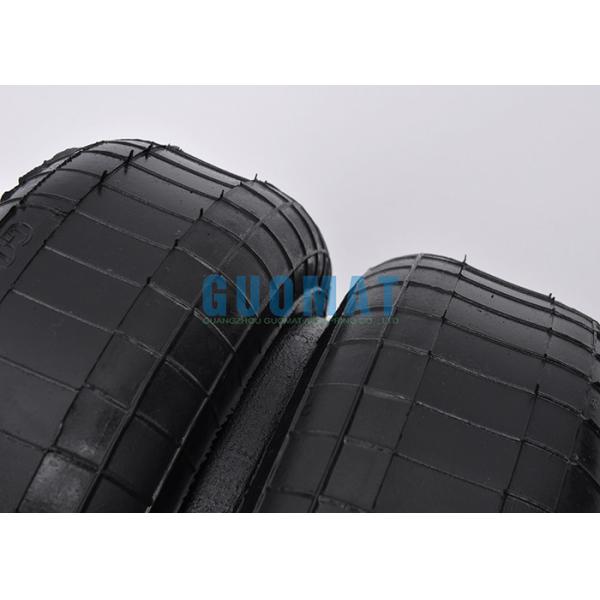

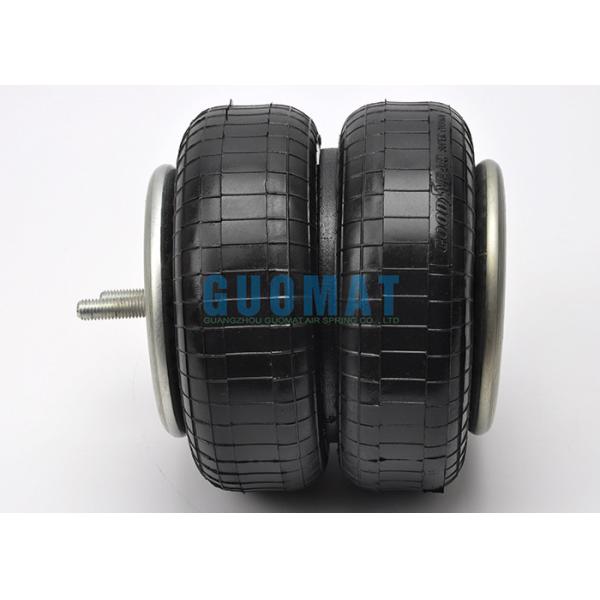

2B9-250 Goodyear Rubber Air Spring Real Pictures
2B9-250 Goodyear Flexmember 578-92-3-206 Double Convoluted Air Bags Rubber2B9-250 Goodyear Flexmember 578-92-3-206 Double Convoluted Air Bags Rubber
