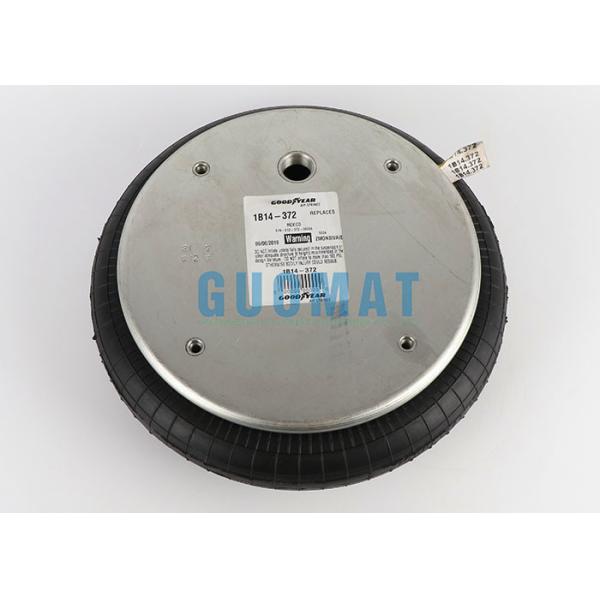

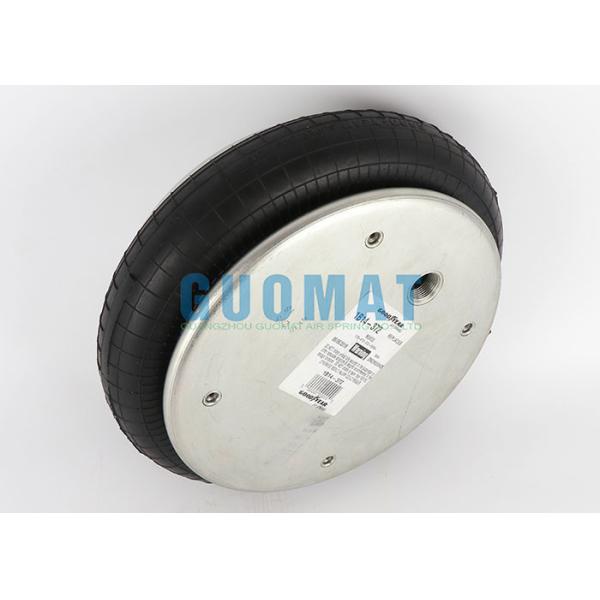

Aluminum Plate Air Spring Isolator 1B14-372 Original Goodyear Single Convoluted Industrial Air Bag

Product Description

Original Manufacturer: GOODYEAR

Country of Origin: Mexico

Goodyear Number: 1B14-372

Goodyear Number: 1B 14-372

Goodyear Number: 1B14 372

Goodyear Number: 1B 14372

Goodyear Flexmember: 578913351

Goodyear Flexmember: 578-91-3-351

Goodyear Flexmember: 578 91 3 351

Goodyear Inventory: 86

Cross Reference Number

Enidine YI-1B14-372

Enidine YI 1B14-372

Contitech FS530-14 CI G3/4

Contitech FS 530-14 CI G3/4

Contitech Order No. 61360

Firestone W01M586369

Firestone W01 M58 6369

Firestone W01-M58-6369

Firstone Style 113-1

Firstone New Style 113B-1

How to Store Goodyear Air Spring
To store Goodyear air springs, it is important to follow the manufacturer's recommendations and take proper care to ensure their longevity and reliability. Here are some general guidelines for storing air springs:

• Clean the air springs thoroughly before storing them. This includes removing any dirt or debris and wiping them down with a damp cloth.
• Store the air springs in a dry, cool place where the temperature remains consistent throughout the year. This will help prevent moisture buildup and protect them from extreme temperatures.
• If possible, store the air springs in their original packaging or in a protective cover to shield them from dust, dirt, and other environmental factors.
• Avoid stacking or placing heavy objects on top of the air springs, as this can cause damage to the rubber and metal components.
• If storing air springs for an extended period of time, it is recommended to inflate them to around 50% of their maximum capacity and check the pressure periodically to ensure they maintain their shape and function properly.

​Single Convoluted Contitech Air Spring

Air Fitting Hole: A tapped hole providing air entrance for the part.
Blind Nut (Threaded Hole): A permanent part of the bead plate assembly providing an alternative mounting system to the Stud.

Bead Plate (Top Plate): Permanently crimped onto the bellows, diaphragm during manufacture.

Bellows: The heart of the airspring. Includes at least four ply, or layers of material - an inner layer, two ply of cord reinforced fabric and an outer layer.

Girdle Hoop (Centre Ring): A ring between the convolutions of the convoluted type air spring, helps provide stability in the part.
