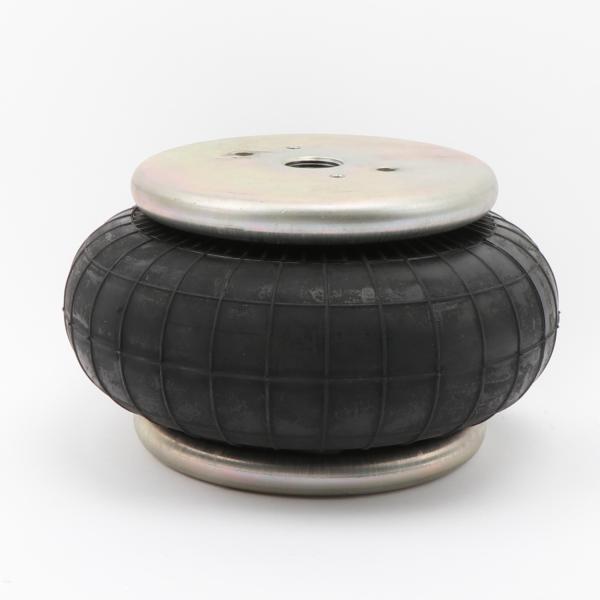

FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
Specifications
Brand Name :
GUOMAT
Model Number :
1B7070
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5pcs
Price :
USD49.9-59.9/PC
Payment Terms :
L/C, T/T, Western Union Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
N.W. :
1.3 Kg
Pressure Ability :
0.2-0.8 M PA
Plate Diameter :
115 mm
Air Inlet :
G1/2
Top Plate Hole/Stud :
M8
Top Plate Dia :
105 mm
Type :
Gas-Filled
Spring Material :
Rubber and Iron
Description

FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine

GUOMAT:1B7070 Specific parameters and specifications:

Top Plate Hole/Stud: 3 Pieces

Top Plate Hole/Stud: 2 PiecesXM8X1.25

Bottom Plate Hole/Stud: 2 PiecesXM8X1.25

Air inlet:G1/2

Top Cover Plate: 4.13 inches / 105 mm

Bottom Cover Plate Diameter: 4.13 inches / 105 mm

Collapsed Height: 2.36 inches / 60 mm

Screw Center Distance of Top Cover Plate : 1.75 inches / 44.5 mm

Screw Center Distance of Bottom Cover Plate : 1.75 inches / 44.5 mm

Rubber Bellows Natural Diameter : 150 mm

Rubber Bellows MAX Diameter:Φ165 mm

The Working Stroke : MAX 110 mm to MIN 50 mm

Maximum Height : 4.33 inches / 110mm

Minimum Height :1.97 inches / 50 mm

OEM Original Equipment Manufacturer:

References Numbers
Phoenix : SP 1 B 05
Phoenix : SP1B05
Fes to Air Spring: EB-165-65
Fes to Air Spring : EB 165 65
Fes to Air Spring : EB16565
Weforma : WBE 200-E1
Weforma : WBE 200 E1
Weforma : WBE200E1
Contitech : FS 70-7
Contitech : FS70-7
Contitech : FS707

1B7070 Vibration isolation - dynamic characteristic values
Design height H: recommended 90mm, minimum 70mm
Pressure p [bar] 3 4 5 6 7 8 Vol V [l]
Force (Load) [KN] 2.7 3.7 4.7 5.7 6.6 7.7 9
Spring rate [N/cm] 1040 1270 1530 1770 2060 2325 9
Natural frequency [Hz] 3.1 2.9 2.9 2.8 2.8 2.7 9

1B7070 Pneumatic application - static characteristic values
Force F [kN]
Pressure p [bar] 3 4 5 6 7 8 Vol.[l]
Height H [mm] 100 2.2 3.1 4 4.8 5.7 6.6 1
90 2.7 3.6 4.6 5.6 6.5 7.5 0.9
80 3.1 4.1 5.1 6.2 7.3 8.3 0.8
70 3.4 4.5 5.6 6.7 7.9 9 0.7
60 3.6 4.8 6 7.2 8.4 9.5 0.6


How to improve the wear resistance of air spring rubber airbags?


Today, the gap between domestic air springs and imported air springs is getting smaller and smaller. Proper use and attention to maintenance are ways to extend the life of air springs. Maintenance serves to extend the life of the air spring. It must be based on the superior quality of the air spring rubber bladder itself. In the production process, what methods can improve the wear resistance of air spring rubber airbags? In addition to the most basic work in the vulcanization process, you need to pay attention to the following points:
1. The smaller the particle size of the general filler, the lower the dispersibility, surface activity and structural structure, and the worse the wear resistance. The optimum amount is BR90-100 parts, the oil-filled SBR is 60-70 parts, and the SBR and IR are 50-. 55 parts, NR is 45-50 parts.

Other kinds of guomat air springs for industrial machine:

FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine

GUOMAT air spring production line:

FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine


Details pictures of air spring 1B7070:

FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
FS70-7 Contitech Air Spring Festo EB-165-65 Single Convoluted Air Spring For Small Load Machine
