0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits
0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits
0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits
0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits
0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits
0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits
0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits
0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits
0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits
0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits
Specifications
Certification :
ISO/Ts16949:2009
Brand Name :
GUOMAT
Model Number :
F-500-3
Place of Origin :
Guangzhou,China
MOQ :
5pcs
Price :
USD119.9-159.9/PC
Payment Terms :
L/C, T/T, Western Union Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Condition :
Brand-New
Service :
Sample and OEM
Bellow Type :
Three
Transport Package :
Strong Carton Box or as Customers Need
Warranty :
1 Year
Type :
Gas-Filled
Spring Material :
Rubber
Structure :
Triple Convoluted
Description

0.69Mpa Triple Convoluted Airbag Gas Rubber suspension spring Repair Kits

Product Description
Product Name Punch Air Spring
Parts Number F-500-3
Warranty 12 Months
Use Industrial Machine
Bellow Type Triple Convoluted
Sample Acceptable
Color Black
Payment L/C,T/T,Western Union
Delivery About 2-8 working days receiving your payment
Package Strong Carton Box Or As Customers Need
Shipping Ship by air ,by sea,by express(DHL,Fedex,UPS...)

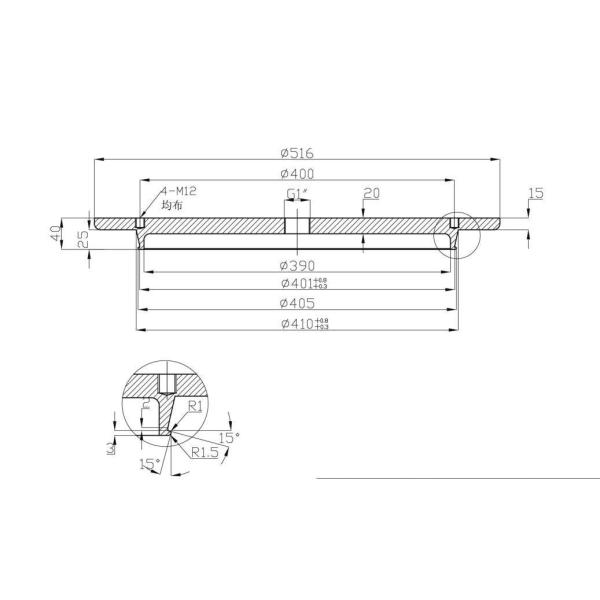

The Following Is The Cover Plate Detailed Data Drawing
0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits

Technical Data Purchase Order Data

Design Height:160mm

Max Height:270mm

Min Height:90mm

Common Maximum Travel:±68

Compression Max Outside Diameter:560mm

Effective Area:1965cm2

Volume:30.3L

Load:96.3KN

Dynamic Spring Constant:1255n/mm

Natural Vibration Frequency:1.8Hz

Maximum Internal Pressure:0.69Mpa

Internal Pressure Failure:3.9-4.9Mpa

About Us

Guangzhou Guomat Air Spring Co., Ltd.

  • We focus on the production of air spring has been 15 years which is Chinese the largest manufacturer of air springs.
  • We have Truck air spring,Bus air spring ,Car Suspension air spring , Industrial air spring and Air Suspension Compressor .
  • The company has its own workshop,Provide all customers with high-quality purchasing experience,excellent quality and after-sale service

Company Advantages

  • Excellent materials
  • Effective shock
  • In situ installation

  • Comfortable and stable

  • Long life

  • Slove the abnormal noise

Punch Air Spring

An air spring is a type of suspension system used in vehicles to provide a smooth and comfortable ride. It consists of a flexible bag filled with compressed air, which supports the weight of the vehicle and absorbs shocks and vibrations. The air spring is typically connected to the vehicle's suspension system and can be adjusted to vary the ride height and stiffness of the suspension.

FAQ
1. Are you a Manufacture factory? Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years.
2. What is your main products? Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.
3. Is the sample available? Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 2-8 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
5. Can i use my own logo and design on products? YES,OEM is welcomed.
6. I can not find out the items what i want from your website, can you offer the products i need? YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.

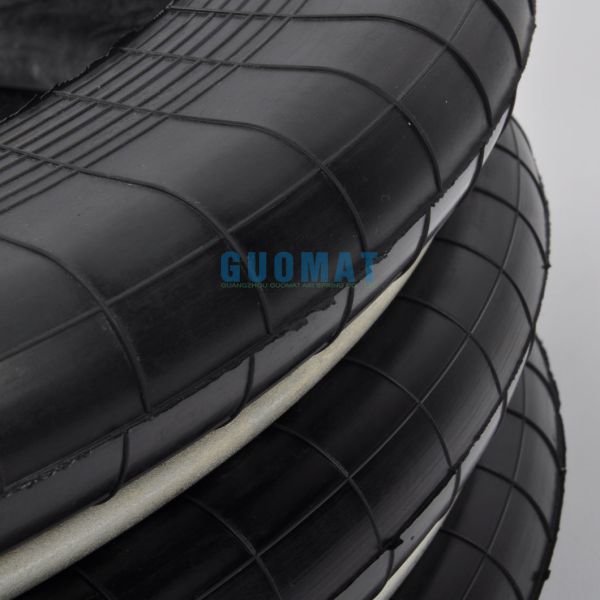

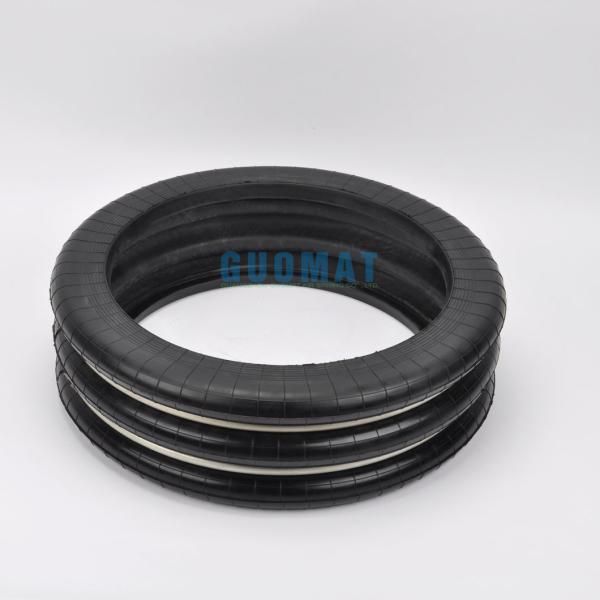

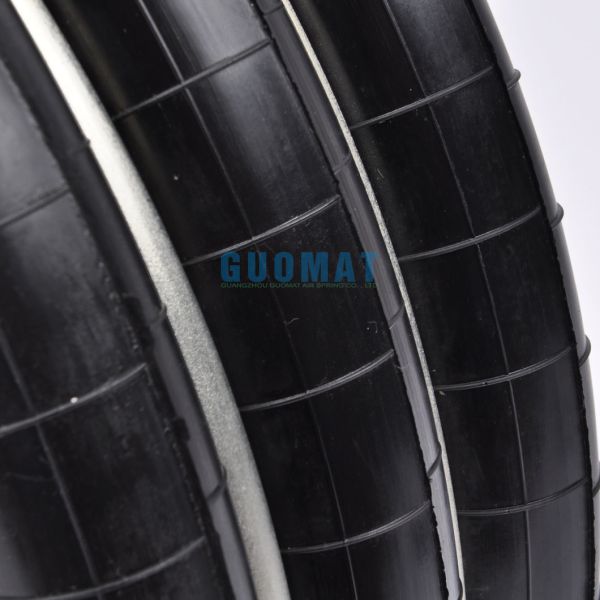

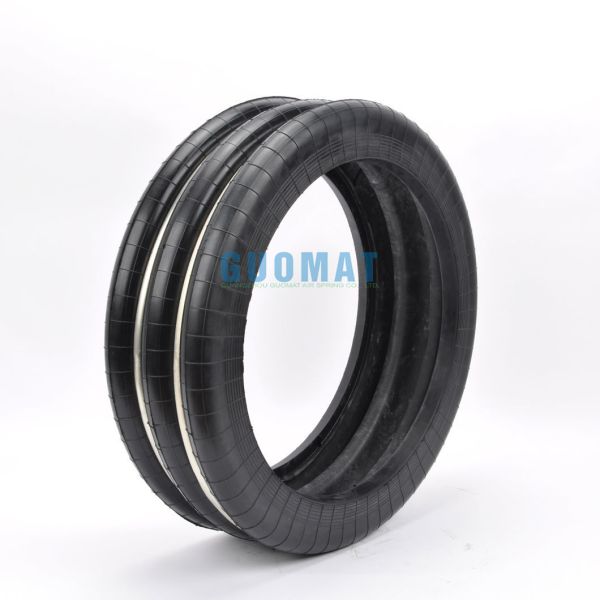

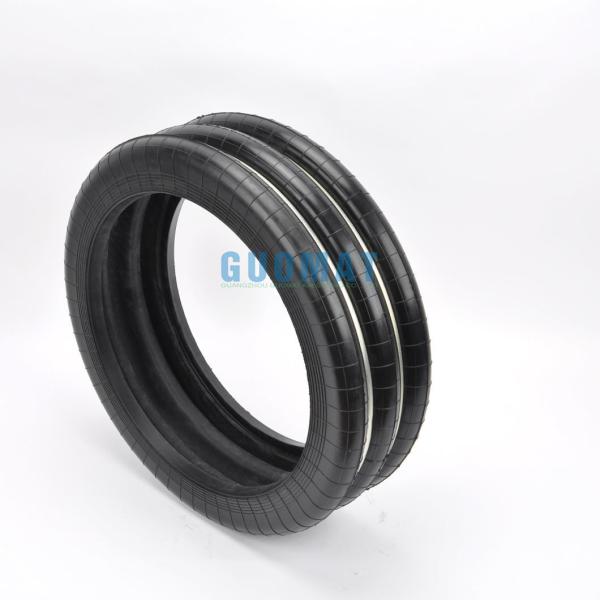

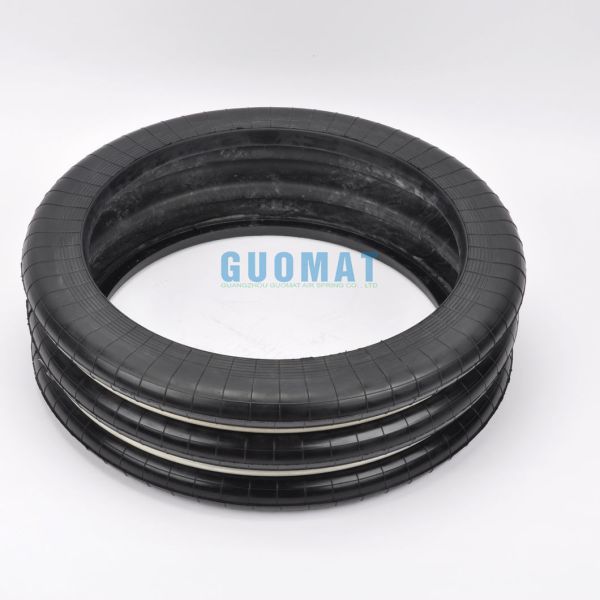

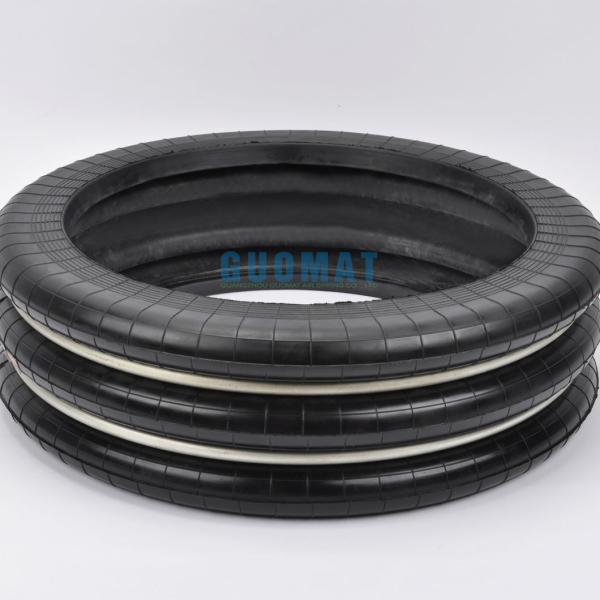

Detailed Photos

0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits
