Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring
Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring
Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring
Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring
Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring
Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring
Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring
Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring
Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring
Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring
Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring
Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring
Specifications
Brand Name :
GUOMAT
Model Number :
1B5330
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5pcs
Price :
USD59.9-69.9/PC
Payment Terms :
L/C, T/T, Western Union Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Structure :
Single Cylinder
Color :
Black
HS Code :
8708809000
Warranty :
12 Months
Firestone :
W01-358-7008
Contitech :
FS 330-11 474
Goodyear :
1B12-300
Threaded Hole :
3/8-16UNC
Description
Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring


The detailed Specifications and techical data
The Max. Diameter 325mm
Air hole/air inlet 1/4 N P.T.F.
Working stroke maximum 160 mm to minimum 55 mm
Top plate screw (nut) teeth 2 x 3 / 8-16UNC
Bottom plate screw (nut) teeth 2 x 3 / 8-16UNC
Top cover diamete 9.00 inches / 231 mm
Bottom cover diameter 9.00 inches / 231 mm
Screw center distance 157.5 mm
The air hole distance between the nuts 73 mm

The competitive advantage of the product

1. The product quality is excellent, natural rubber imported from Thailand, combined with German technology.

2. For products with the same price in the market, Gaomat strives for better quality. For products of the same quality, Gaomat strives for lower prices.
3. More than ten years of production technology, products cover the world.

Cross Reference Numbers

Firestone Style Style 19
Firestone OEM Number W01-358-7008,W01 358 7008,W013587008
Firestone OEM Number WO1-358-7008,WO1 358 7008,WO13587008
Contitech OEM Number FS 330-11 474,FS330-11474
Goodyear OEM Number 1B12-300,1B 12-300,1B12 300
Goodyear OEM Number 1B12-313,1B 12-313,1B12 313
Triangle OEM Number 6374/4474
Holland(Neway) 90557226

How to Install Air Springs?

Installation method:
1. When installing, the position of the compressed gas spring piston rod must be downward to reduce friction and ensure the best damping quality and buffering performance.
2. When installing the compressed gas spring, it must be installed in the correct way. When closing, it moves across the center line, otherwise the door will often be pushed open.

Precautions:
1. Before determining the installation position, the selection of gas springs should first be based on the model and specifications in the manual.
2. Gas springs should not be subject to tilting or lateral forces during work.
3. The piston rod is not painted, and it is not allowed to install the gas spring in the desired position first and then spray or paint it.
4. Gas springs are high-pressure products, please do not dissect them at will.
5. It is strictly forbidden to burn or smash the gas spring.
6. Gas spring piston rod, do not rotate to the left

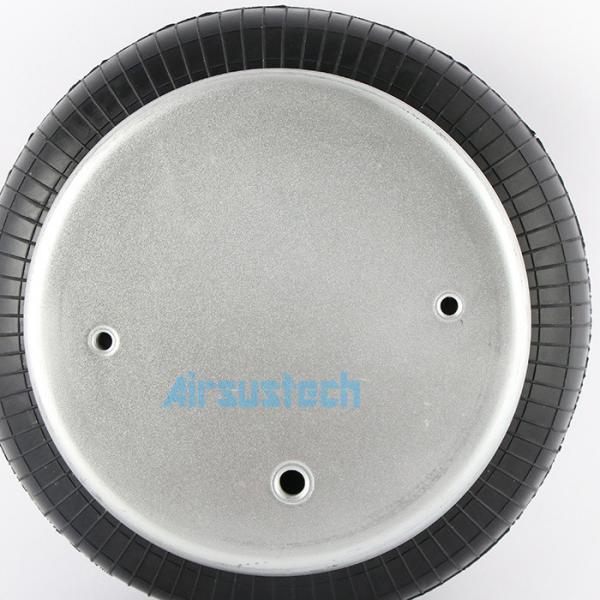

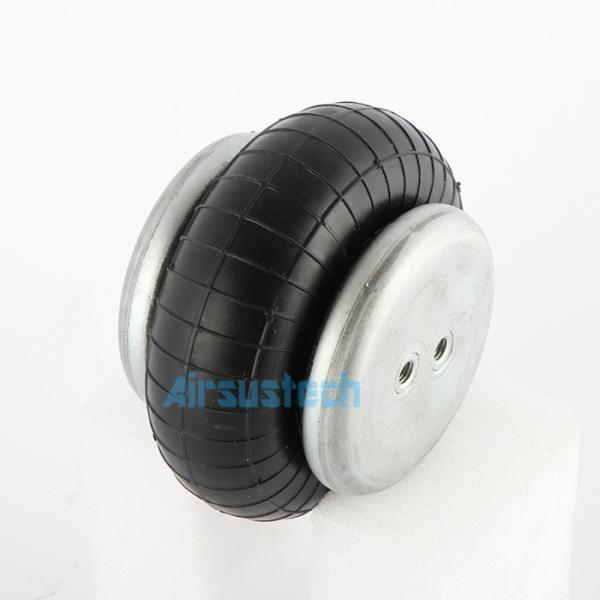

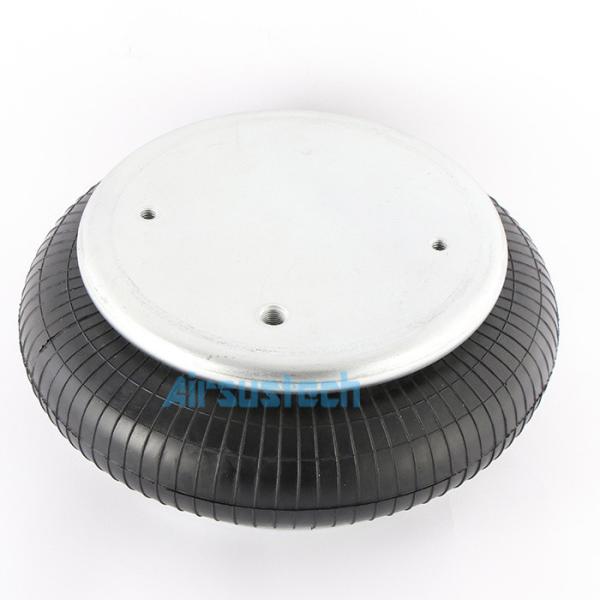

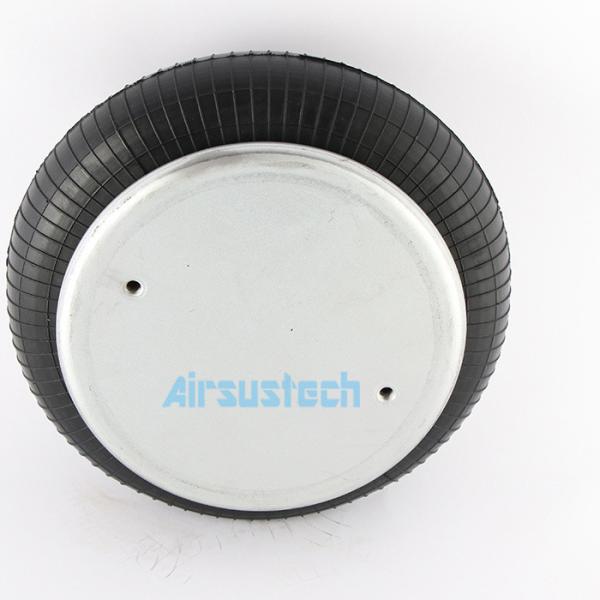

The reated picture

Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring

Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring Firestone W01-358-7008 Rubber FS330-11 474 Single Convoluted Air Spring
