Specifications
Brand Name :
Norgren
Model Number :
PM31062
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5pcs
Price :
USD119.9-159.9/PC
Payment Terms :
L/C, T/T, Western Union Or Others
Supply Ability :
5000PCS/Month
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
PM31062
N.W. :
3.5 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Other OEM :
6"X2
Top Plate Dia :
153.5 mm
Bottom Plate Dia :
153.5 mm
Air Inlet :
G1/2
Bumper :
Without
Transport Package :
Cartons
Specification :
24*24*24 cm
Trademark :
Norgren
Origin :
Europe
HS Code :
8708809000
Function :
Reduce Vibration
Material :
Rubber and Aluminum
Usage :
Industrial
Load Type :
Compression
Production Process :
Vulcanization
Shape :
Convoluted
Samples :
US$ 259/Piece 1 Piece(Min.Order) | Request Sample
Customization :
Available | Customized Request
Description

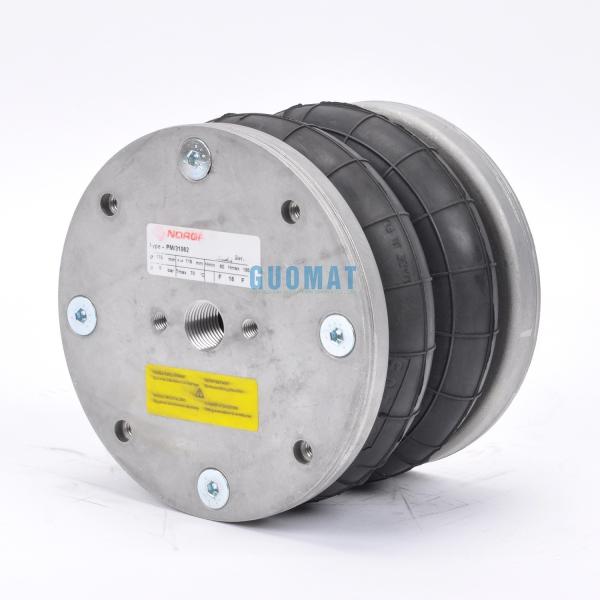

PM31062 Norgren Air Spring Actuator 6"x2 Aluminum Firestone W01R584070 Industrial Air Bags

PM31062 Norgren OEM reference:

Norgren Part NO.: PM31062
Dunlop Part NO.: 6"x2
Firestone Air Spring Part NO.: W01-R58-4070 - (6 x 2 Alu )


Specifications and Detail Technical Parameters

Nut/ Blind Nut
Top cover screw (nut) teeth: 4 X M8

Bottom cover screw (nut) teeth: 4 X M8

air hole / air inlet / air connector
Air vent / air inlet: G1 / 2

cover
Top cover diameter (width): 153.5 mm

Bottom cover diameter (width): 153.5 mm

Material top and bottom plate: aluminum

Rubber bellows
Maximum diameter 7 bar: 175MM

Rubber bellows stroke: 80mm-195m

bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Girdle Hoop: a belt hoop

Maximum load is 80 mm height and 8 bar: 1415 daN

Other kinds of model air bellows:

Firestone Air Spring W01R584070 (6 x 2 Alu )

Firestone Air Spring W01R584053 (6 x 2 Steel )

Firestone Air Spring W01R584078 (6 x1 Alu )

Firestone Air Spring W01R584081 (2 3/4" x3)

Firestone Air Spring W01R584051 Dunlop Style 4,5 " x 2

Firestone Air Spring W01R584052 (6" x1 steel)

Firestone Air Spring W01R584057 (10 x1 steel)

Firestone Air Spring W01R584054 8x1 Steel

Firestone Air Spring W01R584028 8"x1 Epichlorhydrin

Firestone Air Spring W01R584027 8x2 (Epichlorhydrin / Herclor)

Firestone Air Spring W01R584090 8"x2 Butyl

Firestone Air Spring W01R584055 8x2 Steel

Firestone Air Spring W01R584060 (12 x1 steel)Fire stone Air Spring W01R584077 (12 x1 Herclor )

Firestone Air Spring W01R584056 8"x3 Steel

Firestone Air Spring W01R584062 (12 x3 Steel)

Firestone Air Spring W01R584065 (14 1/2 x3 Steel)

Firestone Air Spring W01R584098 (14 1/2 x1 Herclor)

Firestone Air Spring W01R584097 (14" 1/2 x2 Herclor)

Firestone Air Spring W01R584025 (10" x1 Epichlorhydrin/Herclor)

Firestone Air Spring W01R584059 (10" x3 steel)

Spar Part Bellow 8"x2 W01R584045

Firestone Air Spring W01R584064 14" 1/2 x2

Firestone Air Spring W01R584063 14 1/2 x1

Bellow only 8" x 1 W01R584085

Firestone Air Spring W01R584048

W01R584080 2 3/4" x 2

Firestone Air Spring W01R584060 12" x2 steel

Firestone Air Spring W01R584070 (6 x 2 V2a )

Firestone Air Spring W01R584051E 4,5 x 2 Stainless Steel

Firestone Air Spring W01R584050

W01R584080 2 3/4" x 1


Norgren Air Spring Actuator

PM/31041 PM/31042 PM/31043 PM/31061 M/31061
PM/31062 M/31062 PM/31063 M/31063 M/31081
M/31082 M/31083 M/31101 M/31102 M/31103
M/31121 M/31122 M/31123 M/31141 M/31142
M/31143 M/31161 M/31162 M/31163 M/31212


PM31062 Norgren Air Spring Actuator 6
PM31062 Norgren Air Spring Actuator 6
PM31062 Norgren Air Spring Actuator 6
