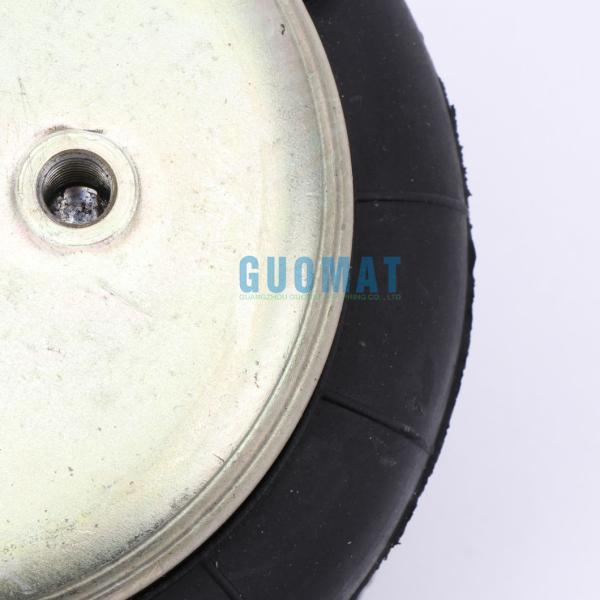

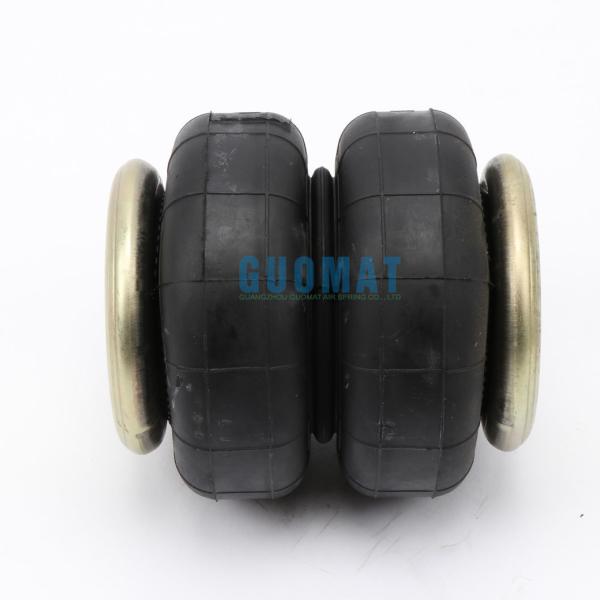

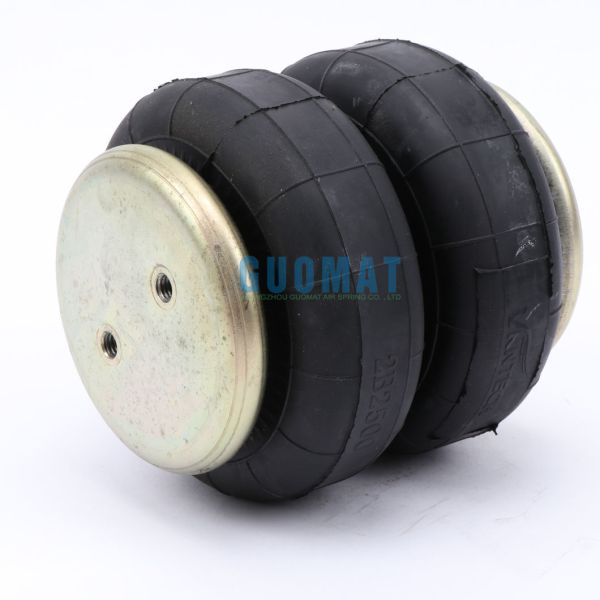

W01-358-6955 Firestone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts
W01-358-6955 Firestone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts
W01-358-6955 Firestone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts
W01-358-6955 Firestone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts
W01-358-6955 Firestone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts
W01-358-6955 Firestone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts
W01-358-6955 Firestone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts
W01-358-6955 Firestone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts
W01-358-6955 Firestone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts
W01-358-6955 Firestone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts
W01-358-6955 Firestone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts
W01-358-6955 Firestone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts
Specifications
Brand Name :
GUOMAT
Model Number :
2B6955
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5pcs
Price :
USD59.9-69.9/PC
Payment Terms :
L/C, T/T, Western Union Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
N.W. :
1.7 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Air Inlet :
1/4 NPT
Color :
Black
Stroke Rubber Bellows :
65~175 mm
Bumper Block :
Without
Screw (Nut) :
3/8
Description

W01-358-6955 Fire stone Air Spring Suspension Air Bags Double Convoluted With 3/8-16 Blind Nuts


Description Assembly Order No.

Blind nuts, 1/4 NPT:
GUOMAT 2B2500

Fire stone Air Spring WO1-358-6955 /

Fire stone Air Spring W01-358-6955 /

Fire stone Air Spring W013586955

Blind nuts, 3/4 NPT:

Fire stone Air Spring WO1-358-6956 /

Fire stone Air Spring W01-358-6956 /

Fire stone Air Spring W013586956

Rubber bellows only:

Fire stone Air Spring WO1-358-0048 /

Fire stone Air Spring W01-358-0048 /

Fire stone Air Spring W013580048

Ply Socket head aluminum bead:WO1-358-6833
Assembly weight 3.9 lbs.

Force to collapse to minimum height (@ 0 PSIG) 50 lbs.

GUOMAT 2B2500 Specifications and Detail Technical Parameters

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16

Screw Center Distance of Top Cover Plate : 44 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16

Screw Center Distance of Bottom Cover Plate : 44 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT

Cover Plate

Top Cover Plate Diameter (Width): 111 mm

Bottom Cover Plate Diameter (Width): 111 mm

Rubber Bellows

Rubber Bellows Natural Diameter : 146 mm

Rubber Bellows MAX Diameter : 165 mm

Installation Space Diameter : 180 mm

Rubber Bellows Natural Height : 175 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Dynamic Characteristics at 6.0 in. Design Height

(Required for Airmount isolator design only)
Volume @ 100 PSIG = 100 in3 Natural Frequency
Gage Pressure (PSIG) Load (lbs.) Spring Rate (lbs./ in.) CPM HZ
40 566 309 139 2.32
60 871 432 132 2.21
80 1,194 565 129 2.16
100 1,524 681 126 2.10

Force Table

Assembly Height(in.) Volume@100 PSIG(in3) Pounds Force
@20 PSIG @40 PSIG @60 PSIG @80 PSIG @100 PSIG
7.0 114 188 417 661 921 1198
6.0 100 270 566 871 1194 1524
5.0 82 331 686 1041 1414 1786
4.0 62 389 729 1197 1612 2039

Why use an Airstroke actuator (rather than air or hydraulic cylinder)for actuation?

LOW COST
Generally, initial cost is one-half or less than conventional pneumatic or hydraulic cylinders of the same force capabilities. This initial cost advantage is many times greater in
the larger sizes.

WIDE SIZE RANGE
Airstroke actuators are available in sizes ranging from 2.2 inches to 37 inches in diameter.
The force capability is 100,000 pounds. Strokes of up to 14 inches are possible.

DURABLE FOR LONG LIFE
Airstroke actuators are a further application of Firestone’s time proven Airide springs for
truck and bus suspensions. The long life and durability necessary for millions of miles of
heavy duty suspension use under adverse environmental conditions are also important
factors in machine design.
