SP1B12 Phoenix Suspension Air Spring FS 200-10 G3/4 Air Connection Contitech Single Convoluted Air Bellow
SP1B12 Phoenix Suspension Air Spring FS 200-10 G3/4 Air Connection Contitech Single Convoluted Air Bellow
SP1B12 Phoenix Suspension Air Spring FS 200-10 G3/4 Air Connection Contitech Single Convoluted Air Bellow
SP1B12 Phoenix Suspension Air Spring FS 200-10 G3/4 Air Connection Contitech Single Convoluted Air Bellow
SP1B12 Phoenix Suspension Air Spring FS 200-10 G3/4 Air Connection Contitech Single Convoluted Air Bellow
SP1B12 Phoenix Suspension Air Spring FS 200-10 G3/4 Air Connection Contitech Single Convoluted Air Bellow
SP1B12 Phoenix Suspension Air Spring FS 200-10 G3/4 Air Connection Contitech Single Convoluted Air Bellow
SP1B12 Phoenix Suspension Air Spring FS 200-10 G3/4 Air Connection Contitech Single Convoluted Air Bellow
Specifications
Brand Name :
GUOMAT
Model Number :
1B200-10
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
2pcs
Price :
$49.9-59.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Type :
Suspension Air Spring
Material :
Rubber+Steel
Warranty :
12 Months Warranty
Operation :
Gas-Filled
Cover Plate :
Aluminum Plate
Plate Dia. :
160mm
Air Hole :
G3/4
Other Name :
Industrial Air Spring Bags
Description

SP1B12 Phoenix Suspension Air Spring FS 200-10 G3/4 Air Connection Contitech Single Convoluted Air Bellow

Product Description

Spring Type

Convoluted Air Spring

Brand

GUOMAT

Model NO.

1B200-10

Air Inlet

G3/4

Material

Rubber,Steel,Metal

Size

OEM Size
Warranty 1 Year MOQ 1 Piece

Technical Parameters of GUOMAT 1B200-10 Air Spring

The natural outer diameter of GUOMAT 1B200-10 air spring is 220 mm and the natural height is 110 mm. The diameter of the upper cover is 160 mm, the air hole specification is G3/4, and the two threaded holes are M8X1.25. The center distance between the threaded holes is 89 mm, and the distance between the threaded hole and the air hole is 38 mm. The diameter of the bottom cover is 160 mm, and the two threaded holes are M8X1.25. The distance between the threaded holes and the air holes is 38 mm.

Refer Numbers

Firestone Air Spring W01-M58-6374 ; W01 M58 6374 ; W01M586374

Firestone Air Spring WO1-M58-6374 ; WO1 M58 6374 ; WO1M586374

ContiTech Air Spring FS200-10 ; FS 200-10 ; FS200 10

ContiTech Air Spring FS 200-10 CI ; FS200-10 CI

ContiTech Air Spring FS 200-10 CI 3/4 NPT

ContiTech Air Spring FS200-10 CI 3/4 NPT

Norgren Air Spring PM/31091 ; PM 31091 ; PM31091

Norgren Air Spring 8 1/4x1

Phoenix Air Spring SP1B12 ; SP 1B 12

Dunlop(FR) Air Spring 9''1/4x1 S09101

Bosch Air Spring 822419004

Festo Air Spring EB-250-85

EB-250-85 Festo Data Sheet

Size 250
Required installation diameter 265mm
Stroke 85mm
Max. extended height 140mm
Max. angle of inclination 20 deg
Max.offset 10mm
Min. installation height 51mm
Mode of operation Single-acting
Symbol 00991205
Operating pressure 0 bar ... 8 bar
Reset force 200N
Pneumatic connection G3/4

Ordering data – Single-bellows cylinder

Festo

Part No.

Size

Stroke

EB-145-60

36486

145

60

EB-165-65

36487

165

65

EB-215-80

36488

215

80

EB-250-85

36489

250

85

EB-325-95

193788

325

95

EB-385-115

193789

385

115

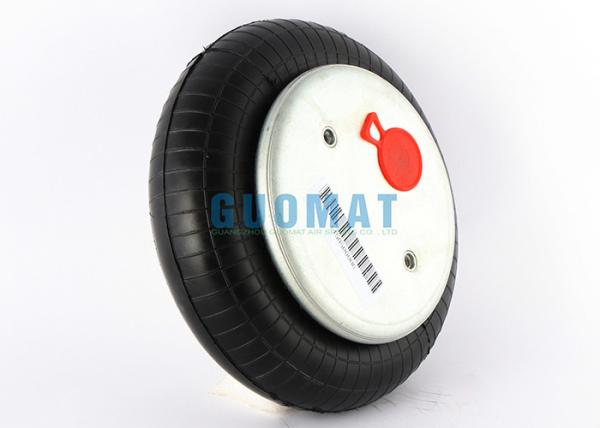

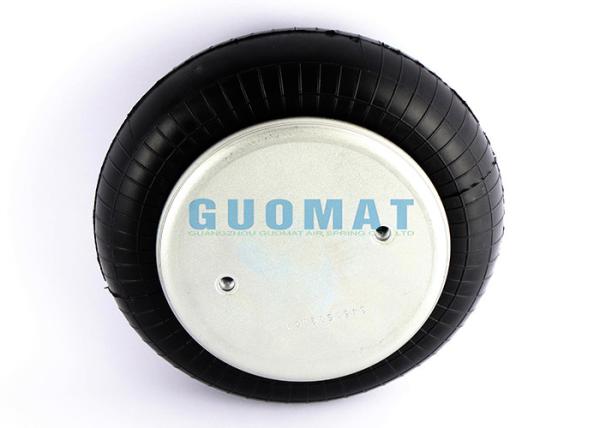

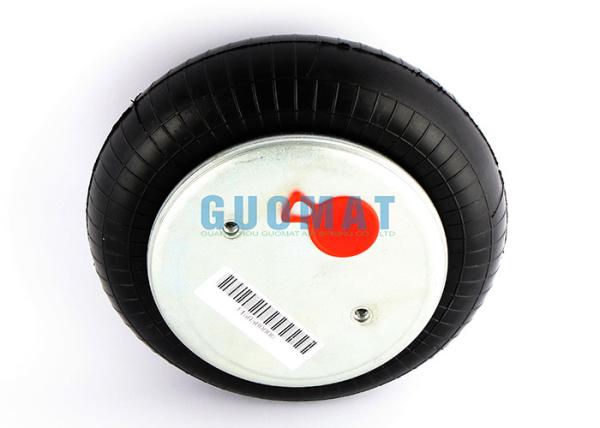

The Real Pictures of GUOMAT 1B200-10 Single Convoluted Air Spring

SP1B12 Phoenix Suspension Air Spring FS 200-10 G3/4 Air Connection Contitech Single Convoluted Air BellowSP1B12 Phoenix Suspension Air Spring FS 200-10 G3/4 Air Connection Contitech Single Convoluted Air Bellow
