W01-358-8025 Firestone Industrial Bellows Actuator FT 330-29 469 Contitech Air Spring For Roller Friction Brake

Product Description

An air spring can be used in a roller friction brake system. Roller friction brakes are commonly used in industrial motion control products and conveyors . Air springs, also known as air bags or air bellows, are flexible containers filled with compressed air. They are used to provide cushioning, support, and vibration isolation in various applications.

GUOMAT Number: 3B8025

Replace Firestone: W01-358-8025/WO1-358-8025

Replace Firestone: W01 358 8025/WO1 358 8025

Replace Firestone: W013588025/WO13588025

Replace Firestone: W01-358-8038/WO1-358-8038

Replace Firestone: W01 358 8038/WO1 358 8038

Replace Firestone: W013588038/WO13588038

Replace Contitech: FT 330-29 469

Replace Contitech: FT330-29 469

Replace Contitech: FT330-29469

Replace Goodyear: 3B12-300

Replace Goodyear: 3B 12-300

Replace Goodyear: 3B12 300

Replace Triangle: 6334/4469

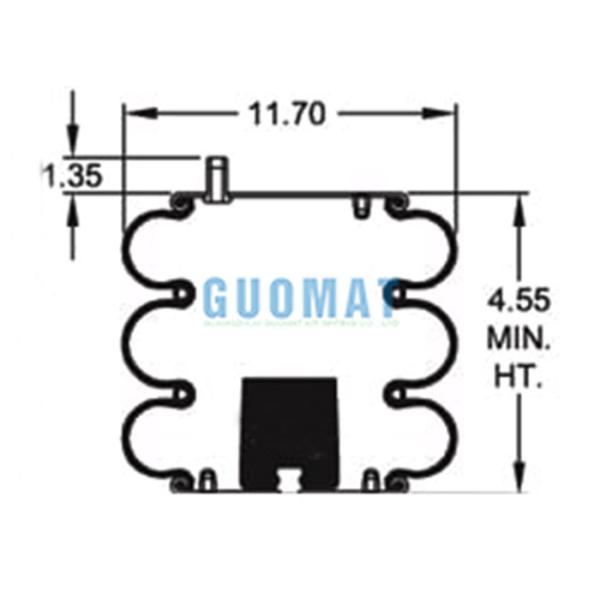

Technical Data

Top cover plate diameter: 231mm

Bottom cover plate diameter: 231mm

Center distance between air holes and threaded holes: 140mm

Center distance between threaded holes: 157mm

Maximum height: 460mm

Minimum height: 117mm

The rubber bellow max outer diameter: 330mm

3B12-300 Goodyear Air Bellow

Goodyear Bellow 578-93-3-100

Automann ABSP3B22R-8008

Automann ABSP3B22R-8025

Contitech 64562

Contitech FT 330-29 431

Dayton 354-8008

Firestone 8008

Firestone 8025

Firestone W013588008

Firestone W013588025

Hendrickson B-11637

Load Guard SC2130

Ridewell 1003588008C

Triangle 4431

Triangle 4469

TRP AS80080

Watson&Chalin AS-0019

The Function of Air Spring Installed on Roller Friction Brake

Air springs can be used in various applications, including roller friction brakes on conveyors . In the context of roller friction brakes, the function of an air spring is to provide a means of applying and releasing pressure on the brake shoes or pads.

When the brake is engaged, air pressure is applied to the air spring, compressing it and creating a force that pushes the brake shoes or pads against the brake drum or disc . This creates friction between the brake shoes or pads and the drum or disc, which slows down or stops the movement of the conveyor.

The air spring also plays a role in releasing the brake. When the brake is disengaged, the air pressure is released from the air spring, allowing the brake shoes or pads to move away from the drum or disc, thus releasing the braking force.

In summary, the function of an air spring installed on a roller friction brake is to apply and release pressure on the brake shoes or pads, enabling the braking action on the conveyor system.
