1R9-065 Goodyear Rolling Lobe Truck Air Suspension Springs
1R9-065 Goodyear Rolling Lobe Truck Air Suspension Springs
Specifications
Brand Name :
Goodyear
Model Number :
1R9-065
Certification :
ISO/TS16949
Place of Origin :
Guangdong , China
MOQ :
1pc
Price :
$59-159/pc
Payment Terms :
T/T, Western Union,paypal or others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customer's need
Material :
Rubber Bellows ,Steel Piston
Goodyear :
1R9-065
Other Name :
Trailer Air Spring
CONTI :
6 6 5-11 S 027 68108
FIRESTONE :
W013582119
TRIANGLE :
8525
Description

1R9-065 Goodyear Air Spring Rolling Lobe Truck Air Suspension Springs Air balloons

Goodyear Part Number:: 1R9-065

Bellows type: rolling leaf

Ultraman Bellow Part Number:: 1DK10

Firestone bellows Part Number:: Not applicable

Goodyear Bellows Part Number:: 566-18-3-003

Contitech bellows Part Number:: 6 6.5-11

Triangle bellows Part Number:: Not applicable

Base plate/neutron type: steel

Number of top plate holes/studs: 2

Top plate diameter: 7.4

Top plate C to C diameter: 3.38

Base plate hole bolt Qyt: 1

Base plate diameter: 7.5

Diameter of base plate C to C: N/A

Base plate part number: 566-16-7-009

Bottom plate alignment: parallel

Bumper: No

Bracket: Not applicable

Minimum height: 4.3

Maximum height: 11.8

AUTOMANN TRIANGLE
AB1DK10A-2119 AB1DK10D-8997 8525
HENDRICKSON WATSON & CHALIN AS-0026
B-2394 CONTI
NEWAY 6 6 5-11 S 027 68108
905-57-029 905-57-034 FIRESTONE
RIDEWELL 2119
1003588997C 8997 W013582119 W013588997
GRANNING
5112

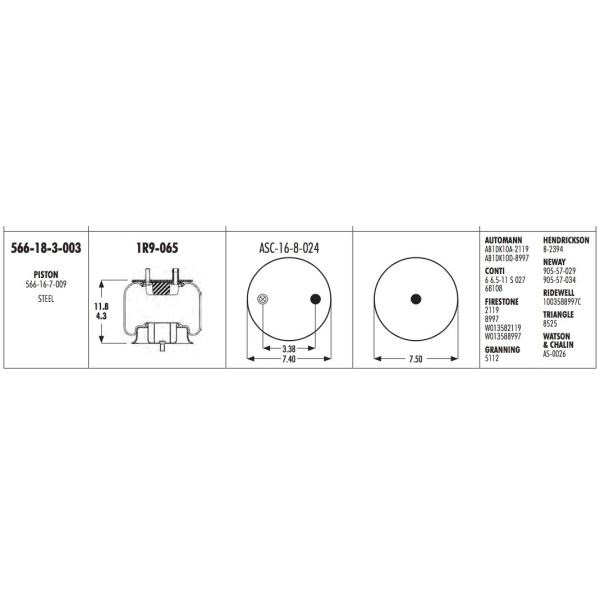

The drawing of Goodyear Air Spring 1R9-065:

1R9-065 Goodyear Rolling Lobe Truck Air Suspension Springs

GUOMAT Number Assembly Number Max OD @100 PSIG (Inches) Design Load Range (pounds) Design Height Range (Inches) Usable Stroke (Inches) Min Comp Height (Inches) Max Ext Height (Inches) Bumper Included Approximate Isolation Percent Air Fitting Size (Inches)
For a Distributing Frequency Of:
435 CPM 870 CPM 1160 CPM 1750 CPM
1R10 089 1R10-089 11 900 - 5,200 9.5 - 13.5 14.1 6 20.1 NO 96 99 99 99 1/4 CS
1R11 028 1R11-028 11.5 1,100 - 6,700 6.0 - 10.0 9.3 3.7 13 NO 95 98 99 99 1/4 CS
1R11 039 1R11-039 11.7 1,300 - 7,000 8.0 - 12.0 11 6.1 17.1 YES 94 98 99 99 1/4 CS
1R12 092 1R12-092 12.7 1,350 - 7,600 10.5 - 16.5 13.4 7.7 21.1 YES 96 99 99 99 1/4 CS
1R12 095 1R12-095 12.7 1,350 - 7,300 7.0 - 9.0 9.1 4.4 13.5 YES 94 98 99 99 1/4 CS
1R12 103 1R12-103 12.7 1,300 - 7,300 15.0 - 20.0 17.5 9.5 27 YES 96 99 99 99 1/4 CS
1R12 132 1R12-132 12.9 1,400 - 7,600 8.0 - 10.0 10.8 6.1 16.9 YES 93 98 99 99 1/4 CS
1R12 256 1R12-256 12.6 1,350 - 7,300 16.0 - 20.0 19.6 9.5 29.1 YES 96 99 99 99 1/4 CS
1R12 274 1R12-274 12.8 1,450 - 7,300 11.3 - 14.3 14.7 8.1 22.8 YES 96 99 99 99 1/4 CS
1R14 018 1R14-018 14.6 1,500 - 8,500 11.0 - 16.5 14.8 7.7 22.5 YES 96 99 99 99 1/4 OS
1R14 019 1R14-019 14.6 1,500 - 8,500 14.0 - 18.0 16.9 8.9 25.8 YES 96 99 99 99 1/4 OS
1R14 037 1R14-037 14.8 1,900 - 11,000 7.5 - 11.0 12.3 5.7 18 YES 92 98 98 99 1/4 OS
1R8 005 1R8-005 8.7 560 - 3,100 10.5 - 13.0 13 5.6 18.6 NO 95 98 99 99 1/4 CS
1R8 009 1R8-009 8.7 480 - 2,700 10.5 - 13.0 11.8 6.8 18.6 YES 96 98 99 99 1/4 CS
1R9 003 1R9-003 9.5 560 - 3,700 8.0 - 12.0 12.3 5.6 17.9 NO 93 98 99 99 1/4 CS
1R9 009 1R9-009 9.5 800 - 4,400 6.0 - 7.5 8.6 3.2 11.8 NO 91 97 98 99 1/4 CS
