2B9-229 Goodyear Air Spring 578923211 CONTI FD 200-19 505 Firestone W013586897
2B9-229 Goodyear Air Spring 578923211 CONTI FD 200-19 505 Firestone W013586897
2B9-229 Goodyear Air Spring 578923211 CONTI FD 200-19 505 Firestone W013586897
2B9-229 Goodyear Air Spring 578923211 CONTI FD 200-19 505 Firestone W013586897
2B9-229 Goodyear Air Spring 578923211 CONTI FD 200-19 505 Firestone W013586897
2B9-229 Goodyear Air Spring 578923211 CONTI FD 200-19 505 Firestone W013586897
2B9-229 Goodyear Air Spring 578923211 CONTI FD 200-19 505 Firestone W013586897
2B9-229 Goodyear Air Spring 578923211 CONTI FD 200-19 505 Firestone W013586897
Specifications
Brand Name :
Goodyear
Model Number :
2B9-229
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong,China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Steel cover plate , rubber bellows
Firestone :
W01-M58-6897
Gas Hole :
1/4 NPTF
Screw Tooth :
3/4-16
Screw Center Distance :
89 mm
Cover Plate Diameter :
162.5 mm
Pressure Ability :
0.2-0.8 M Pa
stroke :
75~260 mm
Net Weight :
3.35 kg
Package Size :
24*24*24 CM
Description

2B9-229 Goodyear Air Spring 578923211 CONTI FD 200-19 505 FIRESTONE W013586897 SPRINGRIDE 2B9-494

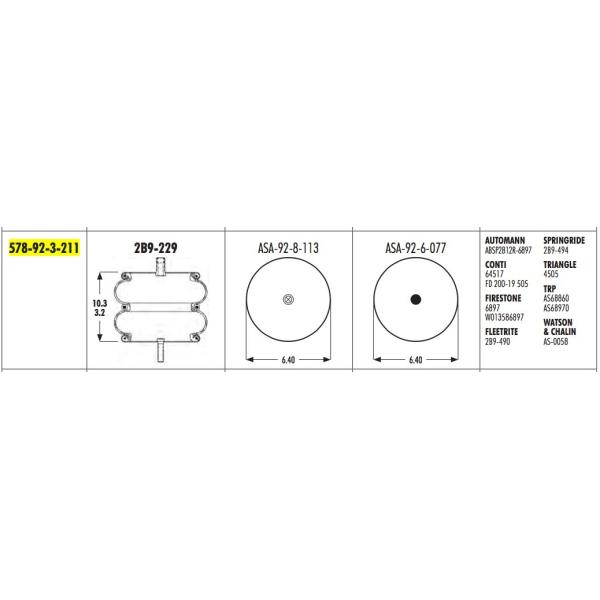

Goodyear 2B9-229 Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : Stud – 3/4-16

Combination Stud Air Fitting:Stud – 3/4-16

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth :1/2-13 or 1/2-20

Bolt or Stud – 1/2-13 or 1/2-20

Screw Center Distance of Bottom Cover Plate : 89 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet :1/4 NPTF

Air Fitting – 1/4 NPTF

❸ Cover Plate

Top Cover Plate Diameter: 162.5 mm

Bottom Cover Plate Diameter: 162.5 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : MIN 75 mm to MAX 260 mm

Maximum Height : 260 mm

Minimum Height :75mm

Stroke Height : 285 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Goodyear 2B9-229 Cross others OEM

AUTOMANN
ABSP2B12R-6897

SPRINGRIDE

2B9-494

CONTI
64517
FD 200-19 505

FIRESTONE
6897

W013586897

W01-M58-6897

FLEETRITE
2B9-490

TRIANGLE
4505

TRP
AS68860

AS68970

WATSON & CHALIN

AS-0058

2B9-229 Goodyear Air Spring 578923211 CONTI FD 200-19 505 Firestone W0135868972B9-229 Goodyear Air Spring 578923211 CONTI FD 200-19 505 Firestone W0135868972B9-229 Goodyear Air Spring 578923211 CONTI FD 200-19 505 Firestone W013586897

57892222900000 20094439 Y 2B9-229 2B9-229
2B9-229 20067578 N 2B9-229 Bellows Air Spring 2B9-229 Bellows Air Spring
57892222900077 20215645 Y 2B9-229 WATSON & CHALIN AS0058 2B9-229 WATSON & CHALIN AS0058
57892222930000 20094444 Y 2B9-229 2B9-229
2B9-230 20067579 N 2B9-230 Bellows Air Spring 2B9-230 Bellows Air Spring
57892223400000 20067736 Y 2B9-234 METRIC 2B9-234 METRIC
57892223500000 20094446 Y 2B9-235 METRIC 2B9-235 METRIC
57892223500019 20094447 Y ENIDINE YI-2B9-235 METRIC ENIDINE YI-2B9-235 METRIC
57892223800000 20106791 Y 2B9-238 2B9-238
2B9-238 20110594 N 2B9-238 2B9-238
57892223900000 20106792 Y 2B9-239 2B9-239
2B9-239 20110595 N 2B9-239 Bellows Air Spring 2B9-239 Bellows Air Spring
57892224000000 20035767 Y 2B9-240 KIT 2B9-240 KIT
2B9-240 20094448 N 2B9-240 Bellows Air Spring 2B9-240 Bellows Air Spring
57892224100000 20106793 Y 2B9-241 2B9-241
57892224200000 20106794 Y 2B9-242 2B9-242
2B9-242 20110597 N 2B9-242 2B9-242
57892224300000 20106795 Y 2B9-243 2B9-243
2B9-243 20110599 N 2B9-243 2B9-243
57892224400000 20113666 Y 2B9-244 2B9-244
2B9-244 20113667 N 2B9-244 Bellows Air Spring 2B9-244 Bellows Air Spring
57892224500000 20119614 Y 2B9-245 2B9-245
2B9-245 20113706 N 2B9-245 Bellows Air Spring 2B9-245 Bellows Air Spring
57892224600000 20139383 Y 2B9-246 2B9-246
2B9-246 20139384 N 2B9-246 Bellows Air Spring 2B9-246 Bellows Air Spring
57892224900000 20169787 Y 2B9-249 2B9-249
2B9-249 20169789 N 2B9-249 2B9-249
57892225000000 20094450 Y 2B9-250 EXT 2B9-250 EXT
2B9-250 20054261 N 2B9-250 Bellows Air Spring 2B9-250 Bellows Air Spring
