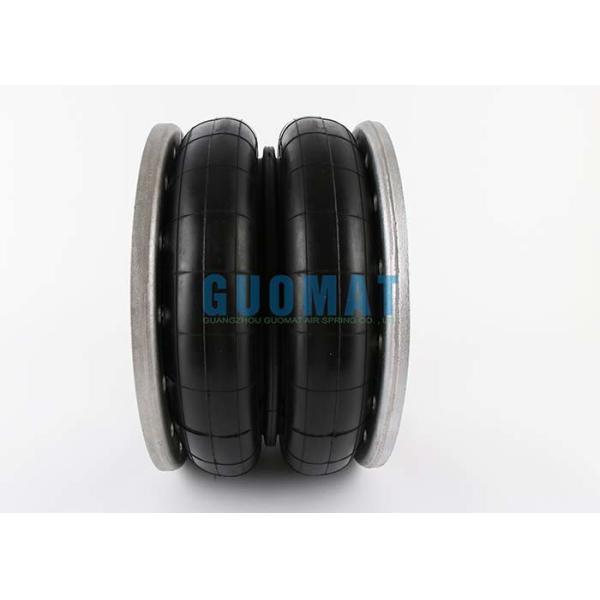

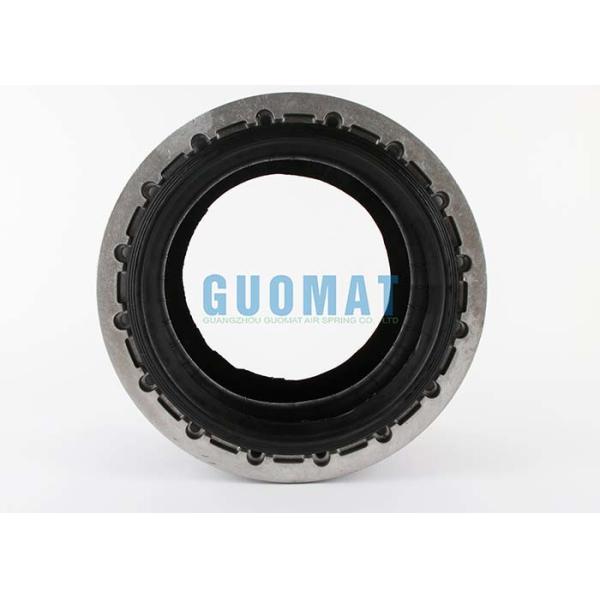

W01M586979 Double Convoluted Air Spring Rubber Bellows W013585126 Flange DIA.600 Mm
W01M586979 Double Convoluted Air Spring Rubber Bellows W013585126 Flange DIA.600 Mm
W01M586979 Double Convoluted Air Spring Rubber Bellows W013585126 Flange DIA.600 Mm
W01M586979 Double Convoluted Air Spring Rubber Bellows W013585126 Flange DIA.600 Mm
W01M586979 Double Convoluted Air Spring Rubber Bellows W013585126 Flange DIA.600 Mm
W01M586979 Double Convoluted Air Spring Rubber Bellows W013585126 Flange DIA.600 Mm
W01M586979 Double Convoluted Air Spring Rubber Bellows W013585126 Flange DIA.600 Mm
W01M586979 Double Convoluted Air Spring Rubber Bellows W013585126 Flange DIA.600 Mm
W01M586979 Double Convoluted Air Spring Rubber Bellows W013585126 Flange DIA.600 Mm
W01M586979 Double Convoluted Air Spring Rubber Bellows W013585126 Flange DIA.600 Mm
Specifications
Brand Name :
GUOMAT
Model Number :
2H6979
Certification :
ISO/TS16949:2009
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Price :
Negotiable
Material :
Aluminum alloy And Rubber
Firestone :
W01M586979
Net Weight :
10.8 KG
Other Name :
Industry Air Spring Isolator
Pressure Ability :
0.2-0.8 M Pa
Gross Weight :
12.5 KG
Flange ring size :
600 mm
BOLT CIRCLE DIA :
558 mm
Description

W01M586979 Double Convoluted Air Spring Rubber bellows W013585126 Flange DIA.600 mm

Industrial Double Convoluted Air Spring Specifications


Rubber bellows only

Style 200 Two Ply Bellows
Ribbed neck aluminum bead,rings (equal spacing), 45 mm,bolts, nuts, washers:W01-M58-6979;W01 M58 6979;W01M586979
Rolled plate assembly,1/2 blind nuts, 3/4 NPT:SEE NOTE BELOW
Rubber bellows only:W01-358-5126;W01 358 5126;W013585126
Assembly weight.:15.8 kg.

Force to collapse to minimum height (@ 0 BAR):445 N.

Design Height (mm) 241 Maximum Diameter @ 7 Bar (mm) 660
Load (at Design Height) at: 3 Bar (kN) 64.3 Maximum Height (mm) 84
Load (at Design Height) at: 5 Bar (kN) 147.1 Maximum Stroke (mm) 185
Load (at Design Height) at: 7 Bar (kN) 154.3 Minimum Usable Height (mm) 269
Natural Frequency (@5 Bar)(fn(Hz) 1.6 Force in kN @ 5 Bar at Stroke of 25 mm 144
% of Isolation at Forced Frequency 7 Hz 95.6 Force in kN @ 5 Bar at Stroke of 50% of Max Stroke 130.3
% of Isolation at Forced Frequency 13 Hz 98.8 Force in kN @ 5 Bar at Stroke of Maximum Stroke 97.8
% of Isolation at Forced Frequency 25 Hz 99.7 Material 2-Ply Standard Cord
# of Bolts (each ring) 24 Bead ring Type 4
Dim. C (Bolt Circle Diameter mm) 559

Flange connection type of air spring model comparison table
GUOMAT NO. Contitech NO. GUOMAT NO. Contitech NO.
FS22-3DICR FS 22-3 DI CR FS960-12RS FS 960-12 RS
FS44-5DICR FS 44-5 DI CR FS1330-11RS FS 1330-11 RS
FS76-7DICR FS 76-7 DI CR FS1710-12RS FS 1710-12 RS
FS76-7DSCR FS 76-7 DS CR FS2870-16RS FS 2870-16 RS
FS138-8DS FS 138-8 DS FS5450-16RS FS 5450-16 RS
FS210-10DS FS 210-10 DS FD960-22RS FD 960-22 RS
FS412-10DS FS 412-10 DS FD1120-30RI FD 1120-30 RI
FS614-13DS FS 614-13 DS FD1330-25RS FD 1330-25 RS
FS816-15DS FS 816-15 DS FD1710-25RS FD 1710-25 RS
FD22-4DICR FD 22-4 DI CR FD1730-40RI FD 1730-40 RI
FD44-10DICR FD 44-10 DI CR FD2380-24RS FD 2380-24 RS
FD76-14DICR FD 76-14 DI CR FD2470-40RI FD 2470-40 RI
FD76-14DSCR FD 76-14 DS CR FD2870-30RS FD 2870-30 RS
FD138-18DS FD 138-18 DS FD5450-28RS FD 5450-28 RS
FD209-21DS FD 209-21 DS FT960-34RS FT 960-34 RS
FD210-22DS FD 210-22 DS FT1330-35RS FT 1330-35 RS
FD412-18DS FD 412-18 DS FT1710-38RS FT 1710-38 RS
FD614-26DS FD 614-26 DS FT2870-45RS FT 2870-45 RS
FD816-30DS FD 816-30 DS FT5450-44RS FT 5450-44 RS
FT22-6DICR FT 22-6 DI CR 　 　
FT44-15DICR FT 44-15 DI CR 　 　
FT76-20DICR FT 76-20 DI CR 　 　
FT76-20DSCR FT 76-20 DS CR 　 　
FT138-26DS FT 138-26 DS 　 　
FT210-32DS FT 210-32 DS 　 　
FT412-32DS FT 412-32 DS 　 　
FT614-36DS FT 614-36 DS 　 　
FT816-40DS FT 816-40 DS

W01-358-9101 56
W01-358-9320 59
W01-358-9338 59
W01-358-9250 69
W01-358-6905 99
W01-358-6948 103
W01-358-7429 107
W01-358-7447 108
W01-358-7135 110
W01-358-8008 117
W01-358-8025 118
W01-358-8027 118
W01-358-8038 119
W01-358-7800 121
W01-358-7839 122

1359 W01-358-9083 43
1371 W01-358-6910 98
1476 W01-358-7816 121
1613 W01-358-7798 120
1626 W01-358-7136 111
1971 W01-358-5406 9
2112 W01-358-5410 10
2279 W01-358-7118 112
2577 W01-358-9210 44
2598 W01-358-9214 85
2692 W01-358-9211 44
2725 W01-358-7403 105
2726 W01-358-7400 105
2727 W01-358-9342 50 ,

W01M586979 Double Convoluted Air Spring Rubber Bellows W013585126 Flange DIA.600 Mm

W01M586979 Double Convoluted Air Spring Rubber Bellows W013585126 Flange DIA.600 MmW01M586979 Double Convoluted Air Spring Rubber Bellows W013585126 Flange DIA.600 Mm
