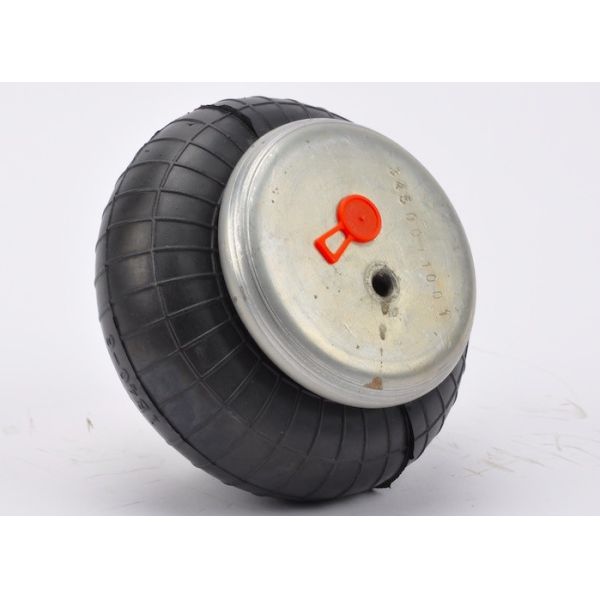

FS 40-6 Contitech Air Spring Max Dia 145mm With Two Nuts
FS 40-6 Contitech Air Spring Max Dia 145mm With Two Nuts
FS 40-6 Contitech Air Spring Max Dia 145mm With Two Nuts
FS 40-6 Contitech Air Spring Max Dia 145mm With Two Nuts
FS 40-6 Contitech Air Spring Max Dia 145mm With Two Nuts
FS 40-6 Contitech Air Spring Max Dia 145mm With Two Nuts
FS 40-6 Contitech Air Spring Max Dia 145mm With Two Nuts
FS 40-6 Contitech Air Spring Max Dia 145mm With Two Nuts
Specifications
Brand Name :
GUOMAT
Model Number :
1B40-6
Certification :
ISO/TS16949:2009
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Rubber Steel
Contitech :
FS 40-6
Warranty :
1 Year
Net Weight :
0.91 kg
Other names :
Air Vibration industrial
Pressure Ability :
0.2-0.8 MPa
Box Dimensions :
16*16*8cm
Brand :
Neutral
Description

FS 40-6 Contitech Air Spring Smallest Size Max Dia. 145mm with Two Nuts

GUOMAT1B40-6 Technical Parameters Replace FS 40-6

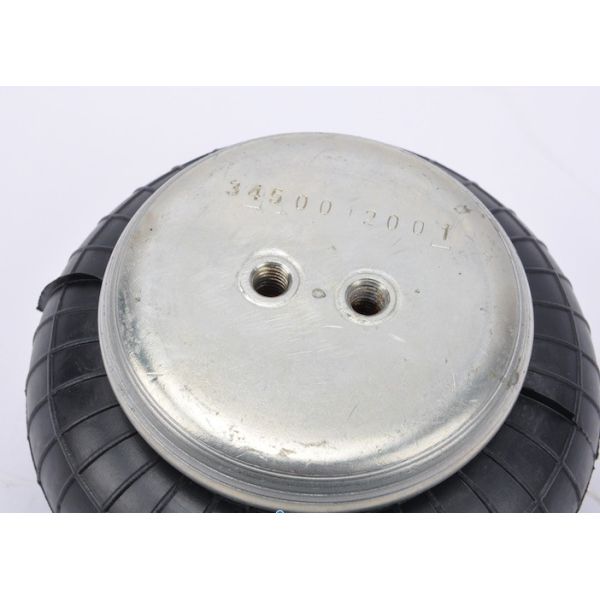

❶ Nut / Blind Nut

Top Cover Plate Screw number: 2 pcs

Bottom Cover Plate Screw number : 2 pcs

The Distance of Nut:44.5 mm

The Screw Of Nut: M8

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/8

❸ Cover Plate

Top Cover Plate Diameter: 90 mm

Bottom Cover Plate Diameter: 90mm

❹ Rubber Bellows

Rubber Bellows Through Diameter: 130 mm

In 0.7 pa,Rubber Bellows Diameter :145 mm

The Working Stroke : MIN 50 mm to MAX 110 mm

Rubber Bellows Design Height :70 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

Without Piece Of Girdle Hoop

FS40-6 OEM Original Equipment Manufacturer:

Phoenix

SP1B04 ;

SP 1B04

SP 1B 04
Weforma

WBE100-E1

WBE 100-E1
contitech FS 40-6
contitenal

FS40-6

FS406

Technical data of FS40-6
Min. pressure 0 bar
Return force to min. height ≤ 120 N
Overall weight with clamped plates 0.9 kg

Number of Convolutions Single
Port Size G1/8
Stroke Length 60 MM
Cylinder Type Standard
End Cap Material Steel

Vibration isolation - dynamic characteristic values of FS40-6
Design height H: recommended 90mm, minimum 70mm
Pressure p [bar] 3 4 5 6 7 8 Vol. V[l]
Force (Load) [KN] 1.7 2.3 2.8 3.4 3.8 4.4 0.5
Spring rate [N/cm] 760 990 1220 1480 1610 1820
Natural frequency [Hz] 3.5 3.3 3.3 3.3 3.2 3.2

Pneumatic application - static characteristic values of FS40-6
Force F [kN]
Pressure p [bar] 3 4 5 6 7 8 Vol. V[l]
Height H [mm] 60 2.6 3.5 4.3 5.2 6.1 6.9 0.3
　70 2.3 3.2 3.9 4.7 5.4 6.2 0.4
　80 2.1 2.8 3.5 4.2 4.9 5.3 0.5
　90 1.7 2.2 2.8 3.4 3.9 4.4 0.5
　100 1.2 1.6 2 2.5 3 3.4 0.6

1B 40-6 CI G 1/8 CA Bellows Style Industrial Air Spring Refer to FS 40-6 Contitech:


Single Convoluted,
40cm sq Effective Area,
60 cm Max Stroke,
Crimped Bead Plate,
Female Mounting Threads, G1/8 BSPP, Centered,
Steel
Manufacturer: GUOMAT
Max Inflation Pressure
120 psi
Air Inlet Type:Metric
Series:C
Bellows Type:Single Convoluted
Weight:2.65 lbs.
Manufacturer Part Number: 1B40-6

FS 40-6 Contitech Air Spring Max Dia 145mm With Two NutsFS 40-6 Contitech Air Spring Max Dia 145mm With Two Nuts

Single Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO. Contitech NO. Min. Design height Installation Space Required Max. Stroke
1B4060 FS 40-6 50 160 60
1B5050 FS 50-5 51 165 44
1B7070 FS 70-7 51 180 64
1B10010 FS 100-10 51 225 94
1B1209 FS 120-9 50 230 85
1B1210 FS 120-10 51 245 99
1B12012 FS 120-12 51 250 119
1B20010 FS 200-10 51 265 89
1B33011 FS 330-11 51 340 99
1B33014 FS 330-14 51 360 129
1B53011 FS 530-11 51 400 124
1B53014 FS 530-14 51 420 134
1B96012 FS 960-12 63 480 117
1B133011 FS 1330-11 63 570 107
Double Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO. Contitech NO. Min. Design height Installation Space Required Max. Stroke
2B33022 FD 330-22 75 340 230
2B33030 FD 330-30 77 355 283
2B53022 FD 530-22 77 400 233
2B53030 FD 530-30 77 415 273
2B53035 FD 530-35 77 420 313
2B96022 FD 960-22 95 490 225
2B133025 FD 1330-25 92 570 243
Triple Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO. Contitech NO. Min. Design height Installation Space Required Max. Stroke
3B33029 FT 330-29 110 345 320
3B43032 FT 430-32 115 355 315
3B53032 FT 530-32 110 410 325
3B53035 FT 530-35 115 430 395
3B96034 FT 960-34 120 510 335
3B133035 FT 1330-35 120 570 350
