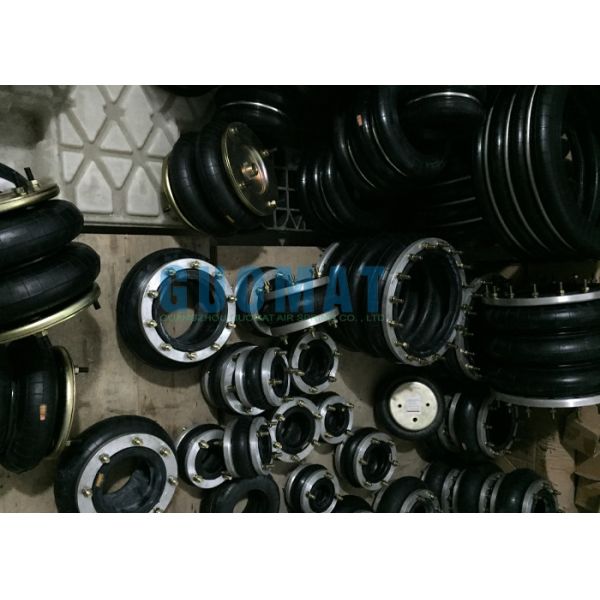

FS 2870-16 RS Germany CONTITECH Industrial Air Spring High Strength Construction Firestone W01-358-7737

Guomat 1F6972 Industrial Single Convoluted Air Spring Specifications

❶Nut / Blind Nut

The Long Of The Nut:38 mm

Top Cover Plate Screw number: 32 pcs

Bottom Cover Plate Screw number : 32 pcs

Top Cover Plate Screw (Nut) Tooth : 3/8

Screw Center Distance of Top Cover Plate : 596 mm

Bottom Cover Plate Screw (Nut) Tooth :3/8

Screw Center Distance of Bottom Cover Plate : 596 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

❸ Cover Plate

Top Cover Plate Diameter: 638 mm

Bottom Cover Plate Diameter:638 mm

❹Rubber Bellows

Rubber Bellows MAXl Diameter : 709mm

Rubber Bellows Natural Height :680 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

Without Girdle Hoop

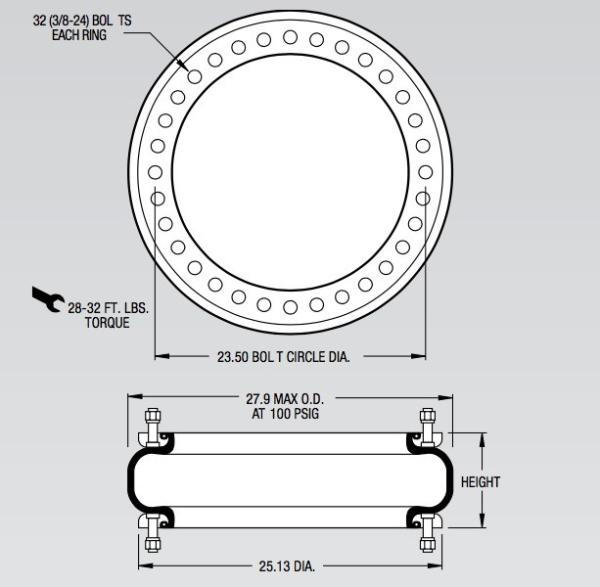

FS 2870-16 RS UNF HP,

bellows type industrial air spring,

single-turn, effective area 2870cm square,

maximum stroke 16cm,

stud bolt installation,

inch seal ring,

high strength 175 PSI Max
Manufacturer: Mainland
Maximum inflation pressure
120 psi
series
life value
Bellows type
Single convolution
weight
24.5 pounds

Style 138-1.5 High Strength Con-struction

Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers
W01-358-7737

W01-358-7734
Rubber bellows only
W01-358-0147

The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects

❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate

❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
