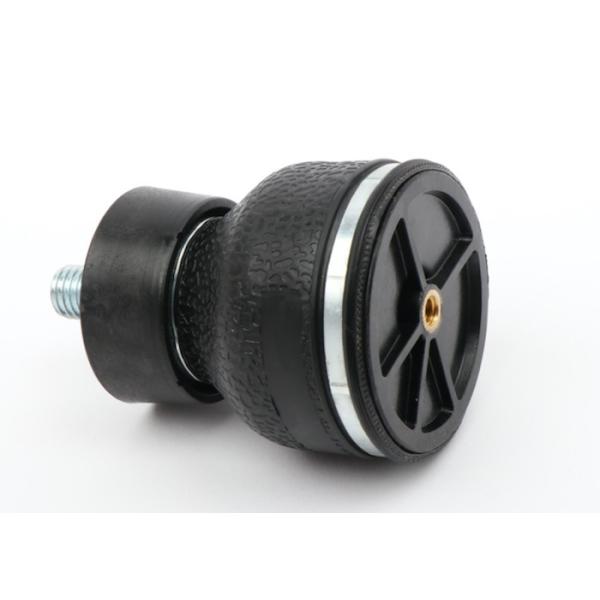

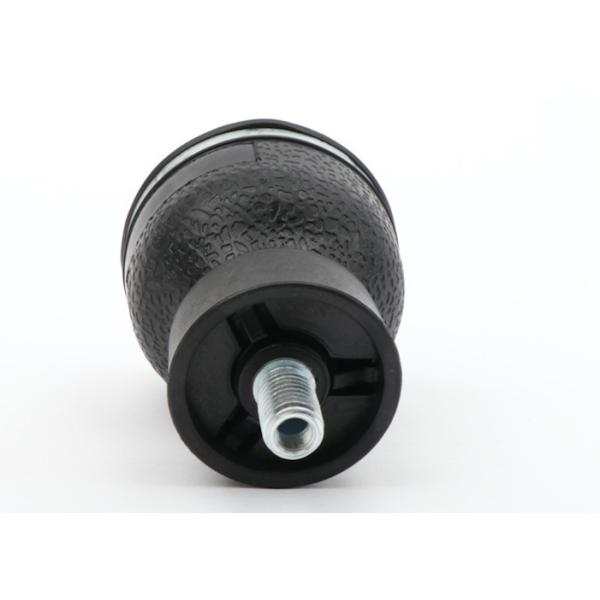

W02-358-3003 Style 1M1A-1 Suspension Air Spring Bags With Brass Stud 1/8 NPT
W02-358-3003 Style 1M1A-1 Suspension Air Spring Bags With Brass Stud 1/8 NPT
W02-358-3003 Style 1M1A-1 Suspension Air Spring Bags With Brass Stud 1/8 NPT
W02-358-3003 Style 1M1A-1 Suspension Air Spring Bags With Brass Stud 1/8 NPT
W02-358-3003 Style 1M1A-1 Suspension Air Spring Bags With Brass Stud 1/8 NPT
W02-358-3003 Style 1M1A-1 Suspension Air Spring Bags With Brass Stud 1/8 NPT
W02-358-3003 Style 1M1A-1 Suspension Air Spring Bags With Brass Stud 1/8 NPT
W02-358-3003 Style 1M1A-1 Suspension Air Spring Bags With Brass Stud 1/8 NPT
Specifications
Brand Name :
GUOMAT
Model Number :
G303
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong , China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal and Others
Supply Ability :
10000 pcs / week
Delivery Time :
2 - 8 Work Days
Packaging Details :
Strong Carton Box or as Customer's Require
Main Material :
Steel Rubber
Position :
Seat
Net Weight :
0.28 kg
Other Name :
AIR Spring Bags
Car Make :
Motorcycle Seat
OEM 2 :
W02-358-3003
Status :
Brand New
Spring Type :
Gas Filled
Material :
2-Ply Standard Cord
Description

W02-358-3003 Style 1M1A-1 Suspension Air Spring Bags With Brass Stud 1/8 NPT



Cross OEM Of this item:

GUOMAT:G3003

Firestone Rubber bellows NO.:1M1A-1

Firestone NO.:W02-M58-3003

Firestone NO.:W02M583003

Firestone NO.: W02 M58 3003

Style 1M1A-1

Two Ply Rubber Bellows

Description Assembly Order No.

Blind nut, 1/8 NPT,

plastic stud W02-M58-3003

Blind nut, 1/8 NPT,

brass stud W02-M58-3003

Blind nut, 1/8 NPT, brass

stud, stainless steel ring W02-M58-3005


Descripition and Specifications Of G3003:

G3003 Technical Parameters
Top Cover Plate Diameter 73 mm
Bottom Cover Plate Diameter 61 mm
Screw Center Distance 0 mm
Distance Gas Hole Between Nut together
Gas Hole 1/8 NPT
Screw (Nut) Tooth 1 pcX5/8 x 1.25
1 pcX5/16 x 2
Rubber Bellows MAX Diameter 86.36 mm
The Stroke 38-113 mm

GUOMAT air spring solemn commitment to the customer:

1, we don't spell at a low price, we only make quality products.
2, the same price on the market of air spring, we must be the best quality.
3, the same quality of air spring on the market, we must be the best price.
4, different regions, the same price of air spring there will be a slight difference, because of considering the freight after wait for a reason.
5, GUOMAT air spring not profiteering, only genuine, solid products.
6, all customers for the product quality problems need to be replaced, we have to change.


Packing List of G3003 Air Spring :

Description PCS Net Weight Package Weight Gross Weight Length
(cm)		 Width
(cm)		 Height
(cm)		 Measurememt
(cbm)
Air Suspension 1 0.6 kg 0.4 kg 1.0 kg 12 9.2 9.2 0.00102
Shipping Terms By DHL/UPS/FEDEX/TNT/AIRWAY/LCL/FCL or By Sea. It will take about 1 to 4 working days to reach By Express.
Payment Terms T/T, Western Union,Paypal and Others

Other models GUOMAT can produce:

Style 2M1A Two Ply Bellows
1/8 BSP, each end:W02-M58-3002,W02 M58 3002,W02M583002
Assembly weight :0.27 kg.
Force to collapse to minimum height (@ 0 BAR).133.5 N.

Style 2M2A Two Ply Bellows
Blind Nut, 1/8 BSP,plastic studs W02-M58-3019,W02 M58 019,W02M583019
Assembly weight:0.07 kg.
Force to collapse to minimum height (@ 0 BAR) ....22 N.

W02-358-3003 Style 1M1A-1 Suspension Air Spring Bags With Brass Stud 1/8 NPTW02-358-3003 Style 1M1A-1 Suspension Air Spring Bags With Brass Stud 1/8 NPT

Style Number Design Height Load (at Design Height) at: Natural Frequency % of Isolation at Forced Frequency
••40 PSIG (pounds) 60 PSIG (pounds) 80 PSIG (pounds) (@ 80 PSIG) fn(cpm) 400 CPM % 800 CPM % 1500 CPM %
SHAPED SLEEVE
1M1A-0 2.5 210 330 450 220 91.8 97.8
1M1A-1 3.0 235 356 475 162 80.2 95.7 98.8
2M1A DO NOT USE 2M1A AS AN AIRMOUNT ISOLATOR
2M2A 2.0 95 140 184 210 92.6 98.0
