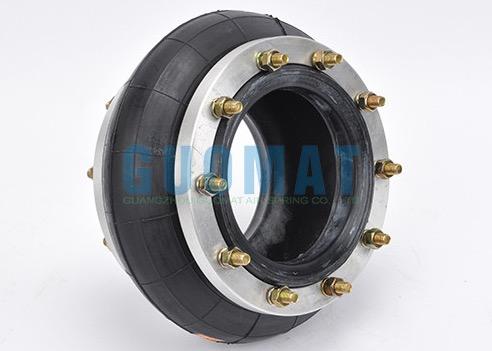

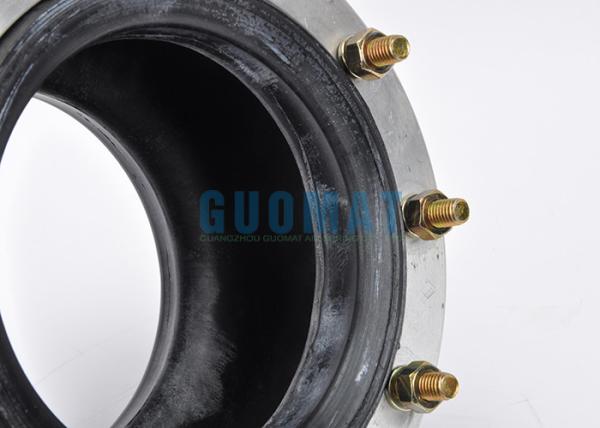

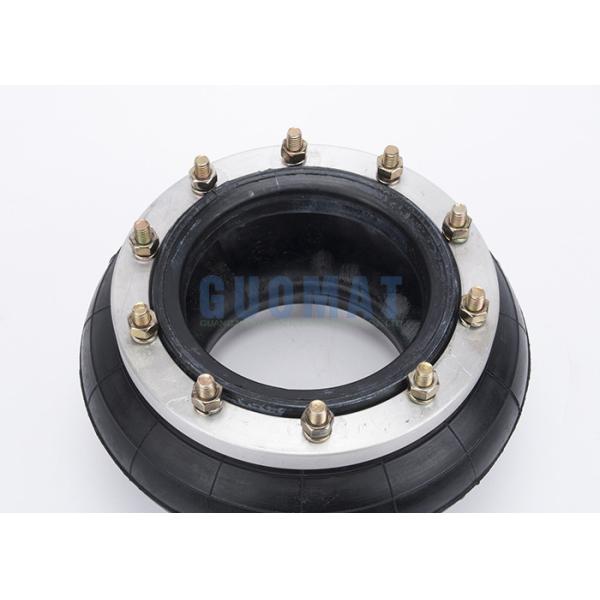

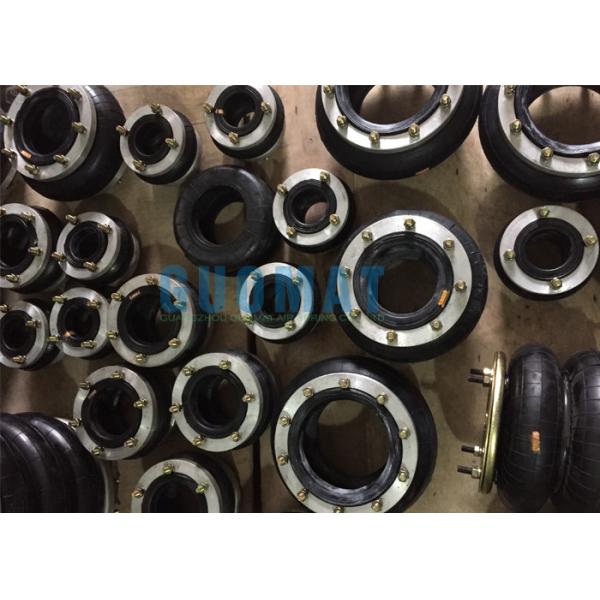

320124H-1 Industrial Air Spring Single Convoluted Bags For Conveyers With 10 Pcs Nuts

Guomat 320124H-1 Industrial Single Convoluted Air Spring Specifications

❶Nut / Blind Nut

The Long Of The Nut:25 mm

Top Cover Plate Screw number: 10 pcs

Bottom Cover Plate Screw number : 10 pcs

Top Cover Plate Screw (Nut) Tooth : M10

Bottom Cover Plate Screw (Nut) Tooth : M10

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

❸ Cover Plate

Top Cover Plate Diameter: 235 mm

Bottom Cover Plate Diameter: 235 mm

❹Rubber Bellows

The Opening Of The Rubber Bellows:230mm

The Through Diameter Of Rubber Bellows:230mm

Rubber Bellows MAX Diameter : 340 mm

Rubber Bellows Natural Height :124 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

Without Girdle Hoop

Technical performance parameter list of 320124H-1 air spring:

Bearing
load
Power
(kg)		 Inflation pressure 0.2MPa 0.3MPa 0.4MPa 0.5MPa 0.6MPa 0.7MPa 0.8MPa 0.7MPa
Volume(dm³)
Installation height
60(mm) 1168 1769 2371 2956 3575 4177 4778 3.13
77(mm) 1104 1660 2245 2810 3394 3960 4542 3.94
94(mm) 1021 1540 2067 2585 3121 3660 4195 4.79
111(mm) 921 1401 1861 2340 2837 3333 3829 5.54
124(mm) 798 1228 1647 2071 2520 2965 3428 6.13
142(mm) 657 1006 1367 1732 2098 2496 2903 6.90
162(mm) 514 797 1079 1380 1699 2035 2371 7.67
Stiffness and frequency at design height Vertical stiffness(Kg/cm) 215 298 359 439 537 616 704
Stiffness and frequency at design height 垂直刚度Hz 2.60 2.47 2.34 2.34 2.31 2.28 2.27
Stiffness and frequency at design height 垂直刚度cpm 156 148 140 140 139 137 136

Other kind of air springs models

Models NO. Load Design H. Min. H. Safe Elongation Full Stroke
320124H-1 2965 90 52 142 90
280126H-1 2370 94 50 195 94
260135H-1 1670 159 55 155 159
215120H-1 1109 98 42 140 98
188102H-1A 862 63 52 115 63
150076H-1 621 39 46 85 39
120060H-1 444 23 42 65 23
086060H-1 175 48 42 90 48

The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects

❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate

❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.

GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!

  • They almost do not need to maintain.
  • Increase the service life of tires and brake pads.
  • Let you pull anything; Eliminate expensive admission cost.
  • Greatly reduce the breakage of the other vehicle components and maintenance.
  • Back to you in the scrappage, truck and trailer with air suspension is more valuable.
  • Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
  • Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
  • To provide smooth to load, reduce the cost of expensive insurance claims and packaging.
