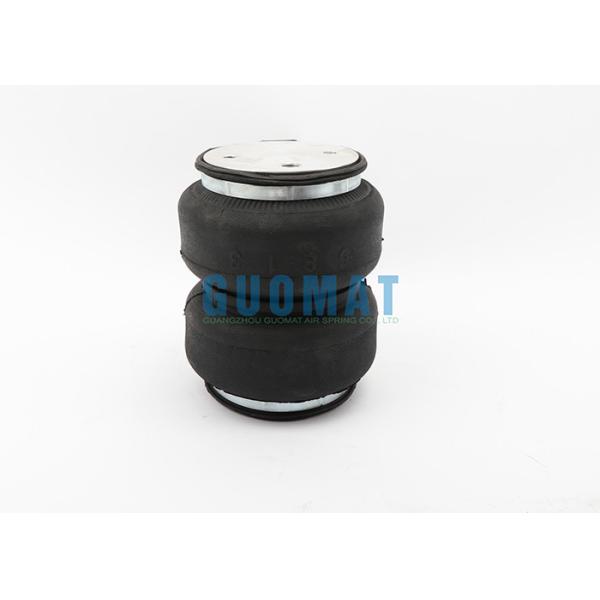

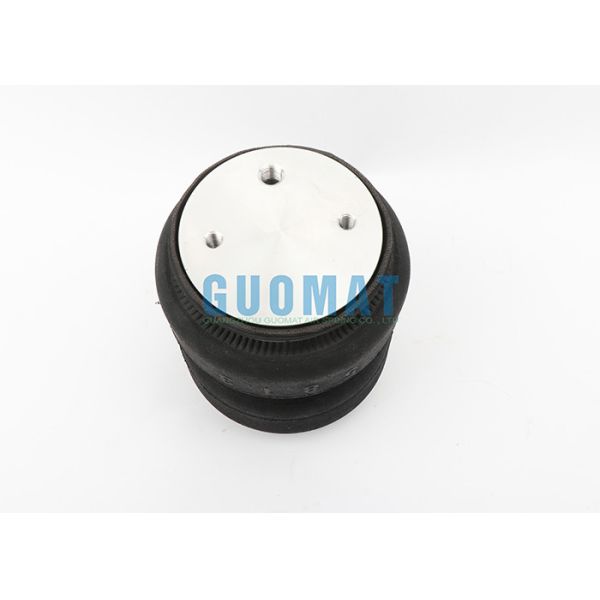

130118K-2 Industrial Double Convoluted Air Spring For Single End Board Trim Saws

Guomat 130118K-2 Industrial Double Convoluted Air Spring Specifications

❶Nut / Blind Nut

The Long Of The Nut:25 mm

Top Cover Plate Screw number: 2 pcs

Bottom Cover Plate Screw number : 2 pcs

Top Cover Plate Screw (Nut) Tooth : M8

Screw Center Distance of Top Cover Plate :44.5 mm

Bottom Cover Plate Screw (Nut) Tooth : M8

Screw Center Distance of Bottom Cover Plate : 44.5 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/4

❸ Cover Plate

Top Cover Plate Diameter: 85 mm

Bottom Cover Plate Diameter: 85 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter : 130 mm

Rubber Bellows MAX Diameter : 150 mm

Rubber Bellows Natural Height :118 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop: one piece of Girdle Hoop

GUOMAT have following K type air spring :All size units are mm:

The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects

❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate

❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.

GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!

• They almost do not need to maintain.
• Increase the service life of tires and brake pads.
• Let you pull anything; Eliminate expensive admission cost.
• Greatly reduce the breakage of the other vehicle components and maintenance.
• Back to you in the scrappage, truck and trailer with air suspension is more valuable.
• Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
• Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
• To provide smooth to load, reduce the cost of expensive insurance claims and packaging.
