Specifications
Brand Name :
CONTITECH
Model Number :
FD330-22 G1/4
Certification :
ISO/TS16949:2009
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Steel And Rubber
CONTITECH :
FD 330-22 G1/4
Warranty :
12 Months
Weight :
4.8kg
Other Name :
Air Suspension CONTITECH Parts
Pressure Ability :
0.2-0.8 M Pa
Air Inlet :
G1/4
air inlet excentrical :
73 mm
Description

FD330-22 CONTITECH Air Spring Original Double Convolution For Industrial Washing Machinery

Technical Parameters of FD330-22 CONTITECH Air Spring

1 Top Screw (Nut) Tooth 2pcsXM8-15 mm deep

2 Top Cover Plate Diameter 231mm

3 Bottom Cover Plate Diameter 231 mm

4 Screw Center Distance 157 mm

5 With clamped plates G 1/4 air inlet 73 mm excentrical

6 Distance Gas Hole Between Nut 73 mm

7 Gas Hole G1/4

8 Bottom Screw (Nut) Tooth 2pcsXM8-15 mm deep

9 Rubber Bellows MAX diameter 325 mm

10 The Stroke 81-305 mm

11 eturn force to min. height:≤ 300 N

12 Overall weight with clamped plates:4.8 kg

OEM Original Equipment Manufacturer:

BELLOW NO. COMPLETE NO. COMPLETE NO.
AIRKRAFT 114301 AIRKRAFT 113333 AIRKRAFT 113491
FIRESTONE FLEX 22 CONTITECH FD 330-22 313 FIRESTONE W01-358-7184
FIRESTONE W01 358 0226 FIRESTONE W01 358 7400 GOODYEAR 2B12-429
95.0037 GOODYEAR 2B12-309 GOODYEAR FLEX 578-92-3-309
95.0082 GOODYEAR FLEX 578-92-3-309 AIRKRAFT 113492
GOODYEAR 556 2 3 8210 TAURUS KF 222-7400 FIRESTONE W01-358-7185
PHOENIX 2B 22R AIRKRAFT 113490

GOODYEAR 2B12- 318

Goodyear Part # 2B12-311 Goodyear-Firestone Cross Reference‚ 2B12-425 Goodyear-Firestone Cross Reference‚ 2B12-437 Goodyear-Firestone Cross Reference
PIRELLI T22 88544 CONTITECH FD 330-22 363 GOODYEAR FLEX 578-92-3-309
　 FIRESTONE W01-358-7180 　
　 GOODYEAR 2B12 425 　
　 GOODYEAR FLEX 578-92-3-309 　


Contitech: FD 330-22 363

Firestone: W01-358-7180/22
Goodyear: 2B12-425/311

Goodyear: 578923309
Hendrickson : 1VA1816
Triangle : 6316/4363
Kwiklok/Todco(Jifflox)
Leland : Sc2075
Navistar : 1685179C1
EI Ride : 8030190
SAF Holland : 57007180
Watson&Chalinl : AS01541G/01881F
Vibracoustic : VSP2B22R7180
Ridewell : 1003587180C
Peerless : 0550 00001

The usal kinds of Double Convolution Air Springs

Double Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO. Contitech NO. Min. Design height Installation Space Required Max. Stroke
2B33022 FD 330-22 75 340 230
2B33030 FD 330-30 77 355 283
2B53022 FD 530-22 77 400 233
2B53030 FD 530-30 77 415 273
2B53035 FD 530-35 77 420 313
2B96022 FD 960-22 95 490 225
2B133025 FD 1330-25 92 570 243

Use in many applications including:

  • Conveyor terminal
  • Hospital diagnostic table lifting actuator
  • Reciprocating shaft seal
  • Shock absorber test system
  • Underwater actuator for door control
  • Washing equipment
  • Wood locator actuators for sawmills
  • Concrete block mechanical actuator
  • Air spring for mining equipment
  • Direct acting power supply in forming presses (metal and plastic)
  • Power supply for compactor
  • Mechanical coupling
  • Power supply for laminated plywood press
  • Granite slab locator
  • Pallet elevator

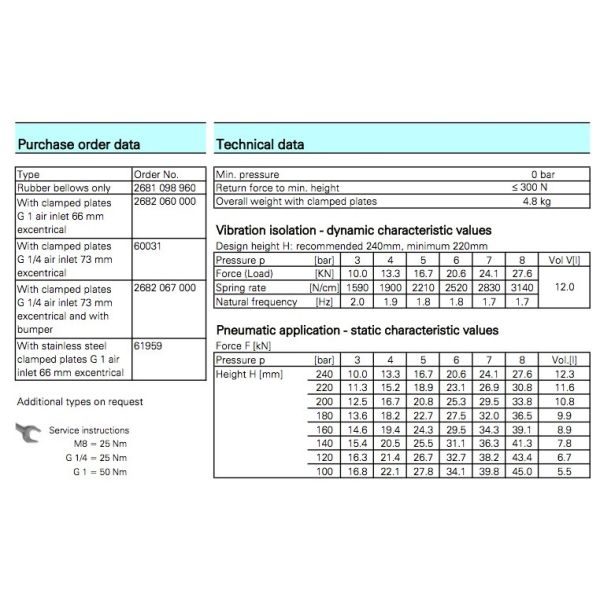

Purchase order data and Technical data of FD330-22:

FD330-22 CONTITECH Industrial Air Spring For Washing Machinery

FD330-22 CONTITECH Industrial Air Spring For Washing MachineryFD330-22 CONTITECH Industrial Air Spring For Washing MachineryFD330-22 CONTITECH Industrial Air Spring For Washing Machinery

Other kinds of FD 330-22 that GUOMAT have:

GUOMAT NO. Reference Order NO. Force (lbs) Max OD (in) Design height(in) Height Narural frequ.[cpm]
80 psi 100 psi Min MAX
FD 330 22 313 FD 330-22 313 161016 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 318 FD 330-22 318 161270 4200 5250 12.9 9.5 3 12 102
FD 330 22 327 FD 330-22 327 161029 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 331 FD 330-22 331 161009 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 334 FD 330-22 334 161271 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 337 FD 330-22 337 161272 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 343 FD 330-22 343 161273 4200 5250 12.9 9.5 3 12 102
FD 330 22 346 FD 330-22 346 161274 4200 5250 12.9 9.5 3 12 102
FD 330 22 363 FD 330-22 363 161275 4200 5250 12.9 9.5 3 12 102
FD 330 22 364 FD 330-22 364 161276 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 365 FD 330-22 365 161277 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 366 FD 330-22 366 161278 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 367 FD 330-22 367 161279 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 368 FD 330-22 368 161280 4200 5250 12.9 9.5 3 12 102
FD 330 22 465 FD 330-22 465 161281 4200 5250 12.9 9.5 3 12 102
FD 330 22 471 FD 330-22 471 161282 4200 5250 12.9 9.5 4.1 12 102
FD 330 22 472 FD 330-22 472 161283 4200 5250 12.9 9.5 3 12 102
FD 330 22 500 FD 330-22 500 161284 4200 5250 12.9 9.5 3 12 102
FD 330 22 540 FD 330-22 540 161285 4200 5250 12.9 9.5 4.1 12 102
