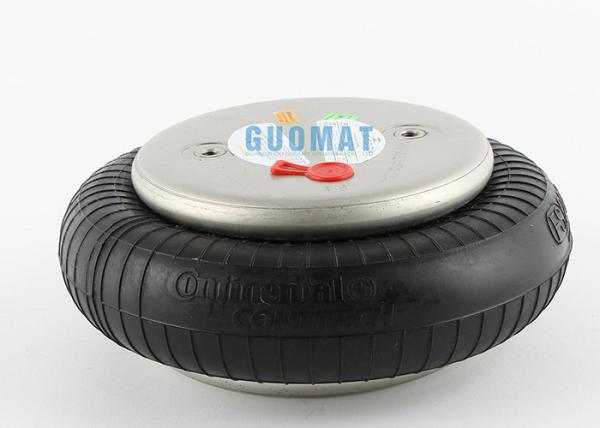

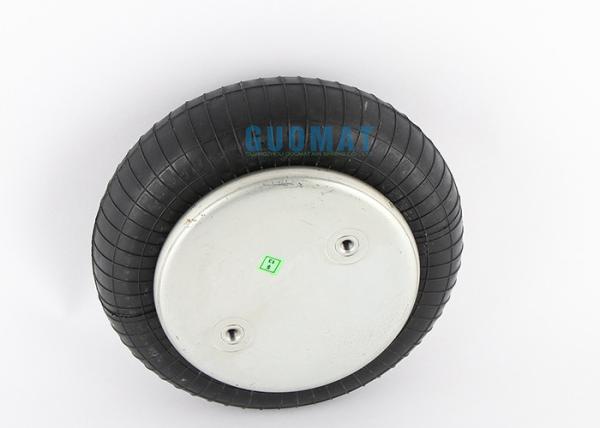

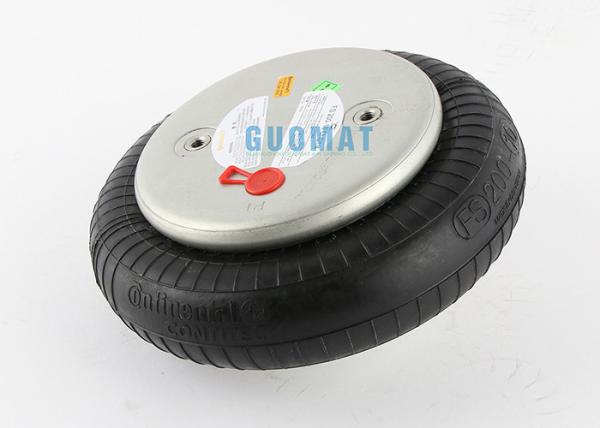

Festo Bellows Cylinders EB-215-80 Industrial Air Springs Dunlop 8’’x1 S08101 With Metric M8

EB-215-80 Festo Product Description

Air spring shock absorbers can only drive the bellows against the workpiece, otherwise they must be equipped with a stroke limit stop at the end of the stroke, otherwise the bellows will be overloaded
• In order to press the air spring shock absorber to the minimum height, a reset force is required. Usually, this is achieved by applying a load
• The entire bearing surface of the upper and lower plates of the air spring shock absorber must be used to absorb force
• Before disassembling the air spring shock absorber, the internal air must be released to prevent accidents and personal injury
• During operation, the rubber air spring shock absorber must not be in contact with other parts

EB-215-80 Festo OEM Cross others:

GUOMAT Parts NO.:1B1209-3/4

Festo Parts NO.: EB-215-80

Festo Parts NO.: EB 215 80

Festo Parts NO.: EB21580

Firestone Parts NO.: W01-M58-6165

Firestone Parts NO.: W01 M58 6165
Firestone Parts NO.: W01M586165

Contitech Parts NO.:FS 120-9
Contitech Parts NO.:FS 120 9

Contitech Parts NO.:FS 1209

Dunlop(FR) Parts NO.:8"x1 S08101

Dunlop(FR) Parts NO.:8x1 S08101

Dunlop(FR) Parts NO.:8*1 S08101

Dunlop(FR) Parts NO.: S08101

Dunlop(FR) Parts NO.:8"x1

Dunlop(FR) Parts NO.:8x1

Dunlop(FR) Parts NO.:8*1

Bosch Parts NO.: 822419003

Norgren Parts NO.: PM/31081
Norgren Parts NO.: PM 31081

Norgren Parts NO.: PM31081

Norgren Parts NO.: 8x1

Norgren Parts NO.: 8"x1

Norgren Parts NO.: 8*1

Weforma Parts NO.: WBE 300-E1
Weforma Parts NO.: WBE 300 E1

Weforma Parts NO.: WBE300E1

Airtech Parts NO.: 140293
Airtech Parts NO.: 111003/1 B-190FB

Airtech Parts NO.: 111003

Airtech Parts NO.:1 B-190FB

Megatech Parts NO.: 1S120-9 3/4 M8

Megatech Parts NO.: 1S120 9 3/4 M8

Megatech Parts NO.: 1S1209 3/4 M8

EB-215-80 Festo Technical Data

❶Nut/blind nut

Top plate screw (nut) teeth: 2 XM8
The screw center distance of the top cover plate: 70 mm
Screw (nut) teeth of the bottom cover plate: 2 XM8
The screw center distance of the bottom cover plate: 70 mm

❷Air hole/air inlet/air fitting
Air hole/air inlet: G3 / 4
The screw center distance between the air hole and the nut: 35 mm

❸cover
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm

Bell rubber bellows
Maximum diameter of rubber bellows: 215 mm
Natural diameter of rubber bellows: 200 mm
Working stroke: minimum 50 mm to maximum 115 mm
Maximum height: 115 mm
Minimum height: 50mm
Stroke height: 65mm

❺Bumper block/bumper block
No bumper block

❻Belt loop/Belt loop
With belt loop: Without belt loop

EB-215-80 Sizes:

PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

Bellows cylinders EB
Technical data
