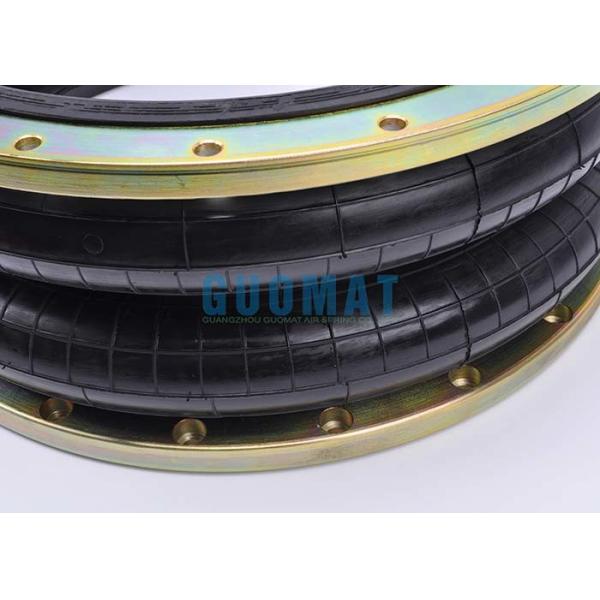

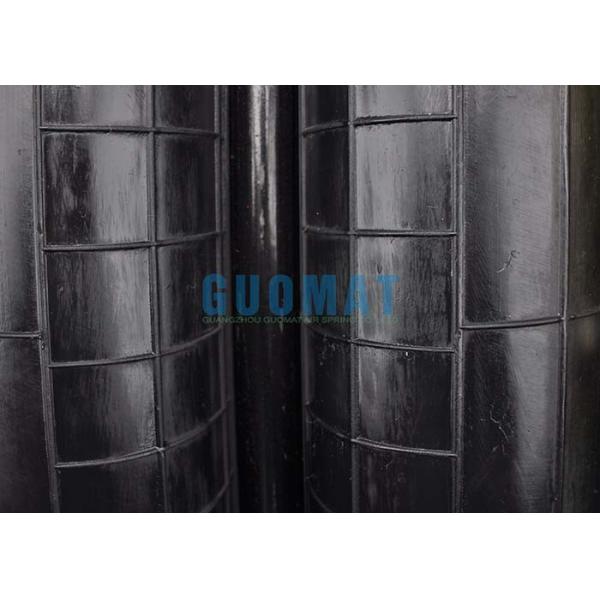

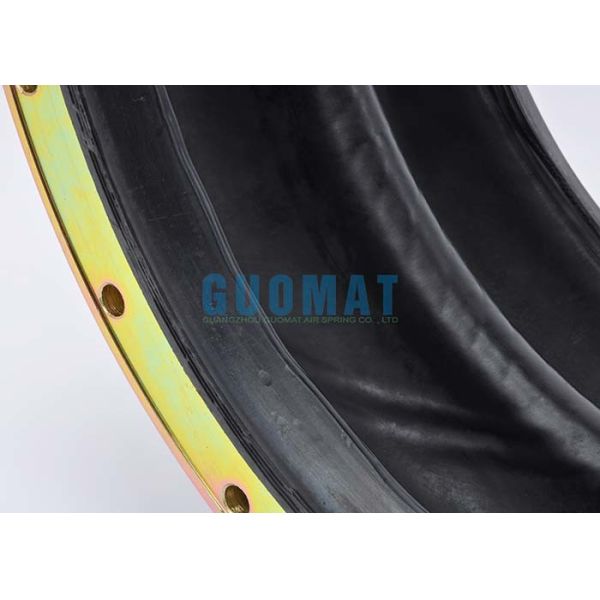

Firestone Air Spring 207 Ribbed Neck Aluminum Bead Rings W01-M58-6987
Firestone Air Spring 207 Ribbed Neck Aluminum Bead Rings W01-M58-6987
Firestone Air Spring 207 Ribbed Neck Aluminum Bead Rings W01-M58-6987
Firestone Air Spring 207 Ribbed Neck Aluminum Bead Rings W01-M58-6987
Firestone Air Spring 207 Ribbed Neck Aluminum Bead Rings W01-M58-6987
Firestone Air Spring 207 Ribbed Neck Aluminum Bead Rings W01-M58-6987
Firestone Air Spring 207 Ribbed Neck Aluminum Bead Rings W01-M58-6987
Firestone Air Spring 207 Ribbed Neck Aluminum Bead Rings W01-M58-6987
Firestone Air Spring 207 Ribbed Neck Aluminum Bead Rings W01-M58-6987
Firestone Air Spring 207 Ribbed Neck Aluminum Bead Rings W01-M58-6987
Specifications
Brand Name :
GUOMAT
Model Number :
520217H-2D
Certification :
ISO/TS16949:2009
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Aluminum alloy And Rubber
Firestone :
W01-M58-6987
Warranty :
12 Months
Net Weight :
29 KG
Other Name :
Air Spring Shock Isolator
Pressure Ability :
0.2-0.8 M Pa
Gross Weight :
31 KG
Flange Ring :
With
Connection Method :
Flange Connection
Description

W01-M58-6987 Firestone Air Spring High Strength Con- struction Style 207 Ribbed Neck Aluminum Bead Rings

GUOMAT NO.520217H-2D Air Spring Specifications

GUOMAT NO.520217H-2D
Firestone:Style 207
Ribbed neck aluminum
bead rings (equal spacing),
45 mm bolts, nuts, washers
Firestone:Order No.: W01-M58-6987;

Firestone:W01 M58 6987;

Firestone:W01M586987

High Strength Construction

Rubber bellows only
Firestone Rubber bellows:Order No.: W01-358-0207;

Firestone Rubber bellows:W01 358 0207;

Firestone Rubber bellows:W013580207

GUOMAT NO.520217H-2​D Force Table (Use for Airstroke™ actuator design)
Assembly Height (mm) Volume @ 7 BAR (cu cm) EFF Area @ 7 BAR (cm sq) @ 3 BAR @ 4 BAR @ 5 BAR @ 6 BAR @ 7 BAR
280 53863 1317 37.03 50.72 64.11 78.82 92.17
240 47704 1618 47.12 63.62 80.06 97.4 113.25
200 40443 1814 53.26 72.74 90.77 109.45 127
160 32306 1962 57.95 78.61 98.18 118.39 137.31
120 23824 2110 62.84 84.57 105.81 127.52 147.69
80 15280 2255 67.74 90.95 113.48 136.38 157.84

GUOMAT NO.520217H-2​D Dynamic Characteristics at 240 mm Design Height (Required for Airmount isolator design only)
Gauge
Pressure
(BAR)		 Load (KN) Spring Rate (kN/m) Natural Frequency Hz
3 47.12 497 1.62
4 63.62 663 1.61
5 80.06 795 1.57
6 97.4 923 1.54
7 113.25 1050 1.52

Firestone Air Spring 207 Ribbed Neck Aluminum Bead Rings W01-M58-6987Firestone Air Spring 207 Ribbed Neck Aluminum Bead Rings W01-M58-6987

Firestone Air Spring 207 Ribbed Neck Aluminum Bead Rings W01-M58-6987
