W01-358-7306 Firestone Industrial Air Spring Screw Holes Two Ply
W01-358-7306 Firestone Industrial Air Spring Screw Holes Two Ply
W01-358-7306 Firestone Industrial Air Spring Screw Holes Two Ply
W01-358-7306 Firestone Industrial Air Spring Screw Holes Two Ply
W01-358-7306 Firestone Industrial Air Spring Screw Holes Two Ply
W01-358-7306 Firestone Industrial Air Spring Screw Holes Two Ply
W01-358-7306 Firestone Industrial Air Spring Screw Holes Two Ply
W01-358-7306 Firestone Industrial Air Spring Screw Holes Two Ply
Specifications
Brand Name :
GUOMAT
Model Number :
3H580384
Certification :
ISO/TS16949:2009
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Aluminum alloy And Rubber
Firestone :
W01-358-7306
Warranty :
12 Months
Net Weight :
19.5 KG
Other Name :
Industry Air Spring Isolator
Pressure Ability :
0.2-0.8 M Pa
Gross Weight :
20.5 KG
Flange Ring :
With or Without
Connection Method :
Flange Connection
Flange ring size :
638 mm
BOLT CIRCLE DIA :
596 mm
Description

W01-358-7306 Firestone Industrial Air Springs Inch Screw Holes Two Ply High Strength Bellows Style 321

Industrial Triple Convoluted Air Spring Specifications

Description Assembly

Description
Assembly Order No.
Style 321

Ribbed neck aluminum beadrings (unequal spacing) 17/8 b,n,w

Firestone Bellows Number :321
Firestone Parts Number :W01-358-7306

Firestone Parts Number : W01 358 7306

Firestone Parts Number : W013587306

The sizes of W01-358-7306 Firestone Air Spring:

Manufacturer Part Number

W01-358-7306,

W013587306,

W01 358 7306

WO1-358-7306, WO13587306

WO1 358 7306

 Bead ring Type 4
Maximum Diameter @ 7 Bar (mm) 709 Dim# C (Bolt Circle Diameter mm) 597
Maximum Height (mm) 114 # of Bolts (each ring) 32
Maximum Stroke (mm) 361 Design Height (mm) 381
Minimum Usable Height (mm) 475 3 Bar (kN) 78.5
25 mm (kN) 174.6 5 Bar (kN) 132.9
50% of Max Stroke (kN) 150 7 Bar (kN) 187.9
Maximum Stroke (kN) 106.5 Natural Frequency (@5 Bar)(fn(Hz) 1.2
Applicable Technigram? 113 7 Hz 97
Material 2-Ply, High Strength Cord 13 Hz 99.3
25 Hz 99.8

The data of W01-358-7306 Firestone Air Spring:

Assembly Height (mm)

440 400 360 320 280 240 200 160
Volume @ 7 BAR (cu cm) 135784 125615 114722 102796 90465 77839 64589 50778
EFF Area @ 7 BAR (cm sq) 2394 2596 2757 2897 3026 3151 3277 3407

kN Force

@3 BAR

 67.39 74.50 80.12 84.65 88.33 91.63 95.16 99.35

@4 BAR

 92.19 101.14 108.37 114.48 119.71 124.49 129.35 134.85

@5 BAR

 116.52 127.36 136.16 143.61 150.09 156.08 162.19 168.98

@6 BAR

 143.26 155.70 165.72 174.35 182.12 189.54 197.05 204.99

@7BAR

 167.54 181.66 192.94 202.76 211.80 220.56 229.36 238.43

The data 2 of W01-358-7306 Firestone Air Spring:

Dynamic Characteristics at 380 mm Design Height (Required for Airmount isolator design only)

Gauge

Pressure

(BAR)

 Load (KN) Spring Rate (kN/m) Natural Frequency Hz
3 77.48 465 1.22
4 104.95 592 1.18
5 132.00 716 1.16
6 160.98 839 1.14
7 187.60 954 1.12

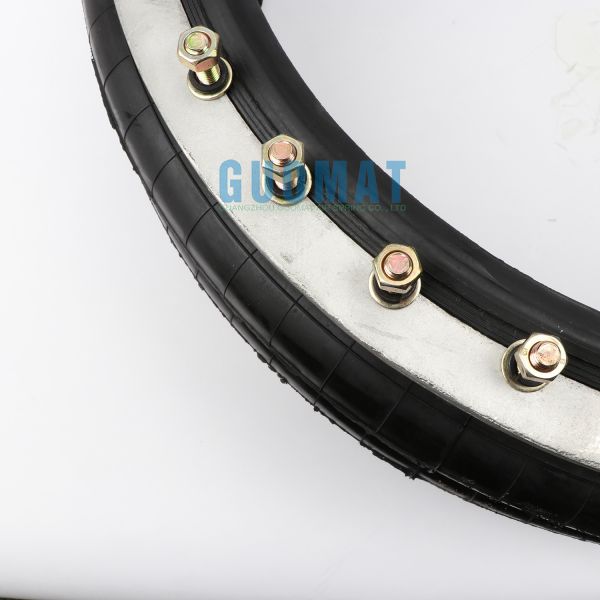

The detail pitures 1 of W01-358-7306 Firestone Air Spring:

W01-358-7306 Firestone Industrial Air Spring Screw Holes Two Ply

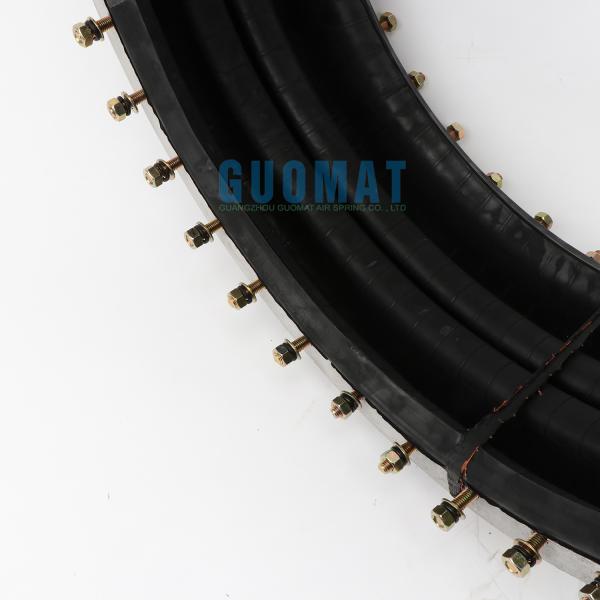

The detail pitures 2 of W01-358-7306 Firestone Air Spring:

W01-358-7306 Firestone Industrial Air Spring Screw Holes Two Ply
