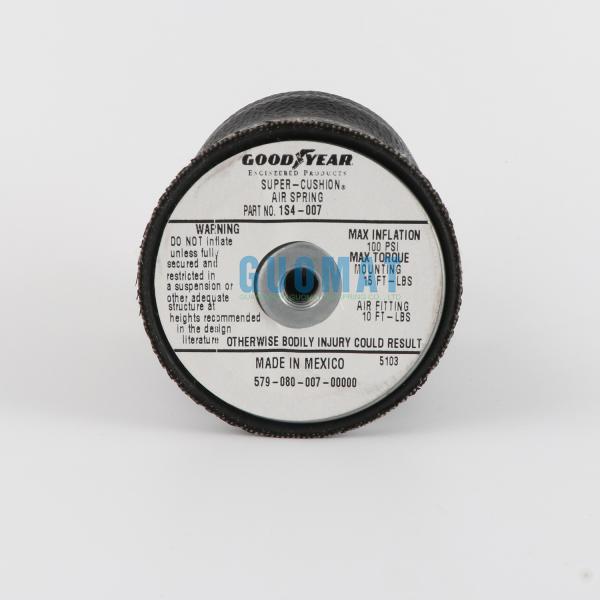

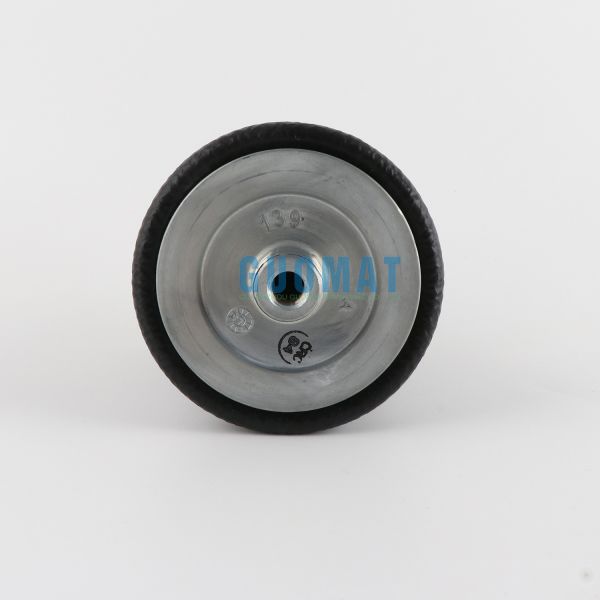

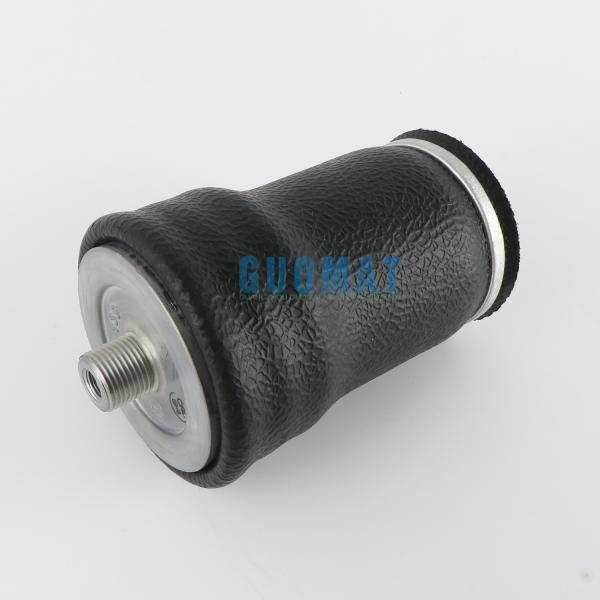

1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat
1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat
1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat
1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat
1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat
1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat
1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat
1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat
1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat
1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat
Specifications
Brand Name :
GUOMAT
Model Number :
1S4-007
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong , China
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal and Others
Supply Ability :
10000 pcs / week
Delivery Time :
2 - 8 Work Days
Packaging Details :
Strong Carton Box or as Customer's Require
Main Material :
Steel Rubber
Position :
Seat
Weight :
0.7 KG
Other Name :
Seat Air Spring
Car Make :
Mac-k truck TRUCK
OEM :
1S4-007
TRUCK :
227QS33
Goodyear :
1S4-007
Description

1S4-007 Goodyear Air Spring Sleeve Style Firestone W02-358-7031 For Mac-k truck 227QS33 Seat


Product description of 1S4-007 Goodyear Air Spring:

Goodyear sleeve airbag springs have many applications. The most common uses are passenger car springs and trucks, isolators and springs for truck cab and seat springs, and many common industrial applications. 1S4-007 sleeve air spring is durable and the length of service life.
Goodyear sleeve air springs will use flexible parts instead of internally molded weld beads. The flexible part is connected to the end of the holder by clamping the material between the end and the outer crimping ring, and then adjusting the outer crimping ring to an appropriate diameter.


1S4-007 Goodyear Air Spring Cross OEM:

Goodyear 1S4​​-007, AS7031, Firestone 7031, Firestone W02-358-7031, Link 1101-0020, Mac-k truck 227QS33, Goodyear 1S4​​-007, Duraform S9383, Triangle 5001, Euclid E-FS7031, Euclid FS7031, PAI FAS-4906.ASC-08-7-139, ASB-08-5-007, 7014, NBD-10082, 7049, NBD-10549, 7.00", green. Same as Dayton 453-7031, Dayton 453-7031L, Automann ABSZ70-7031,

Brand Goodyear
Item Weight 0.675 KG
Package Dimensions 51 x 31 x 18.5 cm
Item model number 1S4-007
Exterior Smooth
Manufacturer Part Number 1S4007
Cross OEM NO.
Firestone: W02-358-7001
W02 358 7001
W02 358 7001
Firestone: W02-358-7002
W02 358 7002
W02 358 7002
Firestone: W02-358-7031
W02 358 7031
W02 358 7031
Link Manufacturing: 1101-0020;1101 0020
: 227QS33
Flexible/Grumman: 97999901867
Euclid/Meritor Aftermarket: E FS7031
PAI Industries: FAS 4906
Euclid/Meritor Aftermarket: FS7031
TRUCK 227QS33
LINK CAB & SEAT SPRINGS 1101 0020
TRUCK 227QS33



Goodyear #: 1S4-007
Top Plate Hole/Stud Qty: 1
Top Plate Dia: 2.65 inch
Top Plate C to C Diameter: N/A
Bottom Plate Hole Stud Qyt: 1
Bottom Plate Dia: 2.87 inch
Min Height: 2.2 inch
Max Height: 7.1 inch

Specifications
Goodyear # 1S4-007 Sleeve Style Air Spring
Single Convolute
4" Nominal Outside Working Diameter
7.1" Extended Height
Top Measurements: 2.65" Diameter, 1 Tapped Hole on Top Retainers 3/8-16, on Pistons - 1/2-13
Bottom Measurements: 2.875" Diameter, 1 Single Centered Stud, 0.750-16 UNF-2A Outside, 0125-27 NPTF Inside
Piston ASC-08-7-139
ASB-08-5-007


1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat
1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat

Other kinds of Goodyear Air Spring:

57908000700000 57908000700000 20035952 Y 1S4-007 1S4-007
57908000700004 1S4-007 20116860 N 1S4-007 Sleeve Air Spring 1S4-007 Sleeve Air Spring
57908000700019 57908000700019 20095175 Y ENIDINE YI-1S4-007 ENIDINE YI-1S4-007
57908000700021 57908000700021 20095176 Y 1S4-007 58184 AIR LIFT 1S4-007 58184 AIR LIFT
57908000700064 1S4-007LM 20125262 N 1S4-007 1101-0020 1S4-007 1101-0020
57908000800000 57908000800000 20069111 Y 1S4-008 1S4-008
57908000800004 1S4-008 20116861 N 1S4-008 Sleeve Air Spring 1S4-008 Sleeve Air Spring
57908000800019 57908000800019 20095180 Y ENIDINE YI-1S4-008 ENIDINE YI-1S4-008
57908000800021 57908000800021 20133599 Y 1S4-008 58186 1S4-008 58186
57908000800060 57908000800060 20095181 Y 1S4-008 JOHN DEEREAA40969 1S4-008 JD AA40969
57908000800064 1S4-008LM 20126768 N 1S4-008 1101-0021 1S4-008 1101-0021
57908001600000 57908001600000 20095184 Y 1S4-016 1S4-016
57908001600004 1S4-016 20254571 N 1S4-016 Sleeve Air Spring 1S4-016 Sleeve Air Spring
57908001600050 57908001600050 20110936 Y 1S4-016 NAVISTAR 1680378C1 1S4-016 NAVISTAR 1680378C1
57908002900000 1S4-029 20095193 N 1S4-029 NATNAL 2112283 1S4-029 NATNAL 2112283
57908003000004 1S4-030 20254573 N 1S4-030 Sleeve Air Spring 1S4-030 Sleeve Air Spring
57908003000012 57908003000012 20095195 Y PACCAR 1S4-030 20-12461 PACCAR 1S4-030 20-12461
57908003400000 1S4-034 20054191 N 1S4-034 1S4-034
57908003500000 57908003500000 20095196 Y 1S4-035 1S4-035
57908003500004 1S4-035 20254575 N 1S4-035 Sleeve Air Spring 1S4-035 Sleeve Air Spring
57908003900000 57908003900000 20095200 Y BOSTRM 1107622001 1S4-039 BOSTRM 1107622001 1S4-039
57908004200004 1S4-042 20254576 N 1S4-042 Sleeve Air Spring 1S4-042 Sleeve Air Spring
57908004400000 57908004400000 20111212 Y 1S4-044 1S4-044
57908004400004 1S4-044 20254579 N 1S4-044 Sleeve Air Spring 1S4-044 Sleeve Air Spring
57908004600000 1S4-046 20095205 N 1S4-046 1S4-046
57908005300000 1S4-053 20095211 N 1S4-053 Mac-k truck 227QS39301 1S4-053 Mac-k truck 227QS39301
57908005400000 1S4-054 20095212 N 1S4-054 1S4-054
57908005500000 1S4-055 20095213 N 1S4-055 1S4-055
57908005600000 57908005600000 20095214 Y 1S4-056 1S4-056
57908005600004 1S4-056 20254580 N 1S4-056 Sleeve Air Spring 1S4-056 Sleeve Air Spring
57908005800000 57908005800000 20095216 Y 1S4-058 1S4-058
57908005800004 1S4-058 20266781 N 1S4-058 Sleeve Air Spring 1S4-058 Sleeve Air Spring
57908006000000 1S4-060 20095218 N 1S4-060 1S4-060
57908006500000 1S4-065 20095222 N 1S4-065 KNOEDLER MFG 9212 1S4-065 KNOEDLER MFG 9212
57908006700000 1S4-067M 20095225 N 1S4-067 Mac-k truck 25166846 227QS34B 1S4-067 Mac-k truck 25166846 227QS34B
57908006700004 1S4-067 20243837 N 1S4-067 Sleeve Air Spring 1S4-067 Sleeve Air Spring
57908006800000 1S4-068 20111214 N 1S4-068 1S4-068
57908007000000 1S4-070 20111215 N 1S4-070 1S4-070
57908007400004 1S4-074 20254472 N 1S4-074 Sleeve Air Spring 1S4-074 Sleeve Air Spring
