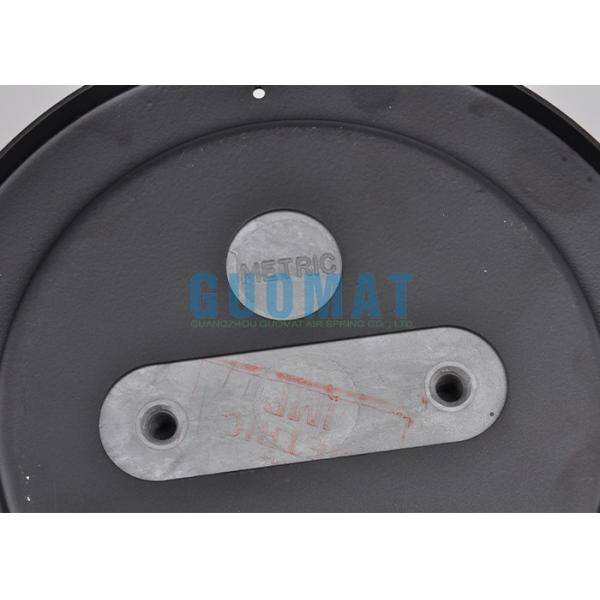

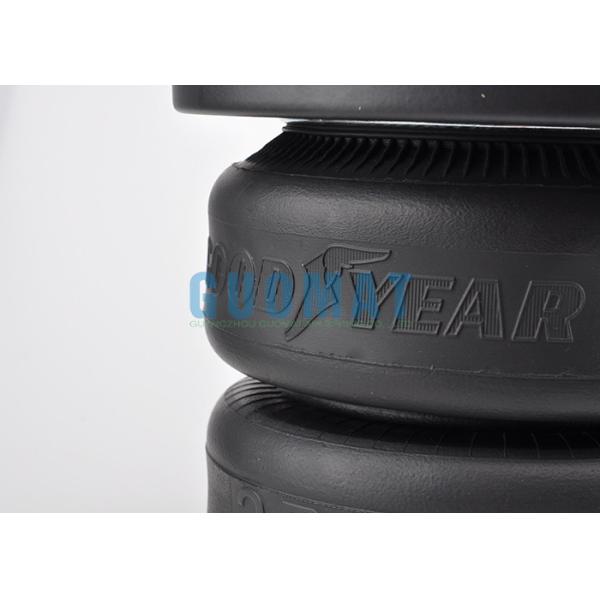

2B8-850 Goodyear Rubber Bellows Double Tables Industrial Air Spring Platforms Replace Firestone W01-M58-6353
2B8-850 Goodyear Rubber Bellows Double Tables Industrial Air Spring Platforms Replace Firestone W01-M58-6353
2B8-850 Goodyear Rubber Bellows Double Tables Industrial Air Spring Platforms Replace Firestone W01-M58-6353
2B8-850 Goodyear Rubber Bellows Double Tables Industrial Air Spring Platforms Replace Firestone W01-M58-6353
2B8-850 Goodyear Rubber Bellows Double Tables Industrial Air Spring Platforms Replace Firestone W01-M58-6353
2B8-850 Goodyear Rubber Bellows Double Tables Industrial Air Spring Platforms Replace Firestone W01-M58-6353
2B8-850 Goodyear Rubber Bellows Double Tables Industrial Air Spring Platforms Replace Firestone W01-M58-6353
2B8-850 Goodyear Rubber Bellows Double Tables Industrial Air Spring Platforms Replace Firestone W01-M58-6353
Specifications
Brand Name :
Goodyear
Model Number :
2B8-850
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong,China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Stainless Steel &Natural Rubber
Goodyear :
2B8-850
Warranty :
12 Months
Weight :
5.0 kg
Other name :
Air Suspension
Pressure Ability :
0.2-0.8 M Pa
Max OD :
223.5 mm
Design Height Range :
178mm-203mm
Air Fitting Size :
1/4 C
Description

2B8-850 Goodyear Rubber Bellows Double Tables Industrial Air Spring Platforms Replace Firestone W01-M58-6353

The Goodyear brand is one of the three major brands in the world, which is well known.
The quality of this air spring is very good. Many customers use it. After using it, it can take several years to replace it.
2B8-850 This air spring is imported and imported by the American brand Hidee.The bladder number is 579-923-530.

It is a real original imported thing produced by a factory in Mexico.
There are also many customers using this on various shock absorption equipment or lifting equipment.

OEM Original Manufacturer:

Goodyear Original: 2B8-850

2B8-850 Goodyear Cross OEM

Firestone Part Number:W01-M58-6353

Firestone Part Number:W01 M58 6353

Firestone Part Number:W01M586353

Conti Tech Part Number::FD 120-20 CI G 1/4

Conti Tech Part Number::FD120-20 CI G 1/4

Goodyear Part Number: 2B8-850;

Goodyear Part Number: 2B8 850;

Goodyear Part Number: 2B8850

2B8-850 specifications in Inches:

Max OD @100 PSIG (Inches):8.8

Design Load Range (pounds):440 - 2,700

Design Height Range (Inches):7.0 - 8.0

Usable Stroke (Inches):7.2

Min Comp Height (Inches):2.9

Max Ext Height (Inches):10.1

Bumper Included:NO

Air Fitting Size (Inches):1/4 C

2B8-850 Specifications in Metric:

Maximum Diameter @ 7 Bar (mm) Goodyear 2B8-850 ISOLATOR
218 Design Height (mm)
Maximum Height (mm) 203
76 Load (at Design Height) at: 3 Bar (kN)
Maximum Stroke (mm) 3.8
145 Load (at Design Height) at: 5 Bar (kN)
Minimum Usable Height (mm) 6.6
221 Load (at Design Height) at: 7 Bar (kN)
Force in kN @ 5 Bar at Stroke of 25 mm 9.4
10.9 Natural Frequency (@5 Bar)(fn(Hz)
Force in kN @ 5 Bar at Stroke of 50% of Max Stroke 1.9
9.1 % of Isolation at Forced Frequency 7 Hz
Force in kN @ 5 Bar at Stroke of Maximum Stroke 92.1
5.7 % of Isolation at Forced Frequency 13 Hz
Material 98.2
2-Ply Standard Cord % of Isolation at Forced Frequency 25 Hz
END CLOSURE DETAILS 99.5
Bead plate Type Dim. A (Blind Nut Centers) (mm)
1 70

2B8-850 Goodyear Rubber Bellows Double Tables Industrial Air Spring Platforms Replace Firestone W01-M58-63532B8-850 Goodyear Rubber Bellows Double Tables Industrial Air Spring Platforms Replace Firestone W01-M58-6353

2B8-850 Goodyear Rubber Bellows Double Tables Industrial Air Spring Platforms Replace Firestone W01-M58-6353
