W01-358-6799 Industrial Air Spring Contitech FD 530-22 316 Hendrickson B-3184
W01-358-6799 Industrial Air Spring Contitech FD 530-22 316 Hendrickson B-3184
Specifications
Brand Name :
GUOMAT
Model Number :
2B6977
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong,China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Steel cover plate , rubber bellows
Contitech :
FD 530-22 316
Firestone :
W01-358-6799
Gas Hole / Air inlet :
3/4NPT
Cover Plate Diameter (Width) :
289 mm
Compressed Height :
104 mm / 4.1 inches
Overall weight with clamped plates :
22.7 lbs
Description

W01-358-6799 Industrial Air Spring CONTITECH FD 530-22 316 HENDRICKSON B-3184

OEM Number:


GRANNING : 1015 / 15663
HENDRICKSON : B-3184
RIDEWELL : 1003587140C
WATSON & CHALIN : AS-0008
NEWAY : 90557203


Cross Number:


FIRESTONE : W01-681-7700
FIRESTONE : W01 681 7110
FIRESTONE : W01 358 7140
GOODYEAR : 2 B 14-359
CONTITECH : FD 530-22 316
OLD WUHLERMANN : 2RC-355-7C
FIRESTONE : W01-358-6799
CONTITECH : FD 530-22 316/64544

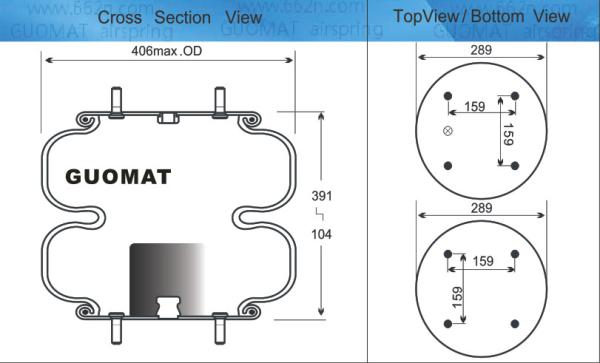

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 159 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4NPT

Center Distance Between Nut and Air inlet: 79.5 mm

❸ Cover Plate

Top Cover Plate Diameter (Width): 289 mm

Bottom Cover Plate Diameter (Width): 289 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter : 406 mm

Compressed Height: 104 mm / 4.1 inches

Maximum Height: 391 mm

Working Stroke : 287mm

❺ Bumper block / Buffer block

With Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

GUOMAT NO. Reference Order NO. Force (lbs) Max OD (in) Design height(in) Height Narural frequ.[cpm]
80 psi 100 psi Min MAX
FD 530 22 311 FD 530-22 311 161326 6530 8170 15 9.8 3.3 12.2 108
FD 530 22 316 FD 530-22 316 161327 6530 8170 15 9.8 4.1 12.2 108
FD 530 22 321 FD 530-22 321 161328 6530 8170 15 9.8 4.1 12.2 108
FD 530 22 342 FD 530-22 342 161329 6530 8170 15 9.8 4.1 12.2 108
FD 530 22 345 FD 530-22 345 161330 6530 8170 15 9.8 4.1 12.2 108
FD 530 22 374 FD 530-22 374 161331 6530 8170 15 9.8 3.3 12.2 108
