Specifications
Brand Name :
GUOMAT
Model Number :
1B6374
Certification :
ISO/TS16949:2009
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Steel And Rubber
Firestone :
W01M586374
Warranty :
12 Months
Weight :
2.3 kg
Other Name :
Air Bags For Pneumatics
Pressure Ability :
0.2-0.8 M Pa
Air inlet :
G 3/4
Cover Plate Screw (Nut) Tooth :
2 pcs X M8X1.25
Dunlop(FR) :
9’’1/4x1 S09101
Description

W01-M58-6374 Firestone Industrial Rubber Air Spring For Commercial Vibrating Screen

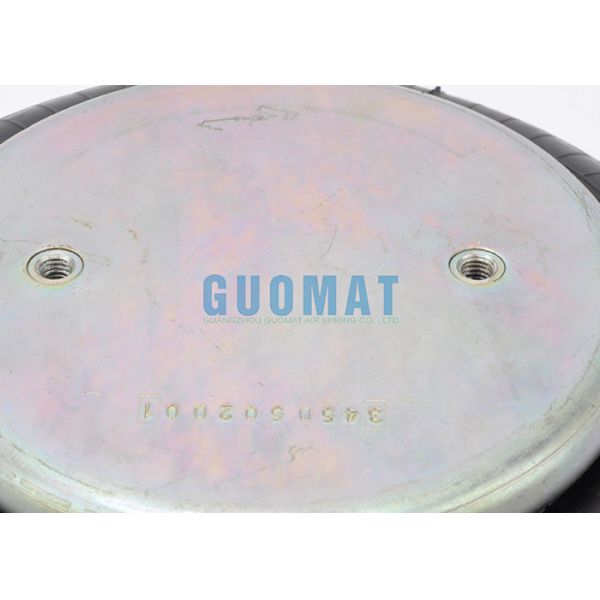

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Bottom Cover Plate : 89 mm

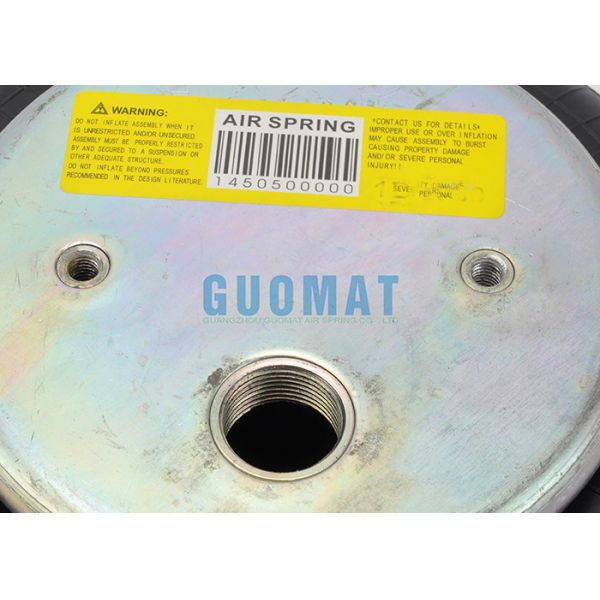

❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G3/4

❸ Cover Plate
Top Cover Plate Diameter (Width): 160 mm
Bottom Cover Plate Diameter (Width): 160 mm

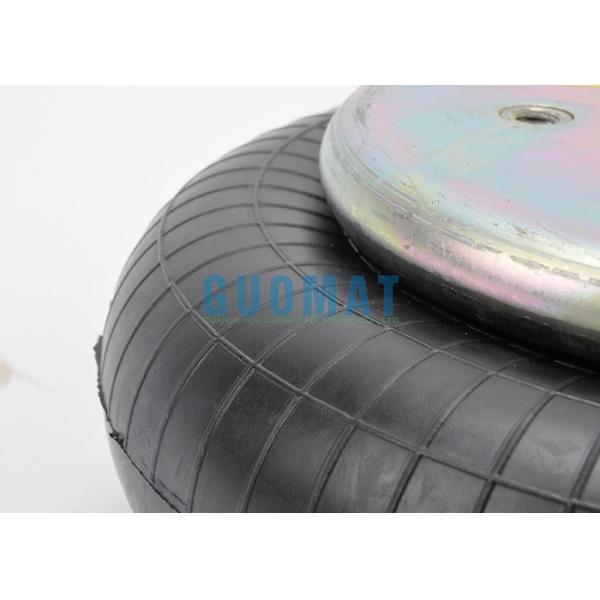

❹Rubber Bellows
Rubber Bellows Natural Diameter : 220 mm
Rubber Bellows Natural Height : 110 mm

❺ Bumper block / Buffer block
Without Bumper Block

❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Without Girdle Hoop


OEM Original Equipment Manufacturer:

BELLOW NO. COMPLETE NO.
AIRKRAFT 112005 AIRKRAFT 111004
CONTITECH FS 200-10 60319 CONTITECH FS 200-10
FIRESTONE FLEX 115 2681 045000
FIRESTONE W01-358-0118 FIRESTONE W01 M58 6374
Goodyear Part # 1B9-215 DUNLOP (FR) 9"1/4x1 S09101
　

BOSCH 822419004
　 FESTO EB-250-85
　 NORGREN PM/31091 (91/4x1)
　 WEFORMA WBE 400-E1



REASONS FOR USING AIR SPRINGS Bellows

  • To offer a more comfortable ride for vehicle owners.
  • To obtain better goods protection through lower spring rate and
  • natural frequency
  • To let longer vehicle life through less damage from road
  • shock and vibration.
  • To make a lighter vehicle possible, thus allowing an equivalent
  • increase in cargo mass.


Other product parameters:

Design Height 5.5 Maximum Stroke (kN) 6.5
Maximum Height (mm) 51 High Strength Style Number 124
Maximum Stroke (mm) 79 Material 2-Ply Standard Cord
Minimum Usable Height (mm) 130 Bead plate Type 3
25 mm (kN) 14.3 Dim# A (Blind Nut Centers) (mm) 89
50% of Max Stroke (kN) 13.2 Dim# B (mm) 38
Design Height (mm) 114
