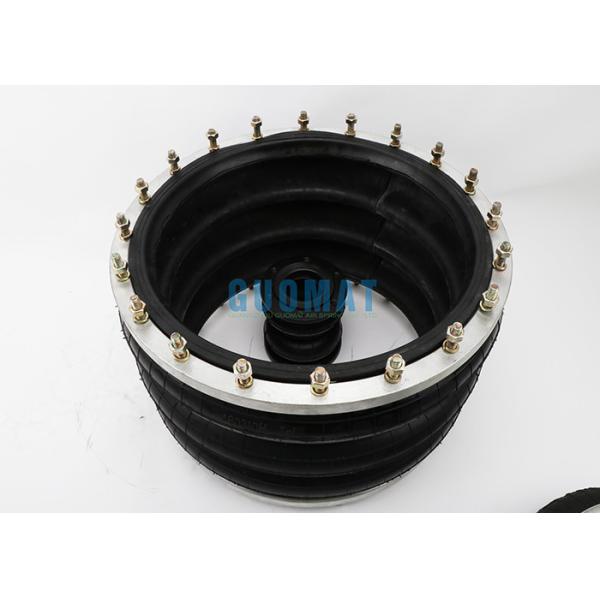

Durable Rubber Air Spring Guomat 3H520312 At 0.7 Mpa Max Dia 550mm With Ring 24pcs Bolts
Durable Rubber Air Spring Guomat 3H520312 At 0.7 Mpa Max Dia 550mm With Ring 24pcs Bolts
Durable Rubber Air Spring Guomat 3H520312 At 0.7 Mpa Max Dia 550mm With Ring 24pcs Bolts
Durable Rubber Air Spring Guomat 3H520312 At 0.7 Mpa Max Dia 550mm With Ring 24pcs Bolts
Durable Rubber Air Spring Guomat 3H520312 At 0.7 Mpa Max Dia 550mm With Ring 24pcs Bolts
Durable Rubber Air Spring Guomat 3H520312 At 0.7 Mpa Max Dia 550mm With Ring 24pcs Bolts
Durable Rubber Air Spring Guomat 3H520312 At 0.7 Mpa Max Dia 550mm With Ring 24pcs Bolts
Durable Rubber Air Spring Guomat 3H520312 At 0.7 Mpa Max Dia 550mm With Ring 24pcs Bolts
Specifications
Brand Name :
GUOMAT
Model Number :
3H520312
Certification :
ISO/TS16949:2009
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Aluminum alloy And Rubber
GUOMAT :
3H480312
Warranty :
12 Months
Net Weight :
20.1 KG
Other Name :
Industry Air Spring Isolator
Pressure Ability :
0.2-0.8 M Pa
Gross Weight :
22 KG
Flange Ring :
With or Without
Connection Method :
Flange Connection
Flange ring size :
508 mm
BOLT CIRCLE DIA :
470 mm
Description

Rubber Air Spring GUOMAT 3H520312 At 0.7 Mpa Max Dia 550mm With Ring 24pcs Bolts

Industrial Triple Convoluted Air Spring Specifications

Description Assembly

Description
Assembly Order No.
Style 520
Ribbed neck aluminum bead rings (equal spacing), 20pcs M10 bolts, nuts, washers

Manufacturer Part Number 3H520312 Bead ring Type 4
Maximum Diameter @ 7 Bar (mm) 550 Dim# C (Bolt Circle Diameter mm) 470
Maximum Height (mm) 378 # of Bolts (each ring) 24
Maximum Stroke (mm) 256 Design Height (mm) 381
Minimum Usable Height (mm) 224 3 Bar (kN)
25 mm (kN) 5 Bar (kN)
50% of Max Stroke (kN) 7 Bar (kN)
Maximum Stroke (kN) Natural Frequency (@5 Bar)(fn(Hz) 1.2
Applicable Technigram? 7 Hz 97
Material One-Ply, 13 Hz 99.3
25 Hz 99.8

Durable Rubber Air Spring Guomat 3H520312 At 0.7 Mpa Max Dia 550mm With Ring 24pcs Bolts

Flange connection type of air spring model comparison table
GUOMAT NO. Contitech NO. GUOMAT NO. Contitech NO.
FS22-3DICR FS 22-3 DI CR FS960-12RS FS 960-12 RS
FS44-5DICR FS 44-5 DI CR FS1330-11RS FS 1330-11 RS
FS76-7DICR FS 76-7 DI CR FS1710-12RS FS 1710-12 RS
FS76-7DSCR FS 76-7 DS CR FS2870-16RS FS 2870-16 RS
FS138-8DS FS 138-8 DS FS5450-16RS FS 5450-16 RS
FS210-10DS FS 210-10 DS FD960-22RS FD 960-22 RS
FS412-10DS FS 412-10 DS FD1120-30RI FD 1120-30 RI
FS614-13DS FS 614-13 DS FD1330-25RS FD 1330-25 RS
FS816-15DS FS 816-15 DS FD1710-25RS FD 1710-25 RS
FD22-4DICR FD 22-4 DI CR FD1730-40RI FD 1730-40 RI
FD44-10DICR FD 44-10 DI CR FD2380-24RS FD 2380-24 RS
FD76-14DICR FD 76-14 DI CR FD2470-40RI FD 2470-40 RI
FD76-14DSCR FD 76-14 DS CR FD2870-30RS FD 2870-30 RS
FD138-18DS FD 138-18 DS FD5450-28RS FD 5450-28 RS
FD209-21DS FD 209-21 DS FT960-34RS FT 960-34 RS
FD210-22DS FD 210-22 DS FT1330-35RS FT 1330-35 RS
FD412-18DS FD 412-18 DS FT1710-38RS FT 1710-38 RS
FD614-26DS FD 614-26 DS FT2870-45RS FT 2870-45 RS
FD816-30DS FD 816-30 DS FT5450-44RS FT 5450-44 RS
FT22-6DICR FT 22-6 DI CR 　 　
FT44-15DICR FT 44-15 DI CR 　 　
FT76-20DICR FT 76-20 DI CR 　 　
FT76-20DSCR FT 76-20 DS CR 　 　
FT138-26DS FT 138-26 DS 　 　
FT210-32DS FT 210-32 DS 　 　
FT412-32DS FT 412-32 DS 　 　
FT614-36DS FT 614-36 DS 　 　
FT816-40DS FT 816-40 DS

Durable Rubber Air Spring Guomat 3H520312 At 0.7 Mpa Max Dia 550mm With Ring 24pcs BoltsDurable Rubber Air Spring Guomat 3H520312 At 0.7 Mpa Max Dia 550mm With Ring 24pcs Bolts
