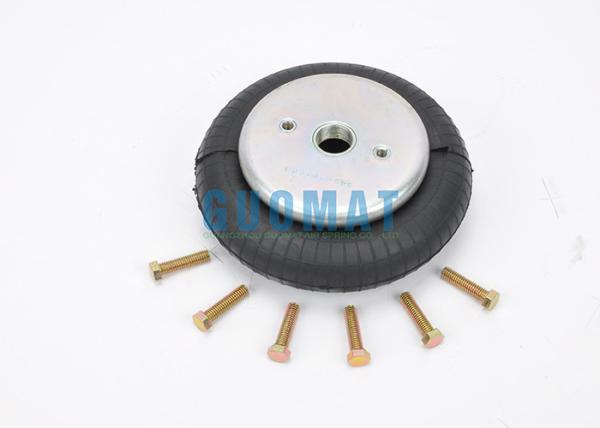

W01-M58-6165 Industrial Air Spring Blind Nuts Style 116 Reduce Noise for Isolation Table

Product Description

Technical Data

  • Assembly weight:2.0 kg
  • Min. pressure – 0 psi
  • Return force to min. height – <45LBF/200N
  • Overall Weight – 4.4LB
  • Min. Design Height – 1.97inch/50MM
  • Inst.Space Required – 9.06inch/230MM
  • Max. Stroke – 3.34inch/85MM

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs XM8

Screw Center Distance of Top Cover Plate : 70 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs XM8

Screw Center Distance of Bottom Cover Plate : 70 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G3/4

Screw Center Distance Between Gas Hole and Nut : 35 mm

❸ Cover Plate

Top Cover Plate Diameter: 135 mm

Bottom Cover Plate Diameter: 135 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 215 mm

Rubber Bellows Natural Diameter : 200 mm

The Working Stroke : MIN 50 mm to MAX 115 mm

Maximum Height : 115 mm

Minimum Height :50mm

Stroke Height : 65mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :NO of Girdle Hoop

GUOMAT:1B1209

OEM Original Equipment Manufacturer:

AIR INLET 3/4 NPT:

Firestone : W01-M58-6165,W01M586165,W01 M58 6165

Contitech :: FS 120-9,FS120-9;FS1209

Dunlop(FR) : 8’’x1 S08101

Bosch : 822419003

Festo : EB-215-80

Norgren : PM/31081(8x1)

Weforma : WBE 300-E1

Airtech : 140293

Airtech : 111003/1B-190FB :

Megatech :1S120-9 3/4 M8

AIR INLET 1/4 NPT:

Firestone : W01-M58-6166

Contitech : FS 120-9

Dunlop(FR) : 8’’x1 S08100

Bosch : 822419008

Weforma : WBE 300-E2

Firestone:W01-M58-6171;116-1

PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

Force F [lbf]
Pressure p [psi] 40 60 80 100 Vol. V [in.³]
H 4.50 in./114.3MM 728 1130 1570 1970 110
H 4.00 in./101.6MM 905 1400 1940 2390 100
H 3.50 in./88.9MM 1050 1610 2240 2740 90
H 3.00 in./76.2MM 1170 1770 2450 3020 75
H 2.50 in./63.5MM 1270 1900 2630 3260 57

VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
Force (load) F [lbf] 801 1,240 1,700 2,130 2,530 110
Spring rate c [lbf/in] 709 949 1,190 1,430 1,670 110
Natural Frequency f0 [Hz] 2.9 2.8 2.7 2.6 2.6 110
Design height H: recommended 4.33 inch, minimum 3.54 inch
