W01-358-7848 Compressed Height 114 MM Industrial Air Spring FT53035439 3B14-360
W01-358-7848 Compressed Height 114 MM Industrial Air Spring FT53035439 3B14-360
W01-358-7848 Compressed Height 114 MM Industrial Air Spring FT53035439 3B14-360
W01-358-7848 Compressed Height 114 MM Industrial Air Spring FT53035439 3B14-360
W01-358-7848 Compressed Height 114 MM Industrial Air Spring FT53035439 3B14-360
W01-358-7848 Compressed Height 114 MM Industrial Air Spring FT53035439 3B14-360
Specifications
Brand Name :
GUOMAT
Model Number :
3B7848
Certification :
ISO/TS16949:2009
Place of Origin :
Guangdong,China
MOQ :
1pc
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Steel cover plate , rubber bellows
Contitech :
FT 530-35 439
Firestone :
W013587848
Gas Hole / Air inlet :
1/4NPT
Cover Plate Diameter (Width) :
287 mm
Compressed Height :
114 MM
Goodyear :
3B14-360
Goodyear Bellows :
578-93-3-350
Description

W01-358-7848 Compressed Height 114 MM Industrial Air Spring FT53035439 3B14-360

3B14-360 Cross other OEM:

Cross Manufacturer Cross OEM
Firestone : W01-358-7848/ W01 358 7848/W013587848
Firestone Bellows Number: 333
Contitech : FT 530-35 439 / FT 530 35 439
Goodyear 3B14-360
Goodyear Number: 3B14-360
Goodyear Bellows Number: 578933350

3B14-360 data and size:

Compressed Height: 4.00 inches
Top Plate Number:3123 or 3132
Top Plate Width:11.31 inches
Piston Number:3122
Piston Width:11.31 inches
Firestone Bellows Number:333
Goodyear Part Number:3B14-360
Goodyear Bellows Number:578-93-3-350
Triangle Part Number:4439
Triangle Bellows Number:6335
Suspensions Inc. Number201498

Air Spring Supplier: ContiTech
Competitor / Supplier Number: FT53035439

Air Spring Supplier: Goodyear
Reference: 578933350
Competitor / Supplier Number: 3B14360 / 3B14-360

Air Spring Supplier: Triangle
Reference number: 6335
Competitor / Supplier Number: 4439

Suspension supplier: Arvin Meritor
Competitor / Supplier Number: 201498

Suspension Supplier: Hendrickson
Competitor / Supplier Number: S13047

Suspension supplier: Liland
Competitor / Supplier Number: SC2030

Suspension Supplier: Advanced

Suspension Supplier: Advanced

Suspension Supplier: Suspension Inc.

Firestone trim: w013587848 / WO13587848

3B14-360 Specification:

❶Bolts

Top Cover Plate Screw (Nut) Tooth : 4 pcs X 1/2-16UNC

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 1/2-16UNC

Screw Center Distance of Bottom Cover Plate : 159 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT

Center Distance Between Nut and Air inlet: 79.5 mm

❸ Cover Plate

Top Cover Plate Diameter (Width): 289 mm

Bottom Cover Plate Diameter (Width): 289 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter : 404mm

Compressed Height: 114 mm

Maximum Height: 511 mm

Working Stroke : 117mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :2 Pieces of Girdle Hoop

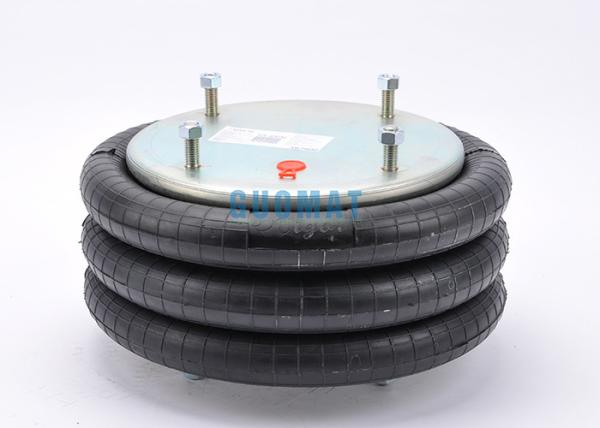

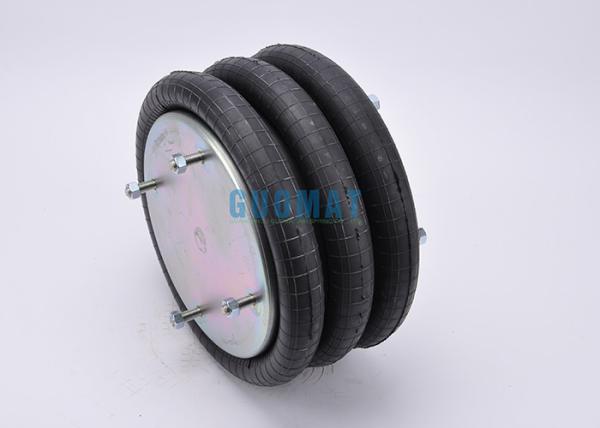

Real photos of 3B14-360:

W01-358-7848 Compressed Height 114 MM Industrial Air Spring FT53035439 3B14-360W01-358-7848 Compressed Height 114 MM Industrial Air Spring FT53035439 3B14-360

57893236000000 20095024 Y 3B14-360 3B14-360
3B14-360 20035825 N 3B14-360 Bellows Air Spring 3B14-360 Bellows Air Spring
57893236100000 20095031 Y 3B14-361 3B14-361
3B14-361 20116540 N 3B14-361 Bellows Air Spring 3B14-361 Bellows Air Spring
57893236100019 20095032 Y ENIDINE YI-3B14-361 ENIDINE YI-3B14-361
57893236400000 20095038 Y 3B14-364 3B14-364
3B14-364 20035826 N 3B14-364 Bellows Air Spring 3B14-364 Bellows Air Spring
57893236500000 20095044 Y 3B14-365 3B14-365
3B14-365 20095045 N 3B14-365 Bellows Air Spring 3B14-365 Bellows Air Spring
57893236700000 20095046 Y 3B14-367 3B14-367
3B14-367 20035827 N 3B14-367 Bellows Air Spring 3B14-367 Bellows Air Spring
57893237000000 20095053 Y 3B14-370 3B14-370
57893237300000 20095056 Y 3B14-373 HENDRICKSON 001285 3B14-373 HENDRICKSON 001285
57893237400000 20095057 Y 3B14-374 3B14-374
57893237400004 20116868 Y 3B14-374 3B14-374
57893237400019 20095058 Y ENIDINE YI-3B14-374 ENIDINE YI-3B14-374
57893237500000 20095059 Y 3B15-375 3B15-375
3B15-375 20116541 N 3B15-375 3B15-375
57893237500019 20095060 Y ENIDINE YI-3B15-375 ENIDINE YI-3B15-375
57893237600000 20095061 Y 3B15-376 3B15-376
57893237600004 20116542 Y 3B15-376 3B15-376
57893237600019 20095062 Y ENIDINE YI-3B15-376 ENIDINE YI-3B15-376
57893237700000 20095063 Y 3B15-377 3B15-377
3B15-377 20116543 N 3B15-377 3B15-377
57893237700019 20095064 Y ENIDINE YI-3B15-377 ENIDINE YI-3B15-377
57893237800000 20095065 Y 3B15-378 3B15-378
57893237800004 20116544 Y 3B15-378 3B15-378
57893237800019 20095066 Y ENIDINE YI-3B15-378 ENIDINE YI-3B15-378
57893238200000 20095067 Y 3B15-382 3B15-382
3B15-382 20436514 N 3B15-382 3B15-382
57893240000000 20095068 Y 3B14-400 3B14-400
57893240100000 20095069 Y 3B14-401 3B14-401
57893240300000 20095070 Y 3B14-403 3B14-403
57893240300004 20125441 Y 3B14-403 3B14-403
