Stamped Flange Air Spring M31123 Airbag Shock Absorber Cylinder
Stamped Flange Air Spring M31123 Airbag Shock Absorber Cylinder
Stamped Flange Air Spring M31123 Airbag Shock Absorber Cylinder
Stamped Flange Air Spring M31123 Airbag Shock Absorber Cylinder
Stamped Flange Air Spring M31123 Airbag Shock Absorber Cylinder
Stamped Flange Air Spring M31123 Airbag Shock Absorber Cylinder
Stamped Flange Air Spring M31123 Airbag Shock Absorber Cylinder
Stamped Flange Air Spring M31123 Airbag Shock Absorber Cylinder
Stamped Flange Air Spring M31123 Airbag Shock Absorber Cylinder
Stamped Flange Air Spring M31123 Airbag Shock Absorber Cylinder
Stamped Flange Air Spring M31123 Airbag Shock Absorber Cylinder
Stamped Flange Air Spring M31123 Airbag Shock Absorber Cylinder
Specifications
Brand Name :
GUOMAT
Model Number :
3BM31123
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6PCS
Price :
$69.9-79.9/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Type of Goods :
Air Spring/Air bags/Air Ballons
Spring Material :
Rubber + Steel
Product Warranty :
12 months
Sample :
Available
Air Inlet :
G1/2
Rubber Bellows :
12 x 3
Service offered :
OEM
Hight Light :
Firestone Industrial Triple Convoluted Air Spring
Description

Stamped Flange Air Spring M31123 Airbag Shock Absorber ,Shock Cylinder,Air Spring

Product Description

Original Manufacturer:Norgren

Part Number:M31123

GUOMAT Number:3BM31123

Operation:Single Acting

Number Of Convoluted:3 Convoluted

Operation Pressure:0~8 bar

Type Of Product:Air Bellow

Working Temperature:-40℃~70℃

Material-Nuts&Screw:Steel


M/31123 Flange Air Spring By Norgren

Cover Plate Top Cover Plate Diameter:260mm
Bottom Cover Plate Diameter:260mm
Air Inlet/Gas Hole G1/2=25Nm
Blind Nut Screw Center Distance Of Top Cover Plate:232mm
Screw Center Distance Of Bottom Cover Plate:232mm
Screw And Gas Hole Distance Of Top Cover Plate:116mm
Top Cover Plate Screw (Nut) Tooth:4XM10
Bottom Cover Plate Screw (Nut) Tooth:4XM10
M10=25Nm
Rubber Bellow Rubber Bellow MAX Diameter:325mm
The Working Stroke:MAX 430mm to MIN 100mm
Maximum Height:430mm
Minimum Height:100mm
Compressed Height:330mm

Technical Parameter
Minimum Pressure 0 bar
Minimum Height Restoring Force ≤250N
Total Weight (Including Metal Parts) 6.9KG

Pneumatic applications - static eigenvalues

----Force F [kN]
Pressure P [bar] 3 4 5 6 7 8 Volume V ［I］
Height H [mm] 350 9.8 13.2 16.7 20.5 24.3 28.4 17.2
300 12.3 16.5 20.8 25.3 29.9 34.7 15.3
250 14.4 19.3 24.2 29.4 34.5 39.9 12.9
200 16.4 22.0 27.7 33.5 39.4 45.6 10.0
150 18.8 25.1 31.4 37.8 44.2 50.7 7.2

We Have Other Product By Norgren

M Type PM Type
M31061 PM31021
M31062 PM31023
M31081 PM31041
M31082 PM31042
M31101 PM31043
M31102 PM31061
M31103 PM31062
M31121 PM31063
M31122 PM31081
M31123 PM31082
M31141 PM31091
M31142 PM31092
M31143 PM31121
M31162 PM31122
M31163 PM31123

What about our package & shipping terms?

Package : Strong carton box or according to customer requirement.

Shipping Port : Huangpu Guangzhou China

Payment Term : L/C,T/T,Westren Union,Paypal

Delivery Term : 1.2-8 working days after receive payment.

2.Shipping by air,by sea,by express(DHL/FEDEX/UPS...)

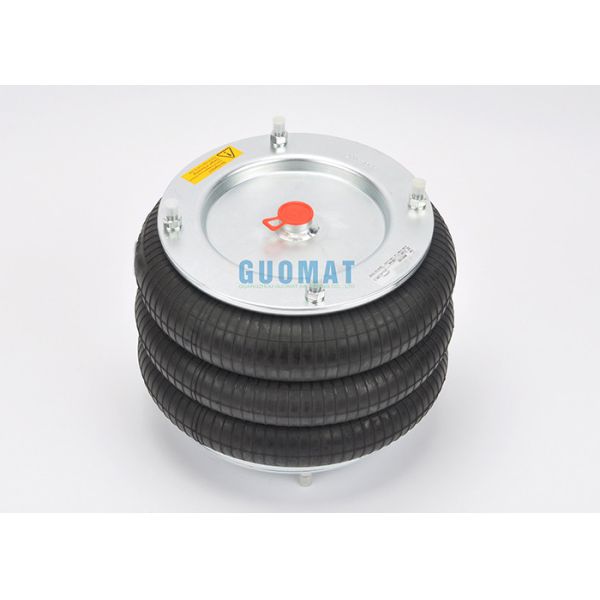

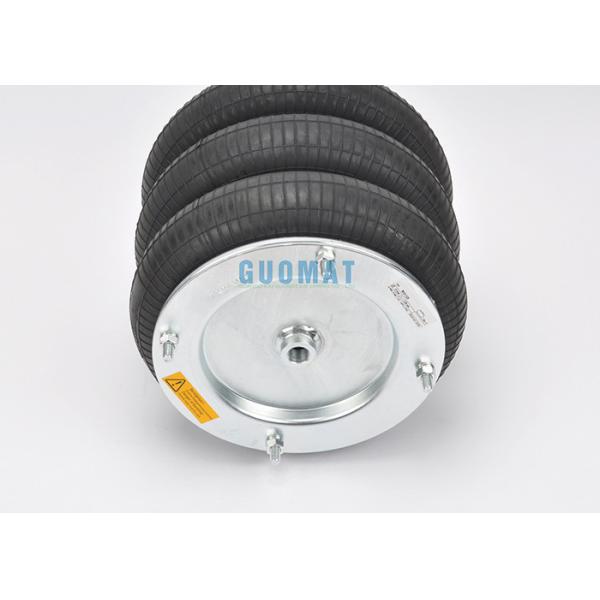

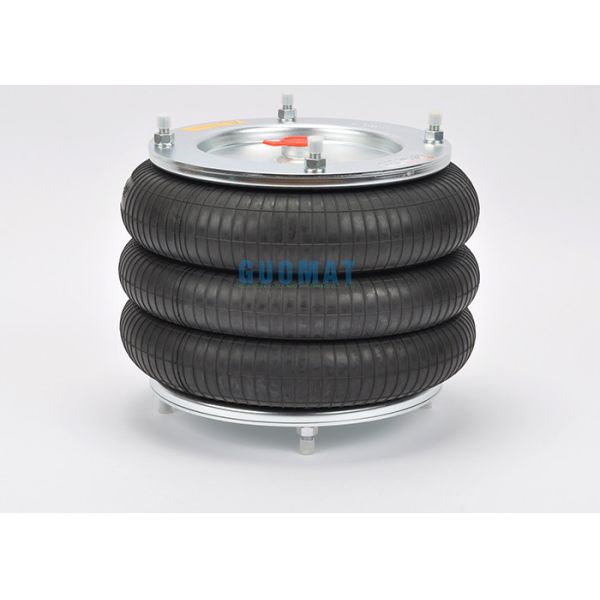

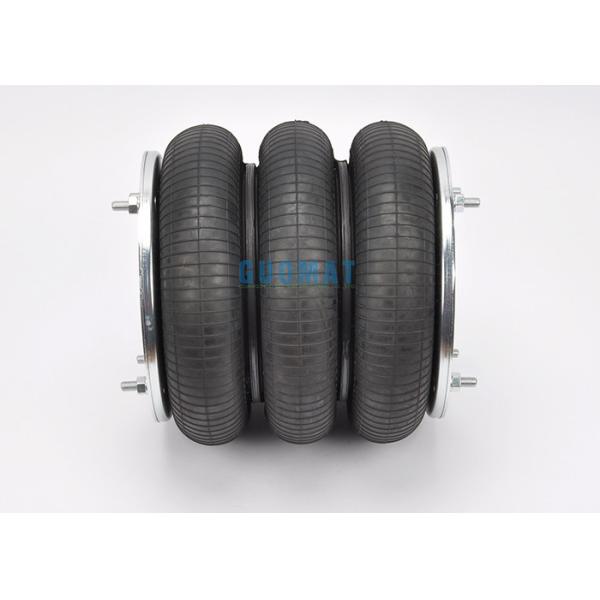

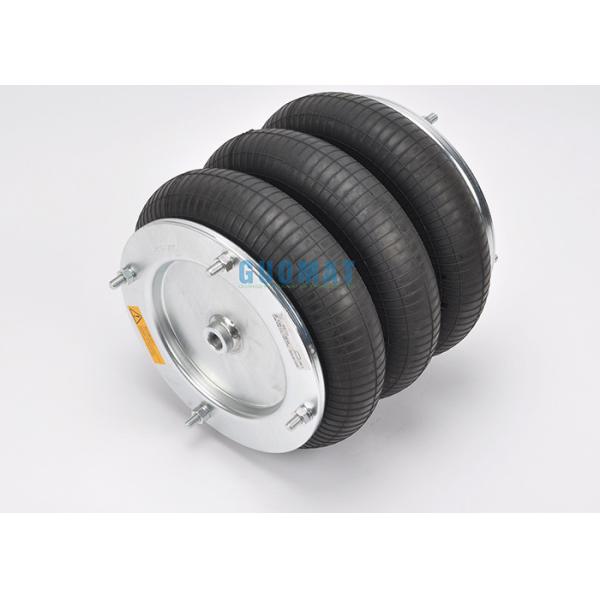

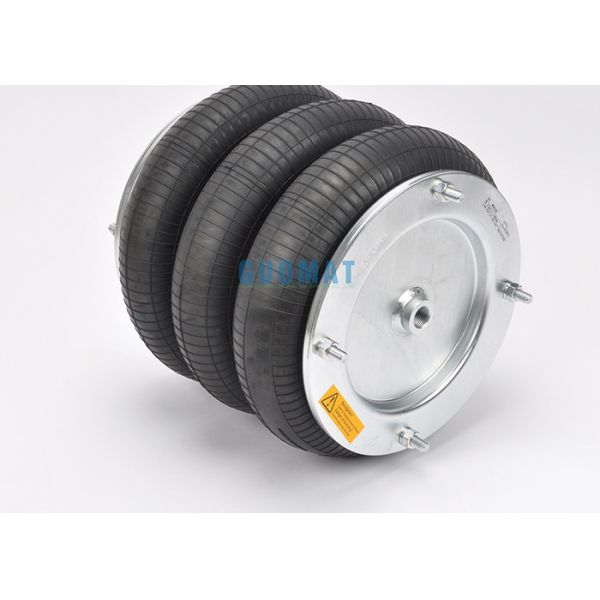

Product Image

Stamped Flange Air Spring M31123 Airbag Shock Absorber CylinderStamped Flange Air Spring M31123 Airbag Shock Absorber CylinderStamped Flange Air Spring M31123 Airbag Shock Absorber CylinderStamped Flange Air Spring M31123 Airbag Shock Absorber CylinderStamped Flange Air Spring M31123 Airbag Shock Absorber CylinderStamped Flange Air Spring M31123 Airbag Shock Absorber Cylinder

FAQ

1. Q: How to order ?

A: Step 1, please tell us what model and quantity you need;

Step 2,then we will make a PI for you to confirm the order details;

Step 3,when we confirmed everything ,you can arrange the payment;

Step 4,finally we deliver the goods within the stipulated time.

2. Q: When will make delivery ?

A: Delivery time is 2-8woring days.

3. After-sales service

1 year warranty for all kinds of products;

If you have any questions after receiving the goods,please feel free to contact me,as an experienced manufacturer ,you can rest assured of the quality and after-sales service.

4. Payment

T/T,Western Union,L/C

5. Transportation

Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight.
