Specifications
Brand Name :
GUOMAT
Model Number :
W01-358-7781
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6PCS
Price :
$59.9-69.9/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Product Name :
Convoluted Rubber Air Bag
Material :
Made of high quality Rubber
Warranty :
1 Year
Price Condition :
FOB China
Sample :
Available
Operation :
Gas-filled
Air Inlet :
1/4NPT
Plate Diameter :
160mm
Description

Contitech Air Bag FD530-35545/Air Balloon W01-358-7781/Convoluted Type Air Spring Ridewell 1003587781C

Air Spring OEM Number

Firestone:W01-358-7781,W013587781,7781

Contitech:FD 530-35545,FD53035545,FD 530 355 45

Original Manufacturer

Ridewell:1003587781C

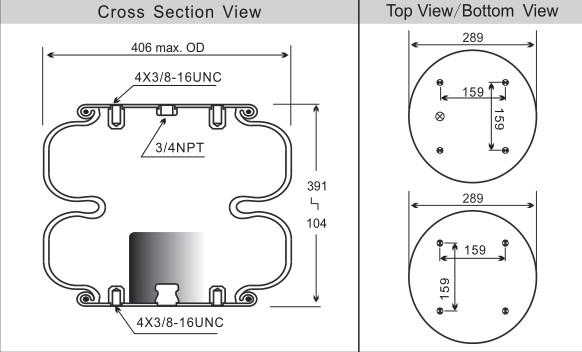

Air Spring Drawings And Parameter

FD530-35545 Contitech Air Bag Air Balloon W01-358-7781 Convoluted Type Air Spring Ridewell 1003587781C

Double Firestone Suspension Spring Technical Data
Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth 4X3/8 -13 UNC
Screw Distance of Top Cover Plate 157mm
Bottom Cover Plate Screw (Nut) Tooth 4X3/8-16UNC
Screw Center Distance of Bottom Cover Plate 159mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet 3/4NPT
Cover Plate
Top Cover Plate Diameter 289mm
Bottom Cover Plate Diameter 289mm
Rubber Bellow
Rubber Bellows MAX Diameter 406mm
The Working Stroke MAX 391mm to MIN 104 mm
Maximum Height 391mm
Minimum Height 104mm
Compression Height 287mm

Our Advantage

  1. The rubber is of high quality.
  2. The plate is the steel,coated Zn,high capacity and anti-corrosion.
  3. All air spring types can be used at a working temperature between -40°C and 70°
  4. We also have our strict series quality control.
  5. OEM Manufacturing welcome: Product
  6. Sample order is available.
  7. We will reply you for your inquiry in 24 hours.
  8. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

Common Applications for Air Spring

  • Various applications for the vehicle industry such as steering damping, engine vibration damping, belt tensioning damping for engines and on driver seats in commercial vehicles, etc.
  • On household products such as washing machines
  • Special shock absorbers for bicycles
  • On commercial lawn movers
  • In the medical equipment industry ie. on wheelchairs

Air Spring Delivery Time

Generally The Goods Will be send immediately by the Air/the Sea/the Express(DHL,UPS,FEDEX...)in 2-8 working days after receive your payment.And will keep you informed any news about your order process.

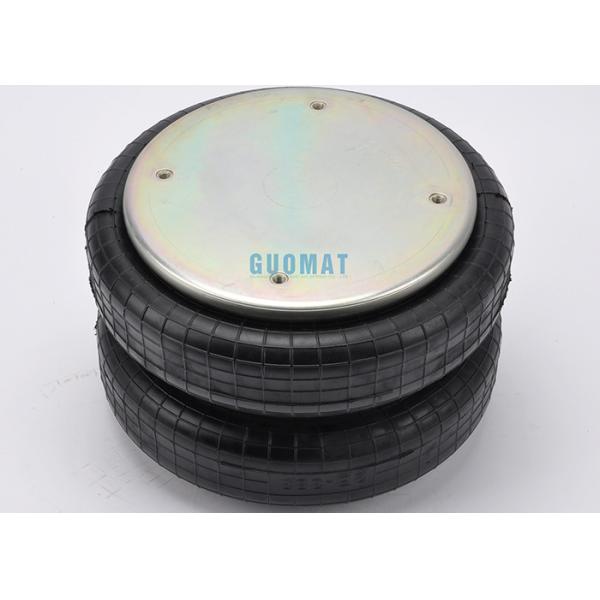

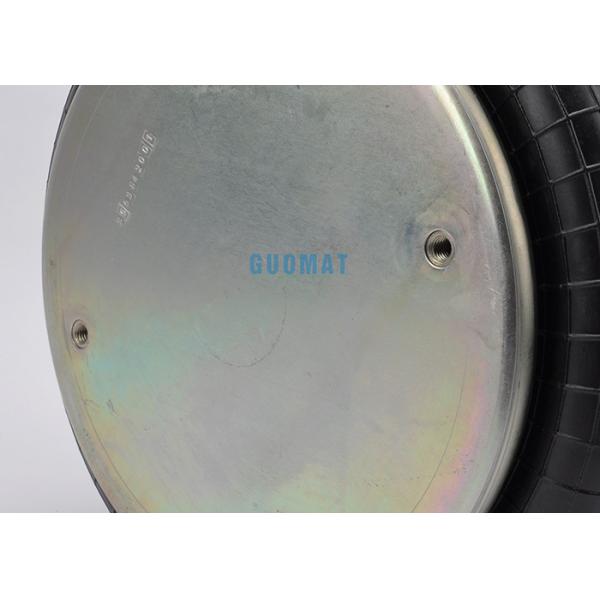

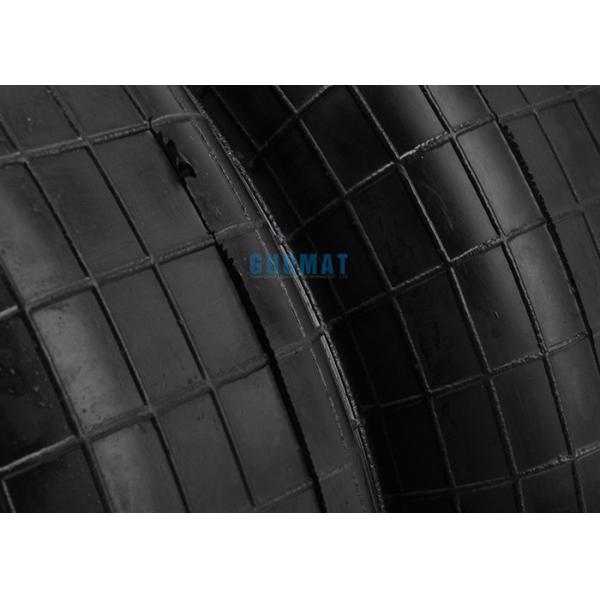

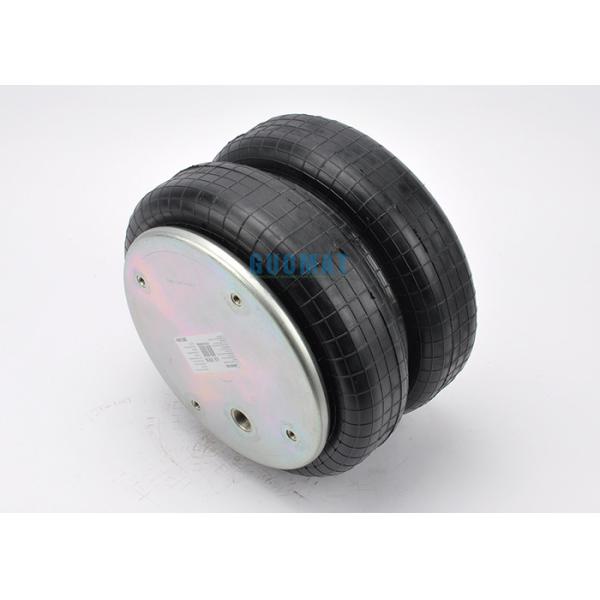

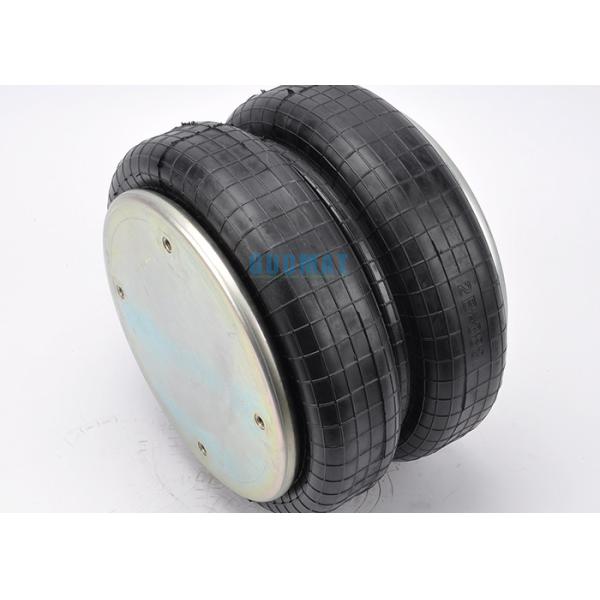

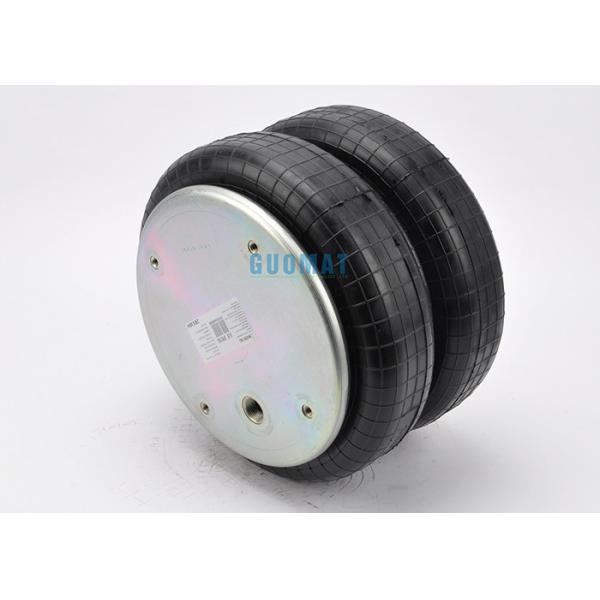

Air Spring Picture

FD530-35545 Contitech Air Bag Air Balloon W01-358-7781 Convoluted Type Air Spring Ridewell 1003587781CFD530-35545 Contitech Air Bag Air Balloon W01-358-7781 Convoluted Type Air Spring Ridewell 1003587781CFD530-35545 Contitech Air Bag Air Balloon W01-358-7781 Convoluted Type Air Spring Ridewell 1003587781CFD530-35545 Contitech Air Bag Air Balloon W01-358-7781 Convoluted Type Air Spring Ridewell 1003587781CFD530-35545 Contitech Air Bag Air Balloon W01-358-7781 Convoluted Type Air Spring Ridewell 1003587781CFD530-35545 Contitech Air Bag Air Balloon W01-358-7781 Convoluted Type Air Spring Ridewell 1003587781C

FAQ

1. Q: How to order ?

A: Step 1, please tell us what model and quantity you need;

Step 2,then we will make a PI for you to confirm the order details;

Step 3,when we confirmed everything ,you can arrange the payment;

Step 4,finally we deliver the goods within the stipulated time.

2. Q: When will make delivery ?

A: Delivery time is 2-8woring days.

3. After-sales service

1 year warranty for all kinds of products;

If you have any questions after receiving the goods,please feel free to contact me,as an experienced manufacturer ,you can rest assured of the quality and after-sales service.

4. Payment

T/T,Western Union,L/C

5. Transportation

Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight.
