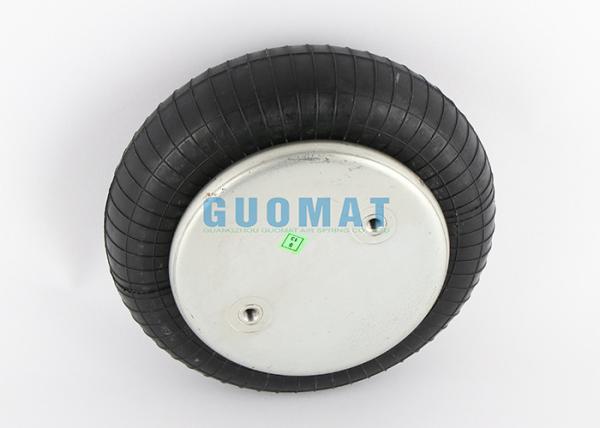

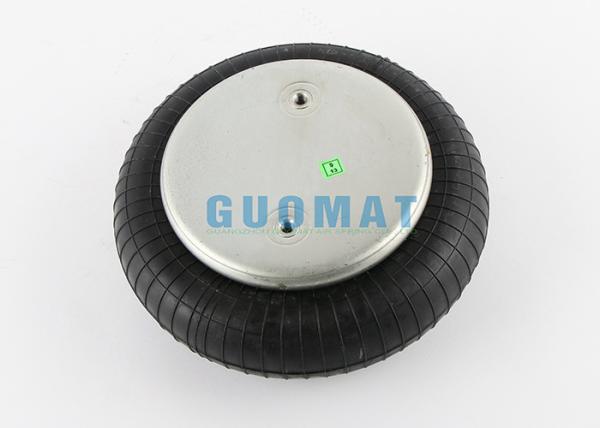

FS 200-10 CI Single Convoluted Air Spring G1/4 Industrial Rubber Air Bellow Bags For Paper Machine
FS 200-10 CI Single Convoluted Air Spring G1/4 Industrial Rubber Air Bellow Bags For Paper Machine
FS 200-10 CI Single Convoluted Air Spring G1/4 Industrial Rubber Air Bellow Bags For Paper Machine
FS 200-10 CI Single Convoluted Air Spring G1/4 Industrial Rubber Air Bellow Bags For Paper Machine
FS 200-10 CI Single Convoluted Air Spring G1/4 Industrial Rubber Air Bellow Bags For Paper Machine
FS 200-10 CI Single Convoluted Air Spring G1/4 Industrial Rubber Air Bellow Bags For Paper Machine
FS 200-10 CI Single Convoluted Air Spring G1/4 Industrial Rubber Air Bellow Bags For Paper Machine
FS 200-10 CI Single Convoluted Air Spring G1/4 Industrial Rubber Air Bellow Bags For Paper Machine
Specifications
Brand Name :
GUOMAT
Model Number :
FS200-10
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6PCS
Price :
$59.9-159.9/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Material :
Rubber And Steel
Warranty :
12 Months
Gas Hole :
G1/4
Air Suspension :
Contitech Air Spring
Number of Convolution :
1
Color :
Black
Contitech :
FS200-10
MOQ :
10 Pieces
Description

FS 200-10 CI Single Convoluted Air Spring G1/4 Industrial Rubber Air Bellow Bags For Paper Machine

Detailed Description For Contitech FS200-10

Manufacturer: Contitech

Part Number: FS 200-10 CI

Top Cover Plate Diameter: 161mm

The Screw (Nut) of the Top Cover Plate: 2XM8,15mm

The Distance Between the Screw of the Top Cover Plate: 89mm

Gas Hole: G1/4

Bottom Cover Plate Diameter: 161mm

The Screw (Nut) of the Bottom Cover Plate: 2XM8,15mm

The Distance Between the Screw of the Bottom Cover Plate: 89mm

The Rubber Bellow Diameter: 250mm

The Working Stroke: 51mm-140mm

Vibration isolation – dynamic characteristic values
Design height H: recommended 110mm, minimum 90mm

Pressure P ［bar］ 3 4 5 6 7 8 Volume V ［I］
Force (Load) ［KN］ 5.5 7.5 9.6 11.9 14 15.7 2.9
Spring Rate ［N/cm］ 150 205 260 315 370 425
Natural Frequency ［Hz］ 2.6 2.6 2.6 2.6 2.6 2.6

Pneumatic application – static characteristic values
Force F [kN]

Pressure P ［bar］ 3 4 5 6 7 8 Volume V ［I］
Height H ［mm］ 150 5.36 7.24 9.18 11.2 13.2 15.3 3.1
110 6.09 8.21 10.4 12.6 14.8 17.2 2.9
100 6.85 9.2 11.6 14 16.5 19 2.6
90 7.37 9.88 12.4 15 17.7 20.3 2.4
80 7.85 10.5 13.2 15.9 18.7 21.5 2.1
70 8.36 11.2 13.9 16.8 19.7 22.6 18
60 8.68 11.5 14.5 17.4 20.3 23.3 1.5

Material: Rubber

Warranty:1 Year Warranty

MOQ: 10 Pieces

Air Spring: Single Convoluted Air Spring

Color: Black

Gas Hole: G1/4 ; G3/4

Item: Bellows Style Industrial Air Spring

Contitech Assembly Number

FS 120-9 3/4 M8 ; FS120-9 3/4 M8

FS 120-9 1/4 M8 ; FS120-9 1/4 M8

FS 200-10 3/4 M8 ; FS 200-10 3/4 M8
FS 200-10 1/4 ; FS 200-10 1/4
FS 200-10 ; FS 200-10
FS 70-7 1/4 M8 ; FS 70-7 1/4 M8
FS 330-11 474 ; FS 330-11 474
FS 330-11 ; FS 330-11
FS 330-11 468 ; FS 330-11 468
FS 330-14 ; FS 330-14
FS 330-11 647 ; FS 330-11 647
FS 40-6 1/8 M8 ; FS 40-6 1/8 M8

Instructions for Using Rubber Air Spring

  • Warn

Do not inflate the air spring when it is not installed, unless the product is firmly installed in a suitable structure and the maximum pressure is 7 pressures, otherwise there is a risk of product damage or personal injury

  • Storage

Air springs should be placed indoors at room temperature, in a cool and dry place

  • Features

The air spring is made of high-quality spring material, and its good dynamic performance ensures that the air spring is maintenance-free and has a long service life.

  • Chemical Resistance

Wide operating temperature range from -53°C to 70°C
Resistant to oily compressed air
Anti-dust
Resistant to alkaline and acidic cleaners
Insensitive to atmospheric influences
Ozone resistant

  • Air springs are not resistant to the following substances

solvent
Hydraulic oil
grease
