Single Convoluted Air Suspension Air Spring Guomat 1B8X4 For Industrial Machine Reduce Shock
Single Convoluted Air Suspension Air Spring Guomat 1B8X4 For Industrial Machine Reduce Shock
Single Convoluted Air Suspension Air Spring Guomat 1B8X4 For Industrial Machine Reduce Shock
Single Convoluted Air Suspension Air Spring Guomat 1B8X4 For Industrial Machine Reduce Shock
Single Convoluted Air Suspension Air Spring Guomat 1B8X4 For Industrial Machine Reduce Shock
Single Convoluted Air Suspension Air Spring Guomat 1B8X4 For Industrial Machine Reduce Shock
Single Convoluted Air Suspension Air Spring Guomat 1B8X4 For Industrial Machine Reduce Shock
Single Convoluted Air Suspension Air Spring Guomat 1B8X4 For Industrial Machine Reduce Shock
Specifications
Brand Name :
GUOMAT
Model Number :
1B 8X4
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$49.9-59.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Spring Material :
Rubber and Steel
Warranty :
1 Year Warranty
Product Type :
Air Spring
Color :
Black
Firestone :
W01-358-7564
Goodyear :
1B8-550
Contitech :
FS120-10
Application :
For Industrial Equipment
Description

Guomat 1B8X4 Single Convoluted Air Suspension Air Spring For Industrial Machine Reduce Shock

Product Description

FIRESTONE Number: W01-358-7564

FIRESTONE Number: W01 358 7564

FIRESTONE Number: W013587564

FIRESTONE Part Number: WO1-358-7564

FIRESTONE Part Number: WO1 358 7564

FIRESTONE Part Number: WO13587564

GOODYEAR Part Number: 1B8-550

GOODYEAR Part Number: 1B8 550

GOODYEAR Part Number: 1B 8-550

CONTITECH Part Number: FS120-10

CONTITECH Part Number: FS 120-10

CONTITECH Part Number: FS120 10

Original Equipment Manufacturer Number

Firestone

w01-358-7564

Firestone

w01 358 7564

Firestone

w013587564

Goodyear

1b8-550

Goodyear

1b8 550

Goodyear

1b 8-550

Contitech

fs120-10

Contitech

fs 120-10

Contitech

fs 12010

Technical Data

Working Temperature

-40°C bis +70°C

Failure Testing

≥3 millions

Top Cover Plate Diameter

135mm

Bottom Cover Plate Diameter

135mm

Gas Hole / Air inlet

1/4NPTF

Rubber Bellows MAX Diameter

230mm

The Working Stroke

MAX 140 mm to MIN 50 mm

Top Cover Plate Screw (Nut) Tooth

2X3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth

2X3/8-16UNC

Screw Center Distance of Top Cover Plate

70mm

Screw Center Distance of Bottom Cover Plate

70mm

Air Spring Industry-Specific Applications

►Lift Tables
Automotive lift
Pallet lift station
Parts cage lift

►Robotics
Pick & Place
Offset load stabilizer
End of arm tooling

►Packaging
Conveyor Systems
Conveyor stop
Transfer station

►Forestry & Timber
Debarking Machine
Apply force at angle
Adjusts for vibrations

►Heavy Industry
Cement Brick Making
Dirty environment
Double-acting
No clevis needed

►Pulp & Paper
Web Positioner
Chemical resistant
High temperature

Packaging Details

Item

Item No.

N.W(kg)

G.W(kg)

Packing Length(cm)

Packing Width(cm)

Packing Height(cm)

Qty

Air Spring Bag

1B8X4

2.018

6.434

24

24

24

3

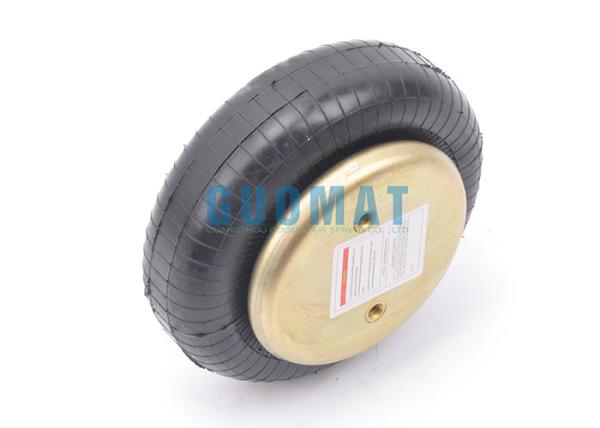

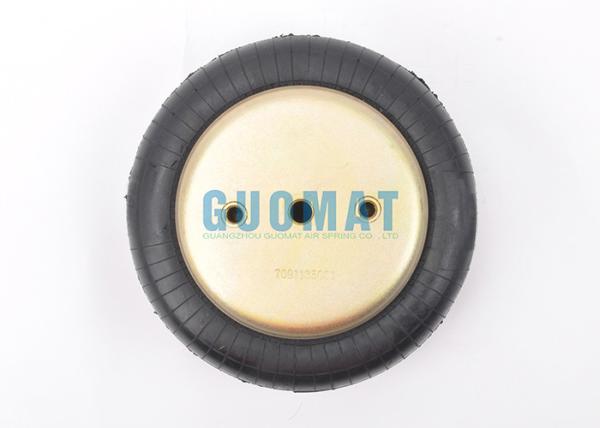

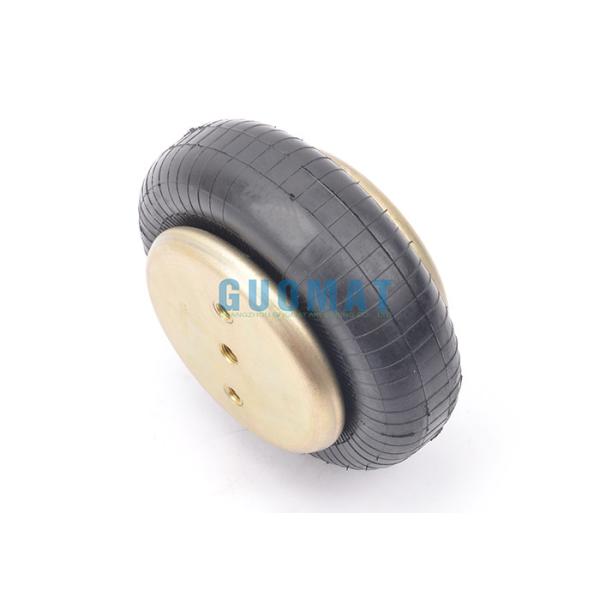

The Real Pictures of Firestone Rubber Air Bags

Single Convoluted Air Suspension Air Spring Guomat 1B8X4 For Industrial Machine Reduce ShockSingle Convoluted Air Suspension Air Spring Guomat 1B8X4 For Industrial Machine Reduce Shock
