2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate
2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate
2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate
2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate
2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate
2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate
2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate
2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate
Specifications
Brand Name :
GUOMAT
Model Number :
2B4060
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$59.9-69.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Item Type :
Rubber Air Spring
Main Material :
Natural Rubber
Warranty :
1 Year Warranty
Function :
Reduce Shock
Size :
24cm*24cm*24cm
Bearing Range :
50-500KG
Contitech :
FD40-10
Color :
Black
Description

Guomat 2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate

Product Description

GUOMAT NO.2B4060 can be replace Contitech FD40-10.Can be used for shock absorption of industrial equipment.At the same time reduce noise, prolong the service life of industrial machines and increase efficiency.

Manufacturer: Contitech

OEM Number:FD40-10

:FD 40-10

:FD40-10 CI 1/8 NPT

Warranty: 12 Months Warranty

Material:Rubber/Steel

Application: Industrial Machine

MOQ: 10 Pieces

Function: Reduce Vibration

Key Words: Double Convolution Air Spring

Contitech FD 40-10 Air Bellow Technical Data

Top Cover Plate Diameter (Width): 90 mm
Bottom Cover Plate Diameter (Width): 90 mm
Air inlet : G1/8
Top Cover Plate Screw (Nut) Tooth : 2 X M8X1.25
Screw Center Distance of Top Cover Plate : 20 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 X M8X1.25
Screw Center Distance of Bottom Cover Plate : 20 mm
Rubber Bellows Natural Diameter : 125mm
Rubber Bellows Natural Height : 145 mm

Min.pressure 0 bar
Return Force to Min.Height ≤200N
Overall Weight with Clamped Plate 1.1kg

Vibration isolation-dynamic characteristic Values

Design height H:Recommened 160mm,minimum 150m

Pressure P [bar] 3 4 5 6 7 8 Vol.[I]
Force(Load) [KN] 1.1 1.5 2.0 2.4 2.8 3.2 1.2
Spring Rate [N/cm] 340 450 580 700 825 950
Natural Frequency [Hz] 2.8 2.8 2.7 2.7 2.7 2.7

Pneumatic Application-Static Characteristic Values

Force F(kN)

Pressure P [bar] 3 4 5 6 7 8 Vol.[I]
Height H [mm] 160 1.1 1.6 2.0 2.4 2.8 3.2 1.2
140 1.6 2.2 2.8 3.3 3.9 4.5 1.1
120 2.0 2.7 3.4 4.1 4.8 5.5 0.9
100 2.3 3.1 4.0 4.8 5.6 6.4 0.7
80 2.6 3.5 4.5 5.4 6.3 7.1 0.6

Product ID

OEM

Description

Application

2B6884

W01-358-6884

Manufacturer

Firestone Air Spring

Industrial equipment vibration reduction

2B6897

W01-358-6897

Manufacturer

Firestone Air Spring

Industrial equipment vibration reduction

2B6900

W01-358-6900

Manufacturer

Firestone Air Spring

Industrial equipment vibration reduction

2B6902

W01-358-6902

Manufacturer

Firestone Air Spring

Industrial equipment vibration reduction

2B6905

W01-358-6905

Manufacturer

Firestone Air Spring

Industrial equipment vibration reduction

2B6908

W01-358-6908

Manufacturer

Firestone Air Spring

Industrial equipment vibration reduction

2B6910

W01-358-6910

Manufacturer

Firestone Air Spring

Industrial equipment vibration reduction

2B6926

W01-358-6926

Manufacturer

Firestone Air Spring

Industrial equipment vibration reduction

2B6932

W01-358-6932

Manufacturer

Firestone Air Spring

Industrial equipment vibration reduction

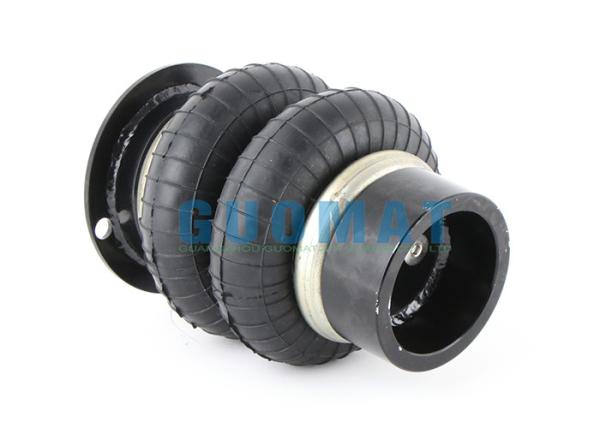

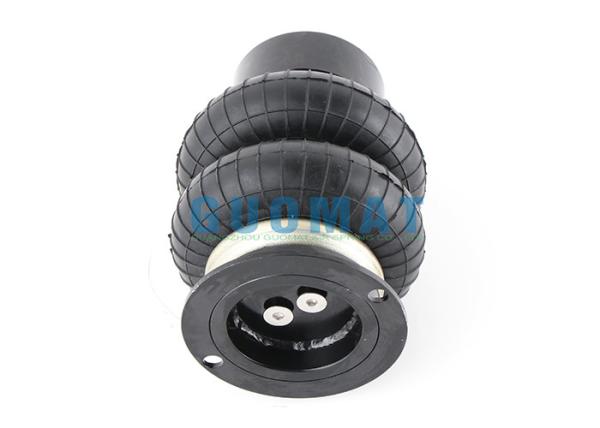

The Real Pictures

2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate2B4060 Contitech Industrial Air Suspension Air Spring FD 40-10 With 125mm Cover Plate
