2B8X2 Air Springs Bags Actuator FD138-18 DS Plate Industrial Rubber Bellows 1/4NPT Gas Filled

Product Description

Item: Guomat 2B8X2 Convoluted Air Bags

Spring Material: Rubber+Steel

Warranty: 12 Months

MOQ: 10 Pieces

Certificate: ISO/TS16949:2009

Color: Black

Application: For Industrial Machine

Other Name: Air Actuator

Cross Reference Number

Contitech Air Spring: FD138-18 1/2 M10

Contitech Air Spring: FD 138-18 1/2 M10

Contitech Air Spring: FD 138-18 DS 1/2 M10

Contitech Air Spring: FD 138-18 DS G1/2 M10

Contitech Air Spring: FD 138-18 DS G1/2 CR

Contitech Air Spring: FD138-18 DS/FD 138-18 DS/FD13818DS

Contitech Air Spring: FD 138-18 / FD138-18/ FD13818

Firestone Air Spring: W01-R58-4055

Firestone Air Spring: W01 R58 4055

Firestone Air Spring: W01R584055

Firestone Air Spring: WO1-R58-4055

Firestone Air Spring: WO1 R58 4055

Firestone Air Spring: WO1R584055

Firestone Air Spring: 8X2/8''X2/8''x2

Goodyear Air Spring: 2B8-2150

Goodyear Air Spring: 2B 8-2150

Goodyear Air Spring: 2B8 2150

Goodyear Flex No.: 578-92-3-2150

Goodyear Flex No.:57892 3 2150

Goodyear Flex No.:5789232150

Norgren Air Spring: M/31082

Norgren Air Spring:M 31082

Norgren Air Spring:M31082

Dunlop FR: SP1490
Dunlop FR: SP918
Dunlop UK (Pneuride): PNP 30550 01 12 1 PNP305500112

YS-AIR: YS-210-2V

YS-AIR:YS 2102V

YS-AIR:YS2102V

Springride: 2B8 -2150 1 2B82150 /2B82150
Springride Flex No.: 578-92-3-2150;

Springride Flex No.:578923 2150;

Springride Flex No.:5789232150

WEFORMA: WBZ-G 350 1 WBZ-G350 1 WBZG350
Airtech: 113060
Airtech Ref.: 2B-200 12B 200 12B200
Prime- Ride New: 2B8-2150 1 2B82150 12B82150
Prime- Ride New Flex No.: 578- 92-3-2150/ 578 92 32150/
5789232150

2B8X2 Technical Data

♦Top Cover Plate Diameter: 135mm/5.3inch

♦Screw Center Distance of Top Cover Plate : 70mm/2.8inch

♦Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

♦Bottom Cover Plate Diameter: 135mm5.3inch

♦Screw Center Distance of Bottom Cover Plate : 70mm/2.8inch

♦Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

♦Gas Hole: 1/4NPT

♦Rubber Bellow Diameter: 185mm/7.3inch

♦Rubber Bellow Height: 196mm/7.7inch

Min.Pressure:0 bar

Return Force to Min.Height: ≤200N

Overall Weight with Clamped Plates:2.3KG

Vibration Isolation-Dynamic Characteristic Values

Design Height H:Recommended 205mm,minimum 190mm

Pneumatic Application-Static Characteristic Values

Force F(kN)

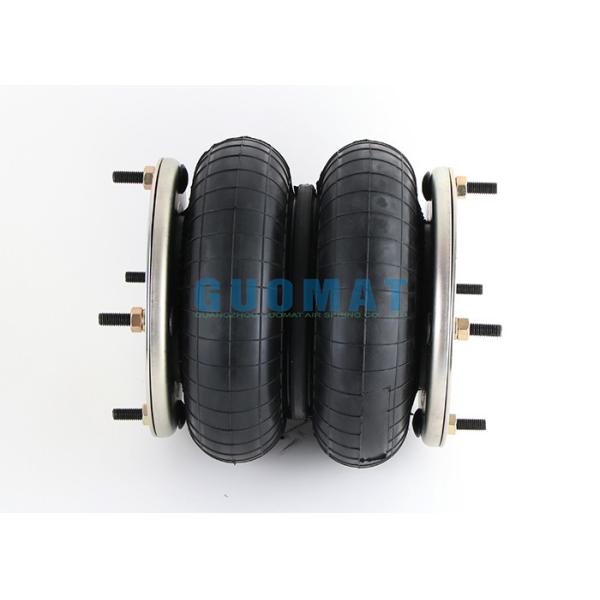

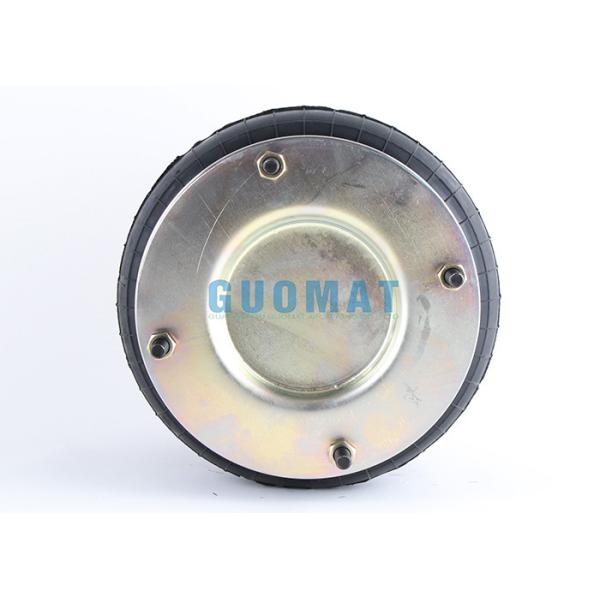

The Real Pictures
