Specifications
Brand Name :
GUOMAT
Model Number :
1B5050
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$49.9-59.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Warranty :
12 Months
Material :
Metal+Rubber
Color :
Black
Function :
Reduce Shock
Gas Hole :
G3/4
Spring Type :
Single Convoluted Air Spring
Phoenix :
SP1B12
Norgren :
PM/31091(81/4x1)
Description

Contitech FS200-10 CI Single Industrial Air Spring PM/31091 Norgren Helper Springs Pneumatics

Product Description

Item

Rubber Air Spring

Model No.

1B5050

Material

Natural Rubber+High Quality Steel

Warranty

12 Months

MOQ

10 Pieces

Color

Black

Technical Data

Gas Hole / Air Inlet: G3/4

Top Cover Plate Diameter: Ø160mm

Screw Center Distance of Top Cover Plate: 89mm

Distance Between Air Hole and Screw: 38mm

Top Cover Plate Screw (Nut) Tooth: 2XM8X1.25

Bottom Cover Plate Diameter: Ø160mm

Screw Center Distance of Bottom Cover Plate: 89mm

Bottom Cover Plate Screw(Nut)Tooth: 2XM8X1.25

The Rubber Bellow Diameter: 220mm

The Working Stroke: 110mm

OEM Number

Firestone Part Number

W01-M58-6374

W01 M58 6374

W01M586374

WO1-M58-6374

WO1 M58 6374

WO1M586371

Contitech Part Number

FS 200-10

FS200-10

FS 200-10 CI

FS200-10 CI

Phoenix Part Number SP1B12

Phoenix Part Number SP 1B 12

Dunlop(FR) Part Number 9"1/4x1

Dunlop(FR) Part Number S09101

Bosch Part Number 822419004

Festo Part Number EB-250-85

Norgren Part Number PM/31091

Norgren Part Number 8 1/4 X1

Gas-Filled Hole / Air Inlet: By filling air porosity for inflatable air spring

Bolt / Mounting Stud: Bolt is fixed as the installation of air spring in car or equipment

Upper Retainer: Upper Retainer to protect the whole air spring

Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision

Flexible Bellows: The main part can lock the air and flexible activities up and down

Piston/ The base: Base is also carrying fluctuation pressure, sealed air and make skins can according to the fluctuation of the trajectory

Mounting Stud: fixed as the installation of air spring in car or equipment

GUOMAT Single Convoluted Rubber Air Spring

GUOMAT NO.

OEM NO.

Gas Hole

Rubber Bellow(mm)

The Stroke(mm)

1B4060

FS 40-6

G1/8

145

50-110

1B7070

FS 70-7

G1/4

165

50-115

1B5010

W01-358-7731

1/4NPTF

165

50-115

1B1209

W01-M58-6374

G3/4

220

110

1B8X4

W01-358-7564

1/4NPTF

230

50-140

1B8580

W01-358-7598

240

60-180

1B6910

W01-M58-6374

G3/4

220

110

1B6910P01

W01-358-0118

G1/4

220

110

1B6910P02

W01-358-0118

1/4NPTF

220

110

1B6910P03

W01-M58-6374

1/4NPTF

220

110

1B9202

1B9-202

1/4-18NPTF

222

60-160

1B5330

W01-358-7008

1/4NPTF

325

55-160

1B53014

W01-358-7103

1/4NPTF

406

81-160

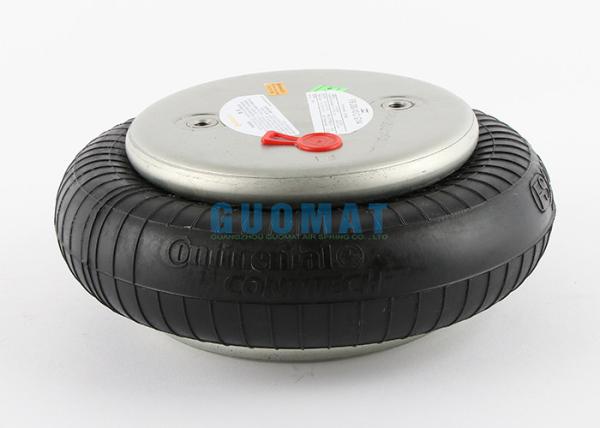

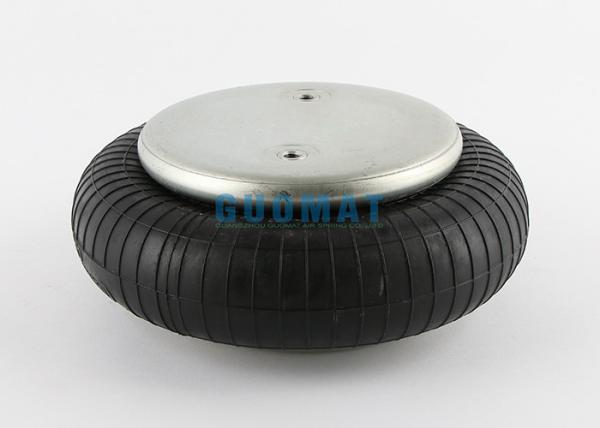

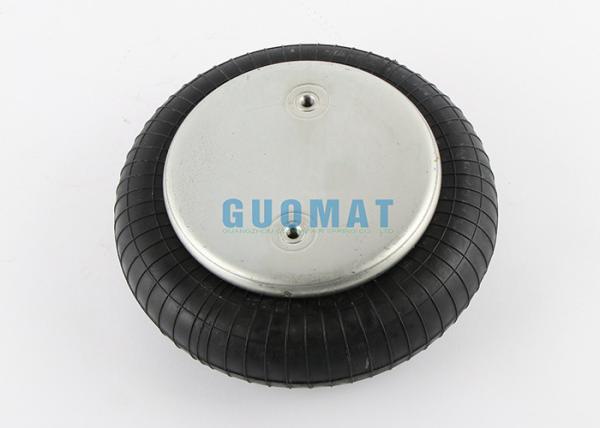

The Real Pictures

Contitech FS200-10 CI Single Industrial Air Spring PM/31091 Norgren Helper Springs PneumaticContitech FS200-10 CI Single Industrial Air Spring PM/31091 Norgren Helper Springs Pneumatic
