Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag
Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag
Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag
Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag
Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag
Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag
Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag
Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag
Specifications
Brand Name :
GUOMAT
Model Number :
4 1/2 X 2
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$59.9-69.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Part Number :
W01-R58-4051
Warranty :
1 Year
Material :
Natural Rubber + Aluminum
Packing Size :
24*24*24(cm)
Net Weight :
3.5Kg
Dunlop Number :
4 1/2 X 2
Type :
Convoluted Type
Product Features :
Reduce vibration
Description

Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag Firestone Industrial Air Spring W01-R58-4051

Product Description

4 1/2 X 2 Equivalences

CONTINENTAL CONTITECH : FD 44-10 DI CR

FD 44-10

FD44-10

FD4410

FD 44-10 DI G3/8 CR

FD 44-10 DI CR G3/8

FD 44-10 DI G3/8 M6

FD 44-10 DI CR 70206

FIRESTONE : W01-R58-4051

W01R584051

W01 R58 4051

W01/R58/4051

DUNLOP FR : SP2441

SP 2441

DUNLOP UK (PNEURIDE) : PNP 305590107

PNP305590107

PNP 30559 01 09

YS-AIR : YS-115-2V

YS 115 2V

YS1152V

NORGREN : PM/31042

PM 31042

PM31042

Dimensions(Pouces)

41/2 X2 / 41/2x2 / 41/2'' x2 / 4.5x2 / 4.5'' x2

The Dimensions of 4 1/2 X 2

Maximum Diameter : 125mm
Space Required : 140mm
Minimum Height : 65mm
Maximum Height : 145mm
Total Stroke : 80mm
Static Height : 100mm
Effective Area at Static Height : 67cm2

Gas Hole : 3/8 BSP

Screw (Nut) : M6

Condition of Use

Maximum Working Pressure 8 bar
Burst Pressure 50 bar
Maximum Angle Between
Top & Bottom Plates 		15o
Maximum Axial Offset 10 mm

Operating Temperature

Standard Rubber

Minimum -30℃ (40℃ Static)

Maximum +70℃(+90℃ Static)

Chlorobutyl Rubber

Minimum -25℃ (-30℃ Static)

Maximum +90℃(+115℃ Static)

Precautions to Observe

  • Do not exceed stated stroke.
  • Do not inflate assembly when it is unrestricted.
  • Respect maximum and minimum heights.
  • The bellows must be securely fixed.
  • Do not use without air pressure.

Other Kinds of Firestone Air Springs

W01-R58-4087 W01-R58-4088 W01-R58-4089
W01-095-0532 W01-095-0464 W01-358-7808
W01-358-7818 W01-681-7314 W01-358-8042
W01-M58-6126 W01-M58-6127 W01-M58-7953
W01-R58-4081 W01-R58-4043 W01-R58-4050
W01-R58-4051 W01-R58-4076 W01-R58-4035
W01-R58-4052 W01-R58-4078 W01-R58-4036
W01-R58-4053 W01-R58-4070 W01-R58-4095
W01-R58-4054 W01-R58-4085 W01-R58-4045
W01-R58-4055 W01-R58-4056 W01-R58-4057

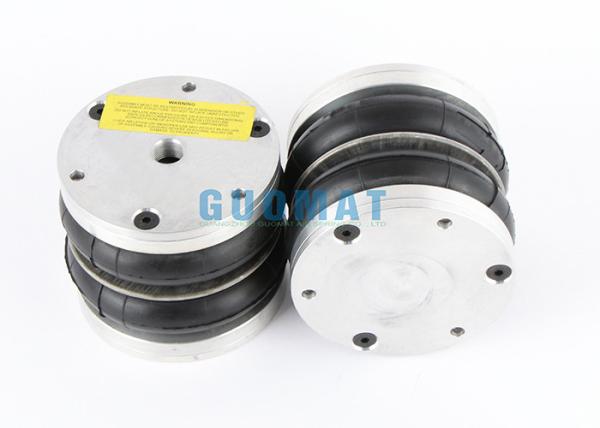

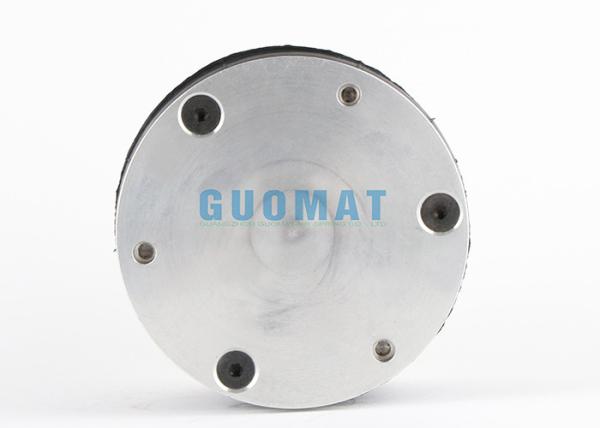

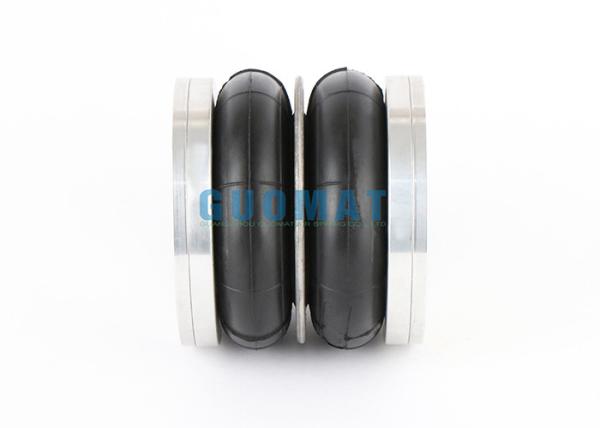

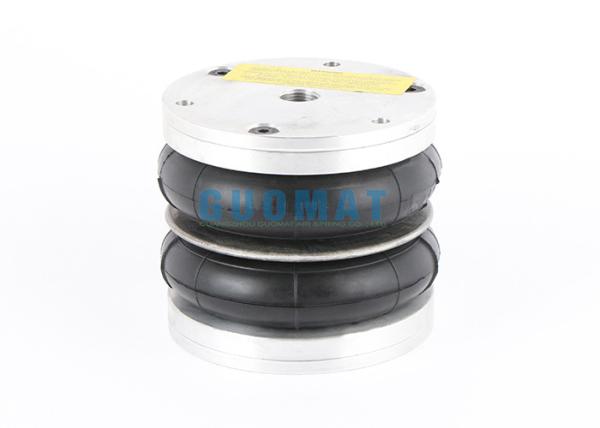

Product Picture

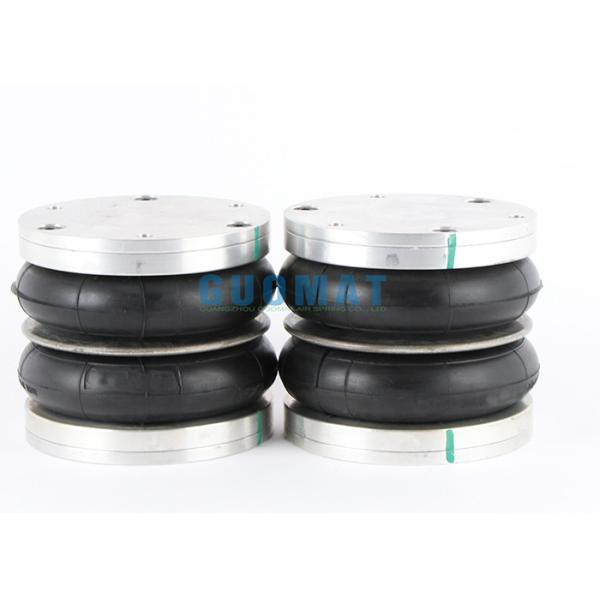

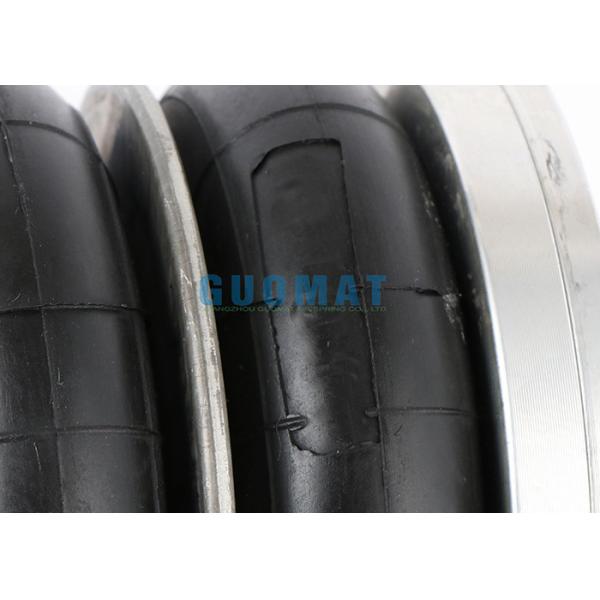

Firestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift BagFirestone Industrial Air Spring W01-R58-4051 Dunlop 4 1/2 X 2 Double Convolution Air Lift Bag
