Double Convoluted Air Spring Assembly W01-358-7180 Firestone Industrial Rubber Bellows
Double Convoluted Air Spring Assembly W01-358-7180 Firestone Industrial Rubber Bellows
Double Convoluted Air Spring Assembly W01-358-7180 Firestone Industrial Rubber Bellows
Double Convoluted Air Spring Assembly W01-358-7180 Firestone Industrial Rubber Bellows
Double Convoluted Air Spring Assembly W01-358-7180 Firestone Industrial Rubber Bellows
Double Convoluted Air Spring Assembly W01-358-7180 Firestone Industrial Rubber Bellows
Double Convoluted Air Spring Assembly W01-358-7180 Firestone Industrial Rubber Bellows
Double Convoluted Air Spring Assembly W01-358-7180 Firestone Industrial Rubber Bellows
Specifications
Brand Name :
GUOMAT
Model Number :
FD 330-22 363
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$49.9-59.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Material :
Rubber+Metal
Warranty :
12 Months Warranty
Performance :
Reduced Vibration
Working Temperature :
-40℃ bis +70℃
Gas Hole :
1/4NPTF
Firestone :
W01-358-7180/22
Goodyear :
2B12-425/311
SAF Holland :
57007180
Description

Double Convoluted Air Spring Assembly W01-358-7180 Firestone Industrial Rubber Bellows

Product Description

Item Name

Air Shock, Air Balloon

Part Number

2B7180

Material

Rubber + Steel

Warranty

1 Year

Net Weight

5.387kg

 Shipping Packing Brown Neutral Carton Box

Packing Size

 24*24*24(cm) Position Front/Rear

OEM Number of GUOMAT 2B7180

Firestone W01-358-7180/22

Firestone W01 358 7180/22

Firestone W013587180/22

Contitech FD 330-22 363
Contitech FD330-22 363
Contitech FD 330-22363
Goodyear 2B12-425/311
Goodyear 2B 12-425/311
Goodyear 578923309
Goodyear 578 923 309
Triangle 6316
Triangle 4363
Airkraft 115061
Airkraft 3B-356

Applicable to the following vehicles

Vibracoustic VSP2B22R7180

EI Ride 8030190
Kwiklok/Todco(Jifflox)
Leland Sc2075
Navistar 1685179C1
Hendrickson 1VA1816
Ridewell 1003587180C
SAF Holland 57007180
Watson&Chalinl AS01541G/01881F
Peerless 0550 00001

W01-358-7180/22 Air Bellow Technical Data

Nut/Blind Nut

Top Cover Plate Screw (Nut) Tooth

2X3/8 -16UNC

Screw Center Distance of Top Cover Plate

157mm

Screw and Air Inlet Distance of Top Cover Plate

73mm

Bottom Cover Plate Screw (Nut) Tooth

2X3/8-16UNC

Screw Center Distance of Bottom Cover Plate

157mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet

1/4NPTF

Cover Plate

Top Cover Plate Diameter

231mm

Bottom Cover Plate Diameter

231mm

Rubber Bellow

Rubber Bellows MAX Diameter

325mm

The Working Stroke

MAX 305mm to MIN 81 mm

Maximum Height

305mm

Minimum Height

81mm

Compression Height

224mm

1B7180 Other air holes of rubber air spring

Model Number

Air Hole

1B7180

1/4NPTF

1B7180-A

G1/2

1B7180-D

G1/4

Packaging and Shipping
1. For small orders in stock, we usually ship within 2-8 working days after your payment.
2. For out-of-stock products or bulk orders, we will arrange a delivery time with you according to the production situation
3. Our payment terms, full payment or 30% deposit and 70% before shipment.
4. Due to the difference in the actual weight, volume and receiving address of the product, the shipping fee will also change accordingly, please contact us for shipping information.

About Us
Our goal is to produce high-quality shock absorbing products, provide quality merchandise at unbeatable prices, and serve customers worldwide, while always focusing on excellent customer service.

Please feel free to contact us and ask any questions, all questions will be answered promptly. We have a professional sales team to provide excellent pre-sale and after-sale service.

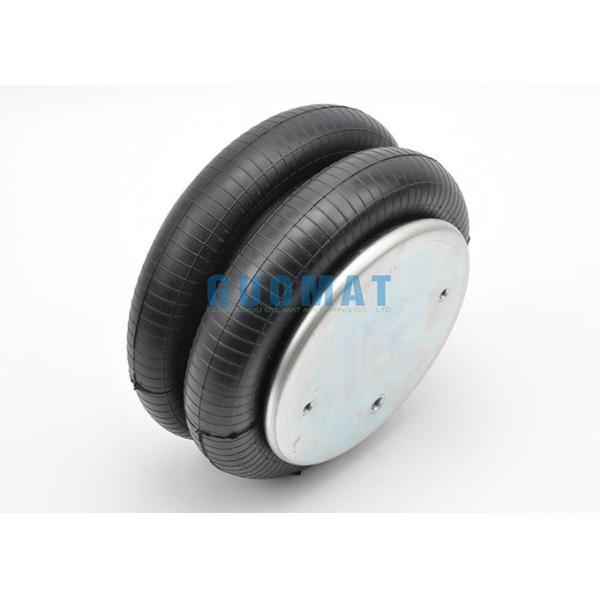

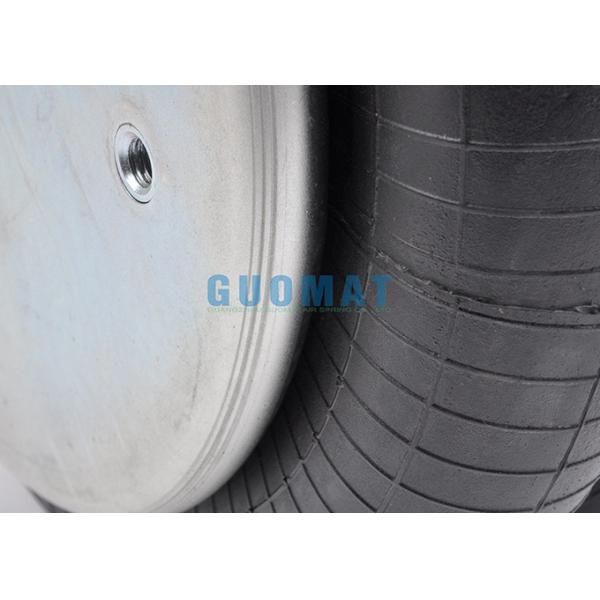

FD 330-22 363 Contitech Air Springs Real Pictures

Double Convoluted Air Spring Assembly W01-358-7180 Firestone Industrial Rubber Bellows Double Convoluted Air Spring Assembly W01-358-7180 Firestone Industrial Rubber Bellows
