Contitech FD 40-10 CI Continental Double Convolution Air Actuator With G1/8 Gas Hole
Contitech FD 40-10 CI Continental Double Convolution Air Actuator With G1/8 Gas Hole
Contitech FD 40-10 CI Continental Double Convolution Air Actuator With G1/8 Gas Hole
Contitech FD 40-10 CI Continental Double Convolution Air Actuator With G1/8 Gas Hole
Contitech FD 40-10 CI Continental Double Convolution Air Actuator With G1/8 Gas Hole
Contitech FD 40-10 CI Continental Double Convolution Air Actuator With G1/8 Gas Hole
Contitech FD 40-10 CI Continental Double Convolution Air Actuator With G1/8 Gas Hole
Contitech FD 40-10 CI Continental Double Convolution Air Actuator With G1/8 Gas Hole
Specifications
Brand Name :
GUOMAT
Model Number :
2B 4060
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$59.9-69.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Convoluted Type :
Double Convoluted Type
Warranty :
1 Year
Material :
Natural Rubber and Aluminum Cover
Bearing Range :
50-500Kg
Natural Outer Diameter :
130mm
Package :
Carton/Cartons
Color :
Black
Other Name :
Air Springs Bellows Actuator
Description

Contitech FD 40-10 CI Continental Double Convolution Air Actuator With G1/8 Gas Hole


Product Description

  • Double Convoluted Air Spring

  • Material Rubber,Steel

  • One Year Factory Warranty

  • OEM Quality and Service

  • High Cost Performance

  • MOQ 1 PC

  • GUOMAT Number 2B4060

  • Payment Method:L/C,T/T,Western Union and PayPal

​Interchange Number

CONTITECH FD 40-10

CONTITECH FD40-10

CONTITECH FD 40-10 CI

CONTITECH FD 40-10 CI M8

CONTITECH FD 40-10 CI G1/8

CONTITECH FD 40-10 CI M8 G1/8

CONTITECH FD 40-10 CI G1/8 M8

CONTITECH FD 40-10 M8 G1/8 CI

CONTITECH FD 40-10 G1/8 M8 CI

FD 40-10 Helper Springs Pneumatics Technical Data

Cover Plate

Top Cover Plate Diameter:90mm

Bottom Cover Plate Diameter:90mm

Air Inlet

G1/8

Blind Nut

Screw Center Distance Of Bottom Cover Plate:20mm

Screw And Gas Hole Distance Of Top Cover Plate:20mm

Top Cover Plate Screw (Nut) Tooth:1xM8x1.25

Bottom Cover Plate Screw (Nut) Tooth:2xM8x1.25

Rubber Bellow

Rubber Bellow MAX Diameter:125mm

The Working Stroke:145mm

New installation method of bus air spring

Reasonable installation of the air spring can prolong its service life. In daily maintenance, we need to replace the damaged or leaking air spring in time. So how to quickly replace the air spring?

1. Before installation, apply lubricating glue (tire lubricating glue) evenly on the upper and lower bases of the spring to reduce the friction generated when the new air spring is installed, and at the same time protect the air spring and its contact position from being damaged.

2. Place the new air spring on a dry surface, firmly grasp both sides of the spring with both hands, and press the spring down until its volume is large enough to fit into the "upper and lower base" section.

3. When installing, first combine the bottom of the air spring with the lower base, and then adjust the top of the spring to enter the upper base. When the air spring is basically placed between the upper and lower bases, open the air pressure valve to inflate the spring, and the maintenance personnel need to support it with both hands. projectile to prevent excessive displacement.

4. After 10-15 seconds of inflation, the air spring is fully inflated. At this time, spray foam water on the projectile body, and carefully check whether the newly installed air spring has good sealing performance and whether the projectile body is damaged. If there is no problem, the installation is completed and the vehicle can operate normally.

D Series Flanged Air Spring

Convoluted Type

GUOMAT Number

Contitech Number

Single Convoluted

FS 22-3

FS 22-3 DI CR

Single Convoluted

FS 44-5

FS 44-5 DI CR

Single Convoluted

FS 76-7

FS 76-7 DI CR

Single Convoluted

FS 76-7

FS 76-7 DS CR

Single Convoluted

FS 138-8

FS 138-8 DS

Single Convoluted

FS 210-10

FS 210-10 DS

Single Convoluted

FS 412-10

FS 412-10 DS

Single Convoluted

FS 614-13 DS

FS 614-13 DS

Single Convoluted

FS 816-15

FS 816-15 DS

Double Convoluted

FD 22-4

FD 22-4 DI CR

Double Convoluted

FD 44-10

FD 44-10 DI CR

Double Convoluted

FD 76-14

FD 76-14 DI CR

Double Convoluted

FD 76-14

FD 76-14 DS CR

Double Convoluted

FD 138-18

FD 138-18 DS

Double Convoluted

FD 209-21

FD 209-21 DS

Double Convoluted

FD 210-22

FD 210-22 DS

Triple Convoluted

FT 22-6

FT 22-6 DI CR

Triple Convoluted

FT 44-15

FT 44-15 DI CR

Triple Convoluted

FT 76-20

FT 76-20 DI CR

Triple Convoluted

FT 76-20

FT 76-20 DS CR

Triple Convoluted

FT 138-26

FT 138-26 DS

Triple Convoluted

FT 210-32

FT 210-32 DS

Triple Convoluted

FT 412-32

FT 412-32 DS

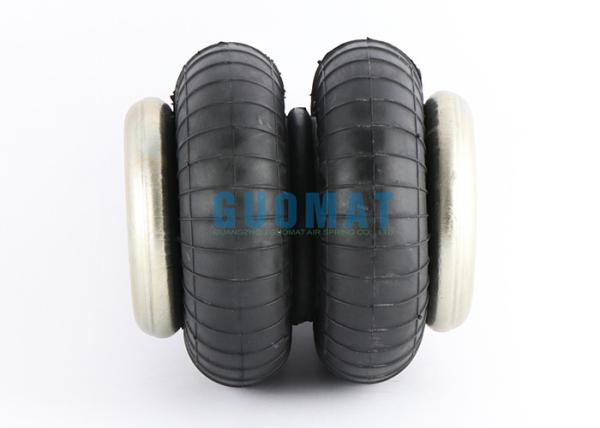

Real Product Picture

Contitech FD 40-10 CI Continental Double Convolution Air Actuator With G1/8 Gas HoleContitech FD 40-10 CI Continental Double Convolution Air Actuator With G1/8 Gas Hole
