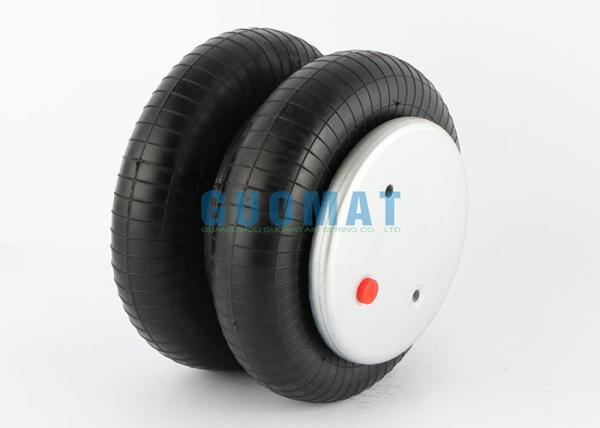

2B9-200 Goodyear Air Spring Firestone W01-358-6910 Convoluted Rubber Bellows
2B9-200 Goodyear Air Spring Firestone W01-358-6910 Convoluted Rubber Bellows
2B9-200 Goodyear Air Spring Firestone W01-358-6910 Convoluted Rubber Bellows
2B9-200 Goodyear Air Spring Firestone W01-358-6910 Convoluted Rubber Bellows
2B9-200 Goodyear Air Spring Firestone W01-358-6910 Convoluted Rubber Bellows
2B9-200 Goodyear Air Spring Firestone W01-358-6910 Convoluted Rubber Bellows
2B9-200 Goodyear Air Spring Firestone W01-358-6910 Convoluted Rubber Bellows
2B9-200 Goodyear Air Spring Firestone W01-358-6910 Convoluted Rubber Bellows
Specifications
Brand Name :
GUOMAT
Model Number :
2B9-200
Certification :
ISO/TS16949:2009
Place of Origin :
GuangDong, China
MOQ :
6pcs
Price :
$59.9-69.9/pc
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
Strong Carton Box Or As Customers Need
Spring Type :
Convoluted Type Air Spring
Material :
Rubber+Steel
Warranty :
One Year
Packing Size :
24*24*24(cm)
Packing :
Neutral packaging or packaging according to customer requirements
Natural Outer Diameter :
224mm
Other Name :
Helper Springs Pneumatics
Blind Nut :
2X3/8-16UNC
Description

Goodyear Air Spring 2B9-200 Firestone W01-358-6910 Spring Convoluted Rubber Bellows

Product Description

Item Name

Industrial Air Spring

Model Number

2B9-200

Material

Natural Rubber+Steel

Warranty

12 Months

Color

Black

Number of Convolution

2

Package

Strong Carton

Delivery Time

2-8 working days

Product Category: Industrial Equipment Shock Absorption
Scope of application: airbags for papermaking equipment, pneumatic tires for correctors, pneumatic tires for paper machine cloth correctors, airbags for calenders, airbags for presses, pneumatic tires for scraper wire, pneumatic tires for dehydrators, airbags for press rolls, air-drying tank airbags, paper Sizing press airbag, glue machine airbag
Natural outer diameter: 230MM
Bearing range: 50-2500KG
GUOMAT NO.: 2B6910

OEM Number of 2B9-200

FIRESTONE W01-358-6910

FIRESTONE W013586910

FIRESTONE W01/358/6910

FIRESTONE w01-358-6910

FIRESTONE w013586910

FIRESTONE w01/358/6910

CONTITECH FD 200-19 320

CONTITECH FD200-19 320

CONTITECH FD 200-19 /320

CONTITECH fd 200-19 320

CONTITECH fd200-19 320

CONTITECH fd 200-19/320

GOODYEAR 2B9-200

GOODYEAR 2b9-200

GOODYEAR 2B9-202

GOODYEAR 2b9-202

GOODYEAR 2B9-216

GOODYEAR 2b9-216

GOODYEAR 578423202

GOODYEAR 578 423 202

TRIANGLE 6325

TRIANGLE 4320

TAURUS KF218-6910

TAURUS KF 218-6910

Brake&Wheel M3501

Dina A812719

Dina AZ812719

Dayton 3546910

Leland Sc2011

Navistar 554783C1

Hendrickson S8768

Hendrickson 458433

Ridewell 1003586910C

SAF Holland 57006910

Trailers De 133128

Tuthill 1371

Watson&Chalin AS-0001

Watson&Chalin AS-0156G

Technical Parameter

Cover Plate

Top Cover Plate Diameter:160mm

Bottom Cover Plate Diameter:160mm

Air Inlet

1/4 NPTF

Blind Nut

Screw Center Distance Of Top Cover Plate:89mm

Screw Center Distance Of Bottom Cover Plate:89mm

Screw And Gas Hole Distance Of Top Cover Plate:44.5mm

Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC

Rubber Bellow

Rubber Bellow MAX Diameter:251mm

The Working Stroke:MAX 260mm to MIN 75mm

Maximum Height:260mm

Minimum Height:75mm

Compression Height:185mm

What is the purpose of an air spring?


An air spring is basically a column of air confined within a rubber-and-fabric container shaped like a bellows. The spring action results from the compression and expansion of the air. When used on road vehicles, air springs can keep the vehicle at a constant standing height regardless of load.

Product Picture

2B9-200 Goodyear Air Spring Firestone W01-358-6910 Convoluted Rubber Bellows2B9-200 Goodyear Air Spring Firestone W01-358-6910 Convoluted Rubber Bellows
