Specifications
Brand Name :
GUOMAT
Model Number :
1B6375
Certification :
ISO/TS16949:2009
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
2-8 work days
Packaging Details :
strong carton box or as customers need
Material :
Rubber Steel
FIRESTONE :
W01-358-7460
Warranty :
12 Months
Weight :
1.6 kg
Other name :
industrial Firestone air shock
Pressure Ability :
0.2-0.8 M Pa
CONTITECH :
FS200-10
Rubber Bellows :
W01-358-0118
Description

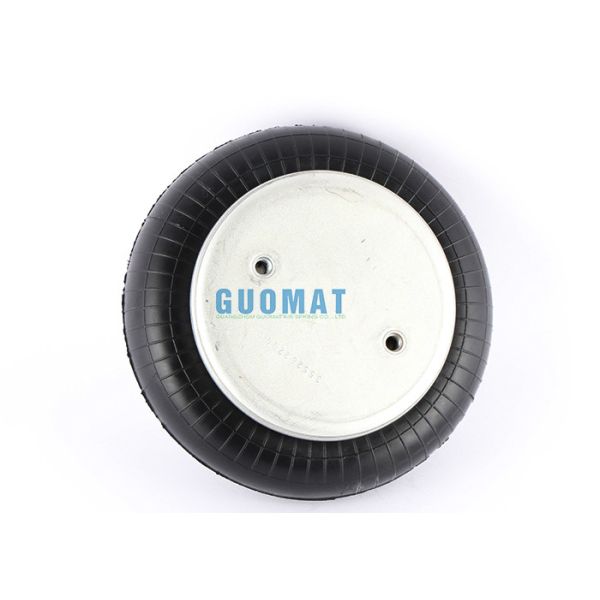

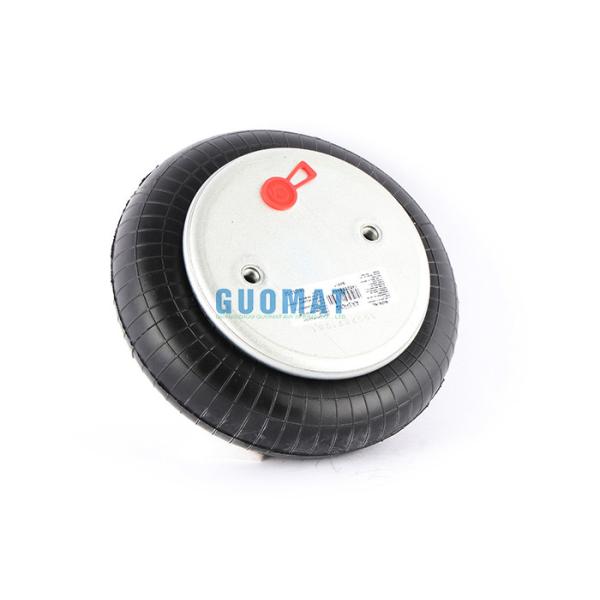

W01-358-7459 Firestone Industrial Air Spring With Rubber Bumper For BLOWER AND MOTOR

GUOMAT NO. 1B7459 Cross other OEM

GUOMAT Part Number:1B7459

Style 115 Two Ply Bellows

Blind nuts, 1/4 NPT rubber bumper
W01-358-7459;

Firestone Part Number:W01-358-7459

Firestone Part Number:WO13587459

Firestone Part Number:WO1-358-7459

Firestone Part Number:W013587459

Firestone Part Number:W01 358 7459

ContitechPart Number:FS 200-10 CI 1/4 NPT OS B

Contitech Part Number: FS200-10CI1/4NPTOSB

ContitechPart Number:FS 200-10 CI 1/4 NPT

Contitech Part Number: FS200-10CI1/4NPT

ContitechPart Number:FS 200-10

Contitech Part Number: FS200-10


W01-358-7459,W013587459,WO1-358-7459,WO13587459

GUOMAT NO. 1B7459 Product Description

Technical Data

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)

Screw Center Distance of Bottom Cover Plate : 89 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 or 3/4 NPT AIR INLET

Screw Center Distance Between Gas Hole and Nut : 44.5 mm

❸ Cover Plate

Top Cover Plate Diameter: 160 mm

Bottom Cover Plate Diameter: 160 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 257 mm

Rubber Bellows Natural Diameter : 220 mm

The Working Stroke : MIN 50 mm to MAX 140 mm

Maximum Height : 140 mm

Minimum Height :50mm

Stroke Height : 90mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :no One Pieces of Girdle Hoop

  • Min. pressure – 0 psi
  • Return force to min. height – <45LBF/200N
  • Overall Weight – 4.4LB
  • Min. Design Height – 2.01inch / 51MM
  • Inst.Space Required – 9.65inch / 245 MM
  • Max. Stroke – 3.9inch / 99MM

GUOMAT NO. 1B7459 VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
Force (load) F [lbf] 981 1,530 2,040 2,570 3,090 124
Spring rate c [lbf/in] 701 1,000 1,290 1,560 1,870 124
Natural Frequency f0 [Hz] 2.7 2.7 2.6 2.5 2.5 124
Design height H: recommended 4.53 inch, minimum 3.94 inch

GUOMAT NO. 1B7459 PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

Force F [lbf]
Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
H 4.50 in. 939 1440 1920 2430 2950 120
H 4.00 in. 1120 1690 2260 2850 3430 110
H 3.50 in. 1250 1880 2530 3170 3850 96
H 3.00 in. 1370 2050 2760 3460 4170 83
H 2.50 in. 1450 2170 2930 3640 4410 68

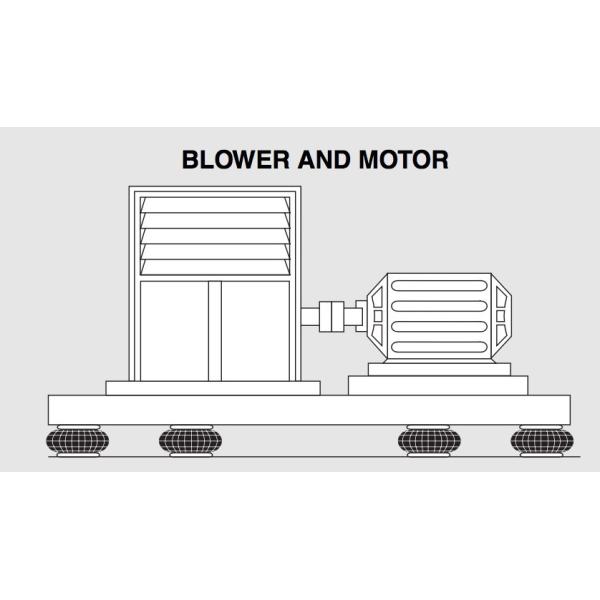

GUOMAT NO. 1B7459 air spring for BLOWER AND MOTOR:

W01-358-7459 Industrial Air Spring With Rubber Bumper For Blower MotorW01-358-7459 Industrial Air Spring With Rubber Bumper For Blower MotorW01-358-7459 Industrial Air Spring With Rubber Bumper For Blower Motor
