DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs
DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs
DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs
DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs
DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs
DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs
DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs
DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs
DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs
DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs
DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs
DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs
Specifications
Brand Name :
GUOMAT
Model Number :
1B6×1T
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
6X1
Origin :
Guangzhou
After-sales Service :
12 Months
Position :
Industrial Machine
Type :
Gas-Filled
Studs Type :
4×M10
Firestone :
W01-R58-4052
Rubber Bellow Max. OD. :
168 MM
Description

DUNLOP Air Suspension 6''×1 Flange Connection Air Actuator With M10 Studs

1B6×1T Features

Cover Plate
Top Cover Plate Diameter: 153 mm
Screw Center Distance of Top Cover Plate: 127 mm
Bottom Cover Plate Diameter: 153 mm

Screw Center Distance of Bottom Cover Plate: 127 mm
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth: 4×M10 studs
Bottom Cover Plate Screw(Nut) Tooth: 4×M10 studs
Gas Hole/Air Inlet/Air Fitting
Gas Hole: 1/2 BSP
Rubber Bellow
Rubber Bellow Max. Diameter: 168 mm
Minimum Height: 45 mm
Maximum Height: 90 mm


Other OEM Number

Fire-stone W01-R58-4052 ; W01R584052 ; W01 R58 4052
WO1-R58-4052 ; WO1R584052 ; WO1 R58 4052
Dunlop 6X1 ; 6''X1 ; SP1368 ; SP 1368
Contitech FS76-7 DS ; FS 76-7 DS
Norgren M/31062 ; M 31062 ; M31062

Single Convoluted Has Other Types

Part NO. Min. Heigh Max. Height Rubber Max. Dia Top/Bottom Cover Plate Dia
12''×1 50 mm 145 mm 330 mm 260 mm
10''×1 50 mm 135 mm 280 mm 210 mm
8''×1 47 mm 120 mm 230 mm 184 mm
6''×1 45 mm 90 mm 168mm 153 mm


Expert Guidance and Unparalleled Support
Rely on our team of experts to assist in finding the perfect 1B6×1T solution for your specific industrial needs. We're committed to providing professional guidance and ensuring your utmost satisfaction.

  • Reliability and Quality Assurance

Rest assured, each 1B6×1T purchased through us bears the hallmark of GUOMAT's unwavering reliability and uncompromised quality, ensuring authentic and top-notch industrial parts.

  • Customer-Centric Focus

Your satisfaction is our priority. As a GUOMAT reseller, we prioritize your needs and guarantee a seamless experience from purchase to delivery.

  • Order Your 1B6×1T Today

Join countless satisfied customers relying on our platform for their industrial parts and equipment needs across the world. Order your 1B6×1T today and experience the superior quality and reliability that only GUOMAT delivers.

FAQ

Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, etc.

Q: What's your advantage?
A: (1) Resonable price, good service
(2) Reliable quality, long working life
(3) Quick and safe modes of payment
(4) Ships items timely and quickly
(5) Our products are exported to most countries in the world

Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in good condition.
(3) Track and receive feedback from our customers.


Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs

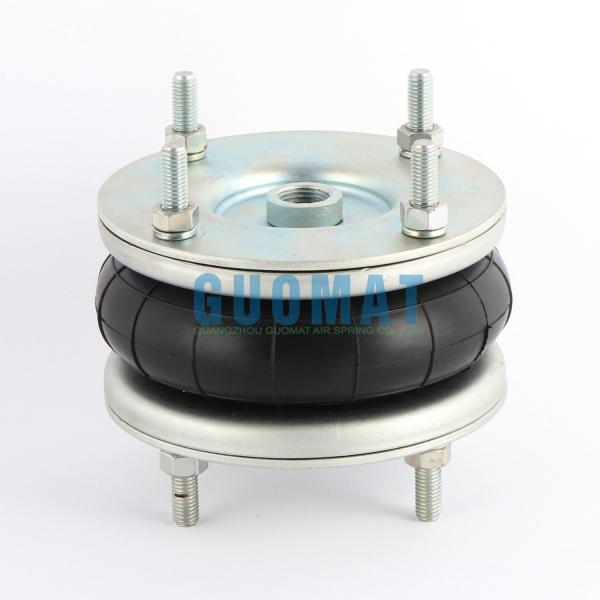

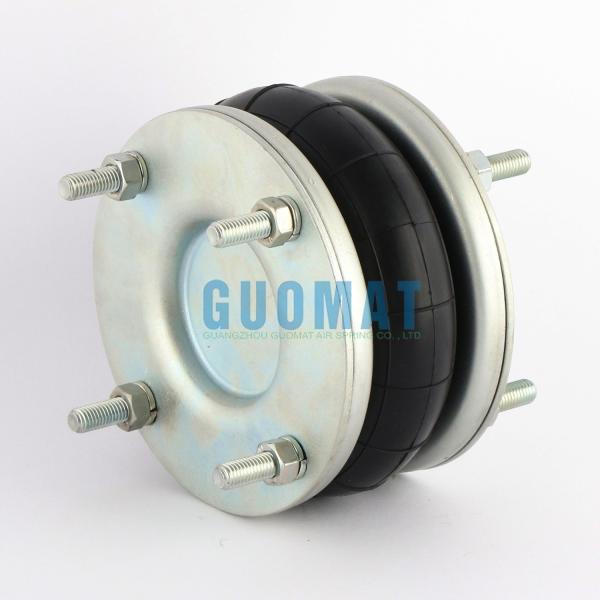

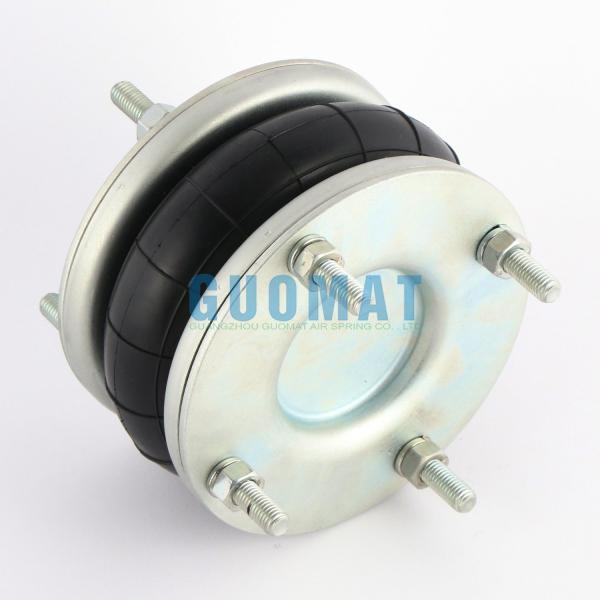

Product Images
DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 StudsDUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs
DUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 StudsDUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 StudsDUNLOP Air Suspension Spring 6''×1 Flange Connection Air Actuator With M10 Studs
