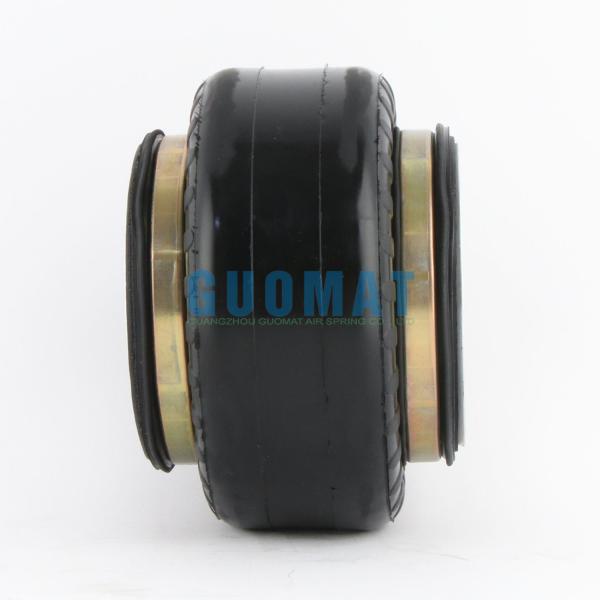

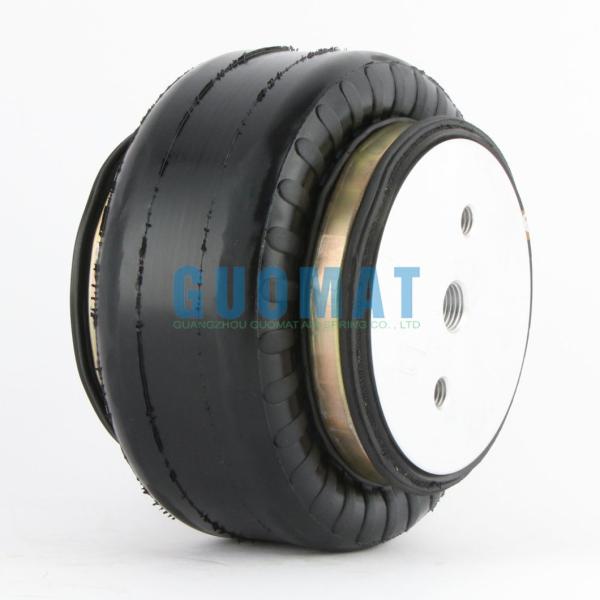

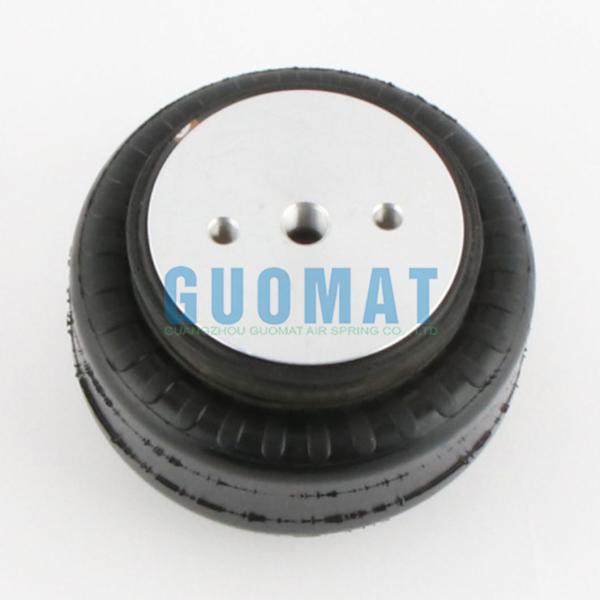

Goodyear Air Spring 1B5-510 For Trucks / Trailers Air Actuator Suspension

Product Specifications

• Goodyear #: 1B5-510
• Bellow Type: Single
• Automann Bellow #:
• Firestone Bellow #:
• Goodyear Bellow #: 579-91-3-501
• Contitech Bellow #:
• Triangle Bellow #:
• Bottom Plate/Pison Type:
• Top Plate Hole/Stud Qty: 2
• Top Plate Dia: 3.75
• Top Plate C to C Diameter: 1.75
• Bottom Plate Hole Stud Qyt: 2
• Bottom Plate Dia: 2.75
• Bottom Plate C to C Diameter: 1.75
• Bottom Plate Part #:
• Bottom Plate Alignment: Parallel
• Bumper: No
• Bracket:
• Min Height: 1.8
• Max Height: 4.8

Cross References

Detailed Technical Data Parameters

Applications

• Application of rubber air springs in lifting equipment

Traditional lifting equipment uses cylinders or hydraulic cylinders to lift objects, which require large installation space, are difficult to manufacture, heavy, prone to leakage, and inconvenient to repair. After using rubber air springs as lifting elements of lifting equipment, the traditional shortcomings of lifting equipment are overcome, no maintenance is required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.

• Application of rubber air springs in vibration reduction equipment

The advantages of high-frequency vibration isolation, sound insulation and low self-vibration frequency of rubber air springs can better achieve vibration isolation and ensure the safety and stability of the base and control system of the vibration equipment. Therefore, rubber air springs are widely used in equipment such as vibration isolation of vibrating screens and vibration reduction of luxury vehicle seats.

• Other uses of rubber air springs

Using rubber air springs as vibration reduction bases can effectively protect precision equipment from damage during transportation, such as the transportation of missiles and control launch devices. Using rubber air springs as support tools, taking advantage of their light weight and easy operation, it is convenient for the maintenance of field vehicles and equipment, etc.

FAQ

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
