Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
Specifications
Brand Name :
GUOMAT
Model Number :
1B70-7
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangdong, China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
1B70-7
Manufacturer :
GUOMAT
Type :
Gas-Filled
Cross References :
SP 1 B 05
Material :
Rubber+Stainless
Air Hole :
G 1/4
Nuts Type :
2×M8×1.25
Sample :
Available
Description

Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator


The detailed Specifications and techical data

The Max. Diameter 165mm
Air hole/air inlet 1/4 N P.T.F.
Working stroke maximum 115 mm to minimum 50 mm
Top plate screw (nut) teeth 2 x M8×1.25
Bottom plate screw (nut) teeth 2 x M8×1.25
Bottom cover diameter 105 mm
Bottom cover diameter 105 mm
Screw center distance 44.5 mm
The air hole distance between the nuts 22.25mm

OEM Number
Contitech FS 70-7
Contitech FS707
Contitech FS 70 7
Phoenix SP 1 B 05
Phoenix SP1B 05
Phoenix SP 1B05
Bos ch 822419002
Fes to EB-165-65
Fes to EB 165 65
Fes to EB16565
Weforma WBE 200-E1
Weforma WBE 200E1

The competitive advantage of the product

1. The product quality is excellent, natural rubber imported from Thailand, combined with German technology.
2. For products with the same price in the market, Gaomat strives for better quality. For products of the same quality, Gaomat strives for lower prices.
3. More than ten years of production technology, products cover the world.

The reason why choose us?

First of all, variety of products and high quality. We have We have hundreds of models to meet your needs. And our products have passed ISO/TS16949, ISO9001 certification, reaching international standards, with high quality. Secondly, respond promptly. We generally reply within one day. Last but not least, good after-sale service.Good after-sale service. Customer satisfaction is our greatest pursuit. Once the product has any damage or quality problem, please advise us and we will replace it.


FAQ

1. What is your payment term?
We normally do FOB, CFR, CIF, DDP, DAP, EXW.

2. I can not find out the products what I want from your website,can you offer the items I need?
Sure. One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.

3. How long is the Warranty?
One Year.

4. Can I get one sample to check the quality?
Of coure. You can order one sample first and then decide to place a large order or not.

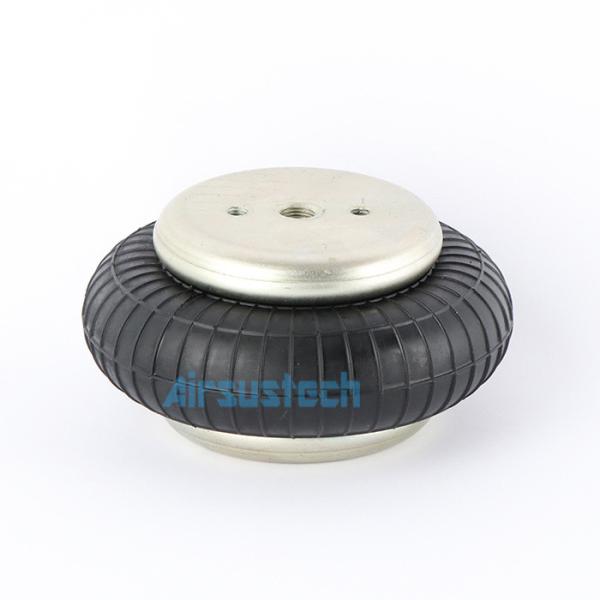

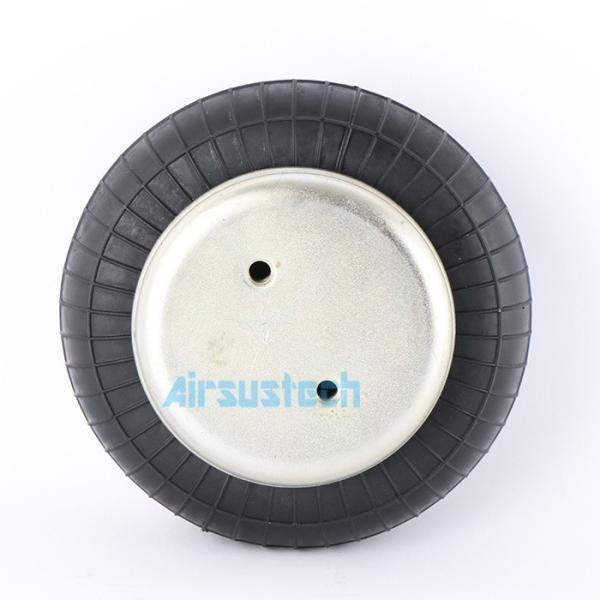

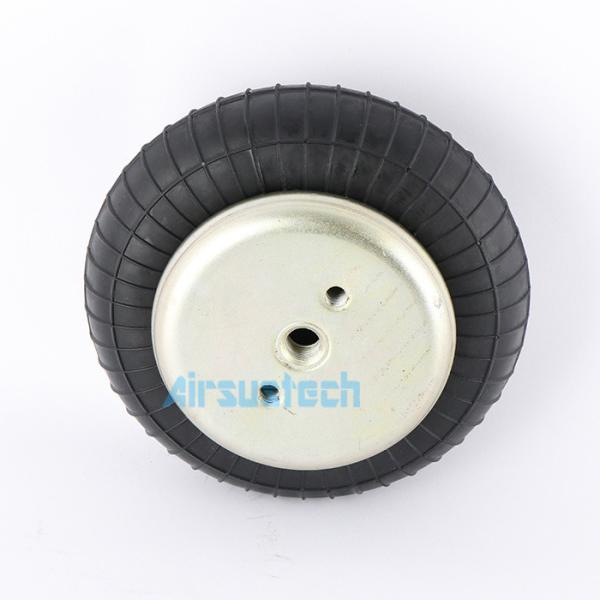

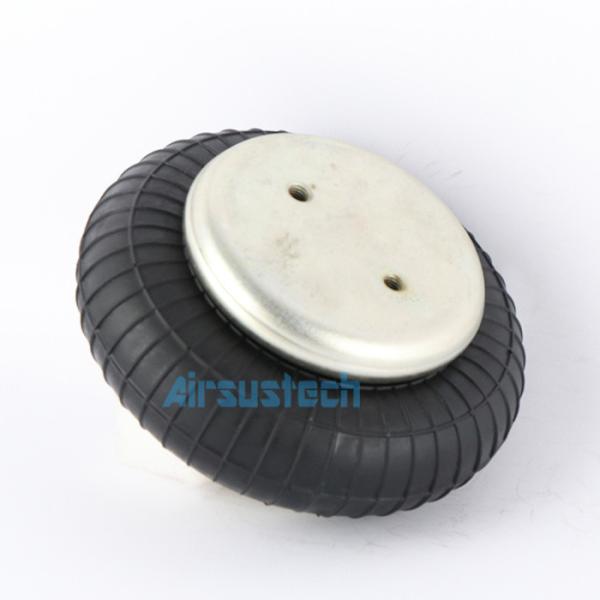

The related picture
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows ActuatorContitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator

Factory workshop
Contitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows ActuatorContitech FS 70-7 Air Spring Rubber Style G1/4 Gas-filled Bellows Actuator
